GUIDE TO INSTALLATION AND OPERATION
3DX-3901 | 11
All data is bypassed except VPID packets describing 3G signals. If the output is set to 3G Lvl B DS, then a new
VPID is generated.
Input Select section
Input Format: Use the pulldown to select from among these options:
• Single Link HD – Selects input 1 for processing and ignores input 2
• Dual Link HD – Both inputs 1 and 2 are selected for processing
• 3Gbps Lvl B - DS – Selects the 3G Level B Dual Stream signal connected to input 1 for processing and
ignores input 2
Display Format: This pulldown is only active when the Input Format is Single Link HD. Use the pulldown to select
from among these options:
• Full – Input signal does not have any inherent side-by-side or over-under structure.
• Normal Side by Side – Input signal is composed of 2 images, one on the left and one on the right.

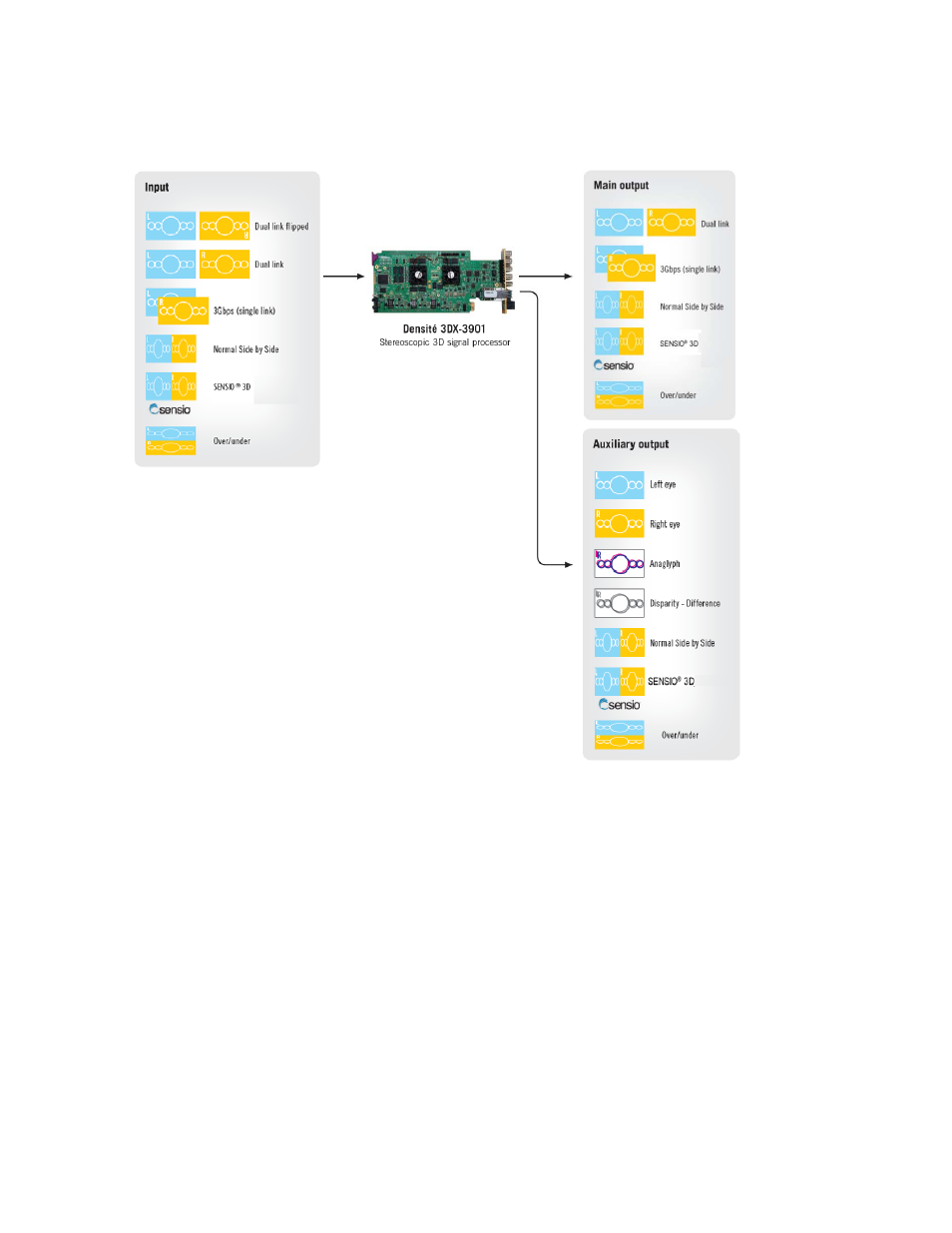

Figure 3.4 Overview of Input and Output formats
