GUIDE TO INSTALLATION AND OPERATION
3DX-3901 | 25
3.4.8 The Alarm Config panel
This panel allows the alarm reporting of the 3DX-3901 to be configured. The panel opens in a new window when
the button is clicked, and can be resized if needed.
The panel is organized in columns.
Status/Name
This contains an expandable tree listing all the alarms reported by this 3DX-3901 card.
• Each alarm name includes an icon that shows its current status
• Some alarms may be text-only and the alarm status is shown in the name and not by a status icon
The Card LED, Overall alarm and GSM contribution columns contain pulldown lists that allow the level of
contribution of each individual alarm to the alarm named in the column heading to be set.
• Click on the alarm icon in the column to open the list for an alarm
CARD LED
This column allows configuration of the behavior of the 3DX-3901’s card-edge Status LED. The Card LED status
is shown at the bottom of the alarm tree in the Status/Name column.
Overall Alarm
This column allows configuration of the contribution of each individual alarm to the Overall Alarm associated with
this card. The Overall Alarm is shown in the upper left corner of the iControl panel, and also appears at the
bottom of the Status/Name column.
GSM Contribution
This column allows configuration of the contribution of each individual alarm to the GSM Alarm Status associated
with this card. GSM is a dynamic register of all iControl system alarms, and is also an alarm provider for external
applications. The possible values for this contribution are related to the Overall alarm contribution:

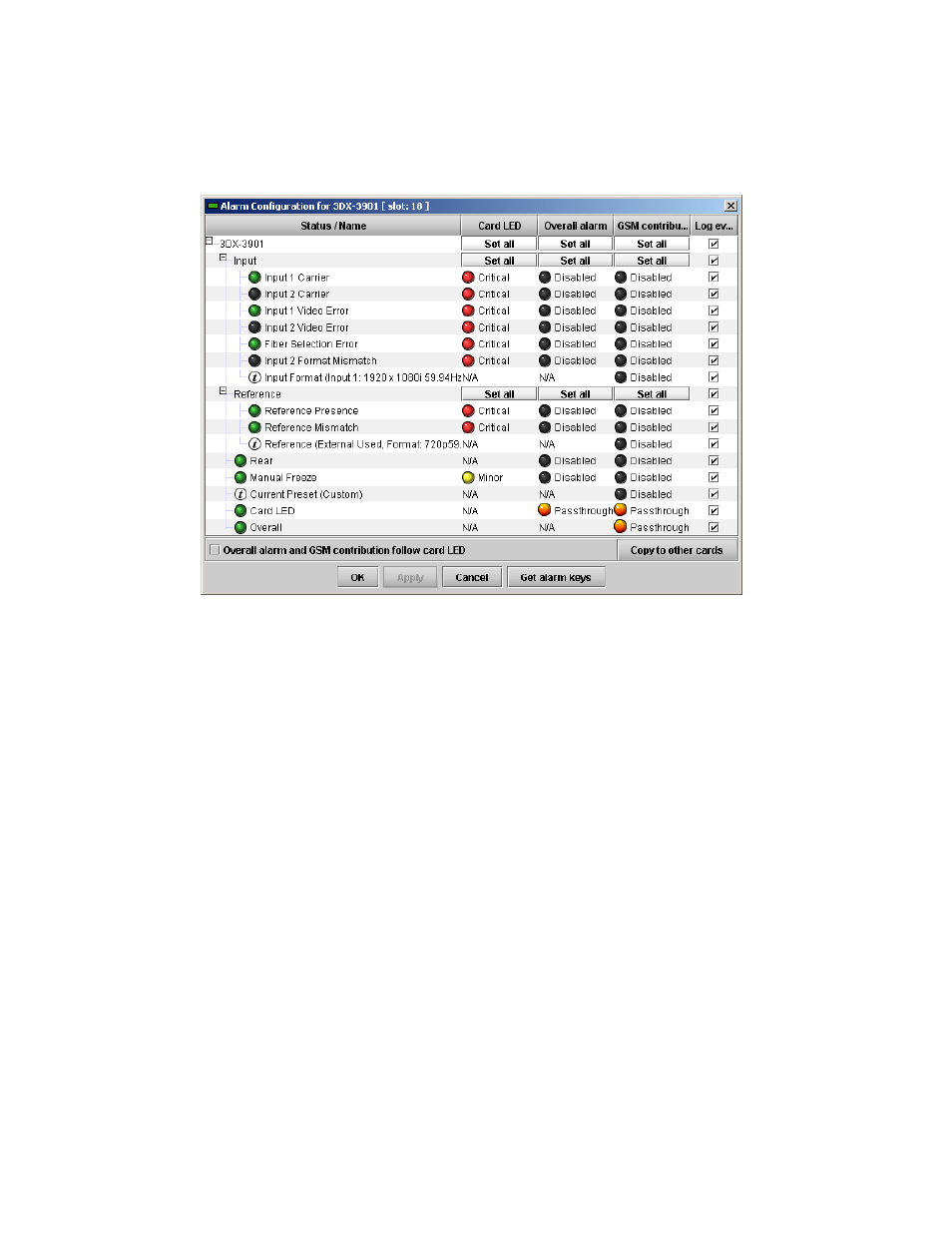

Figure 3.24 Alarm Configuration Panel
