Page 28: Reference and timing set up 2.4.1, Basic signal processing, Adjustment procedure for hd timing
28
LDK 4410 + LDK 5420 3G Fiber Transmission System User’s Guide (v1.0)
Chapter 2 - Base station
2.4 Reference and timing set up
2.4.1 Basic signal processing
The base station can be synchronized using HD tri-level or SD black burst references. Both

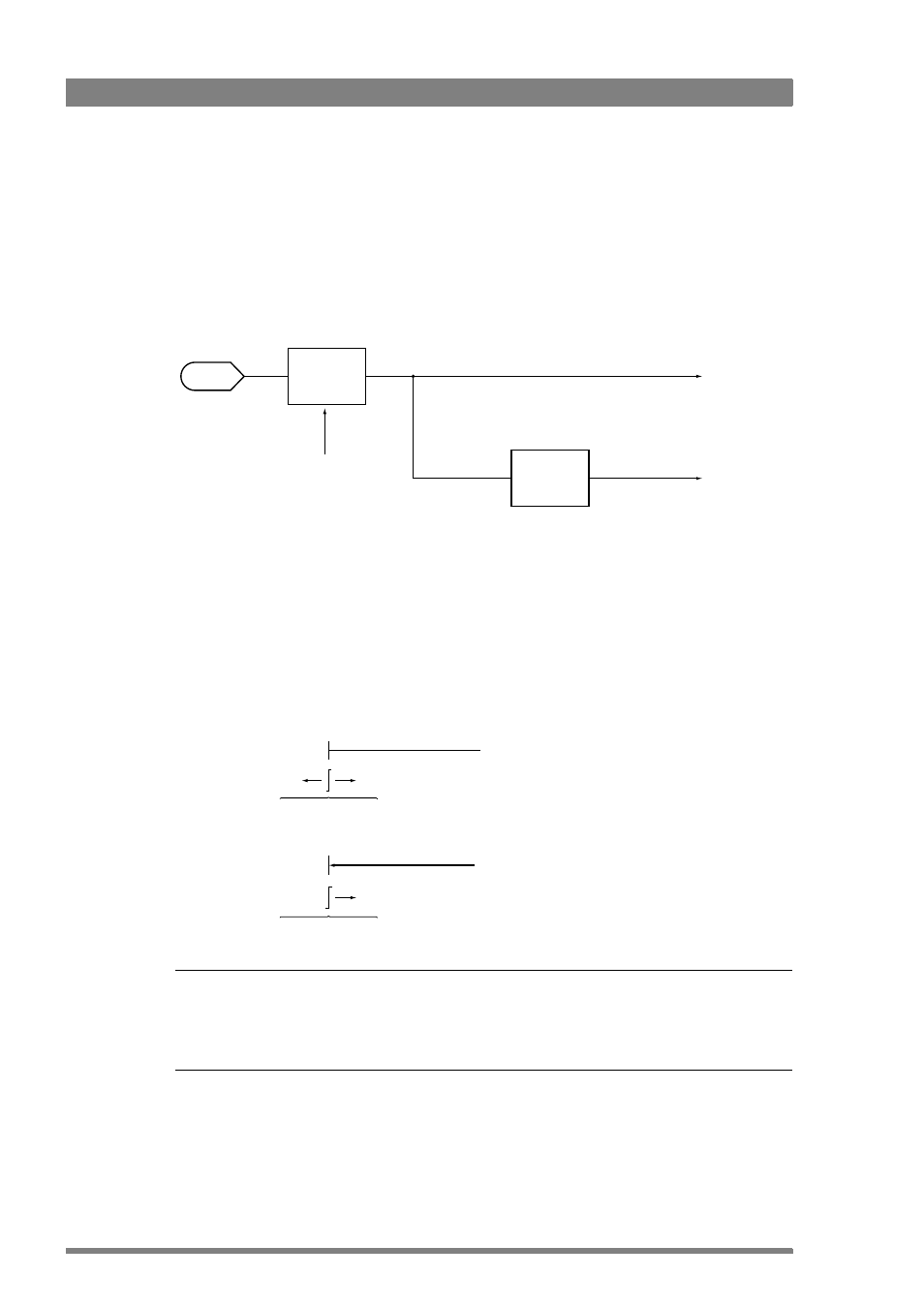

references can be adjusted to match the video output signals. This is an overview of the base
station output signal paths:
The default settings for the base station reference signals are:
•
The first reference is HD tri-level: the outputs are in time with the HD tri-level
synchronization.
•
The second reference is SD black burst: the outputs are in time with the SD black burst.
2.4.2 Adjustment procedure for HD timing
Tip
✎
When HD tri-level reference is used, the HD output is in sync with the HD tri-level reference. A
timing offset can be set with the
SYSTEM > TIMING > H PHASE COARSE and H PHASE FINE
items of the base station menu.
Camera
Base station
processing
HD tri-level reference or
SD black burst reference
Scaler
HD > SD
HD output
SD output
t
0
t
0
HD output with HD
tri-level reference
HD output with SD
black burst reference
HD tri-level reference
H-phase range
H-phase range
SD black burst reference
