LDK 4410 + LDK 5420 3G Fiber Transmission System User’s Guide (v1.0) 33
Chapter 3 - Camera adapter
3.2 Controls and indicators

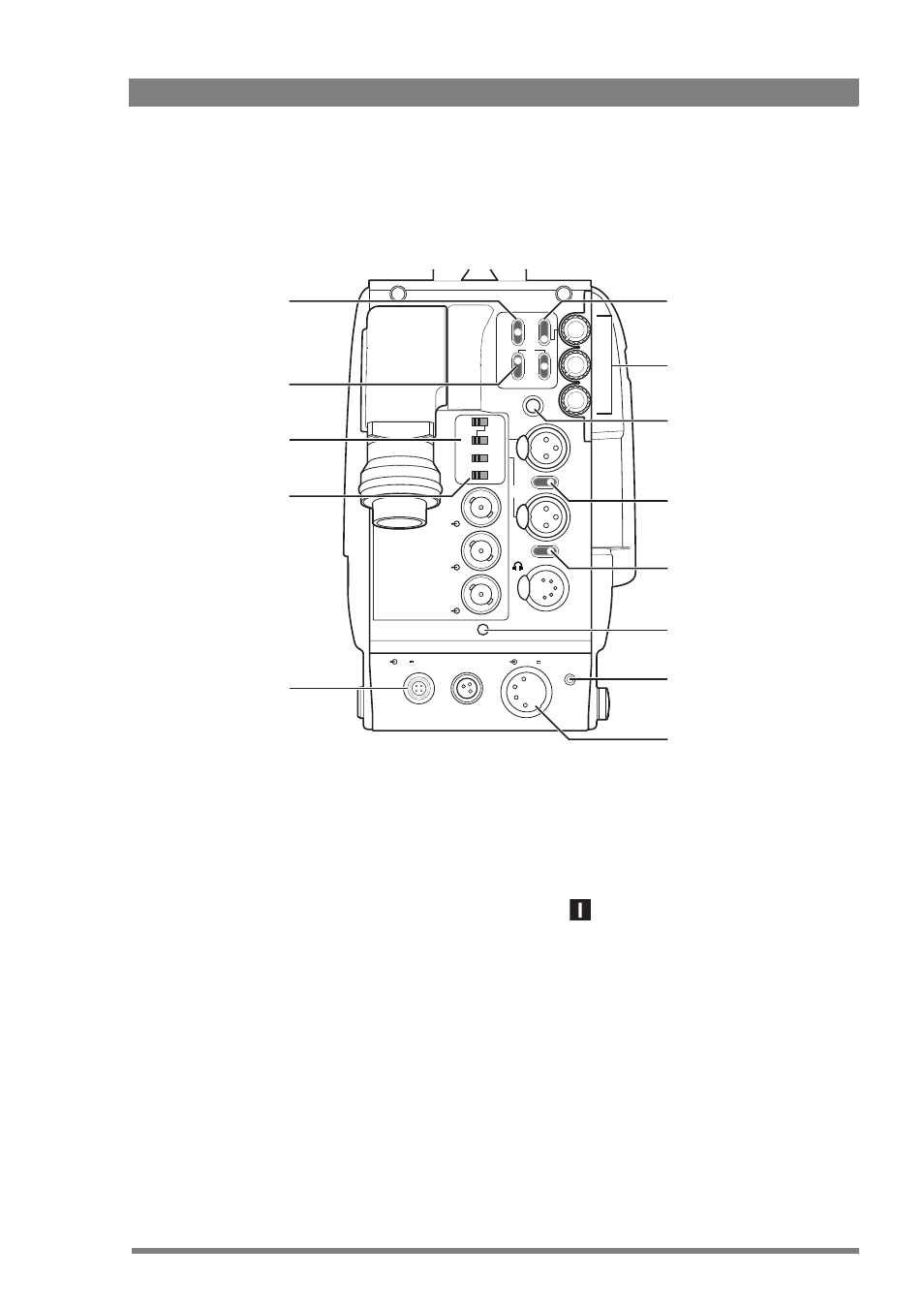

3.2.1 Overview
3.2.2 Power
The power supply for the camera and its adapter is normally supplied via the transmission
cable coming from the base station. The Power On indicator lights when power is supplied and
the camera power switch is set to the on position
.
When power is supplied via the transmission cable, an output power socket supplies 12 VDC,
1.5 A maximum for powering accessories.
It is also possible to operate the camera without a transmission cable by supplying a 12 VDC
supply to the DC input socket. The BATT indicator in the viewfinder lights if the camera supply
voltage is less than 11.5 VDC when using an external supply.
If excessive current flows in the camera or adapter, the circuit breaker trips and shuts off
power to all the units. If this happens check the units for faults and if necessary take corrective
actions before pressing the circuit breaker button to reset the power.
VF
HD-SDI (B)/VF
HD-SDI (A)
+48V
+48V
Mic.
Mic.
Line
Line
An.
VF AES
In
Front Rear
Mic 2
Call
Mic 1
Eng
Off
Prod
Front
Rear
Ext1
Ext2
Loc
Mix
Ext
Eng
Progr
Prod
VF
Power on
Script Light
Breaker
12V 1.5A max. 11-17V 5A
Intercom
routing switch
Headset production
volume control selection
Headset volume
controls
Call button
Microphone phantom
power switch
Power On
indicator
Circuit breaker
button
Viewfinder display
signal selection
Audio microphone
switches
VF connector signal
selection switch
(see “VF connector (+
digital audio)” on
page 72 for more
information about this
switch)
Microphone phantom
power switch
Power output
connector
Power input
connector
