68
LDK 4410 + LDK 5420 3G Fiber Transmission System User’s Guide (v1.0)

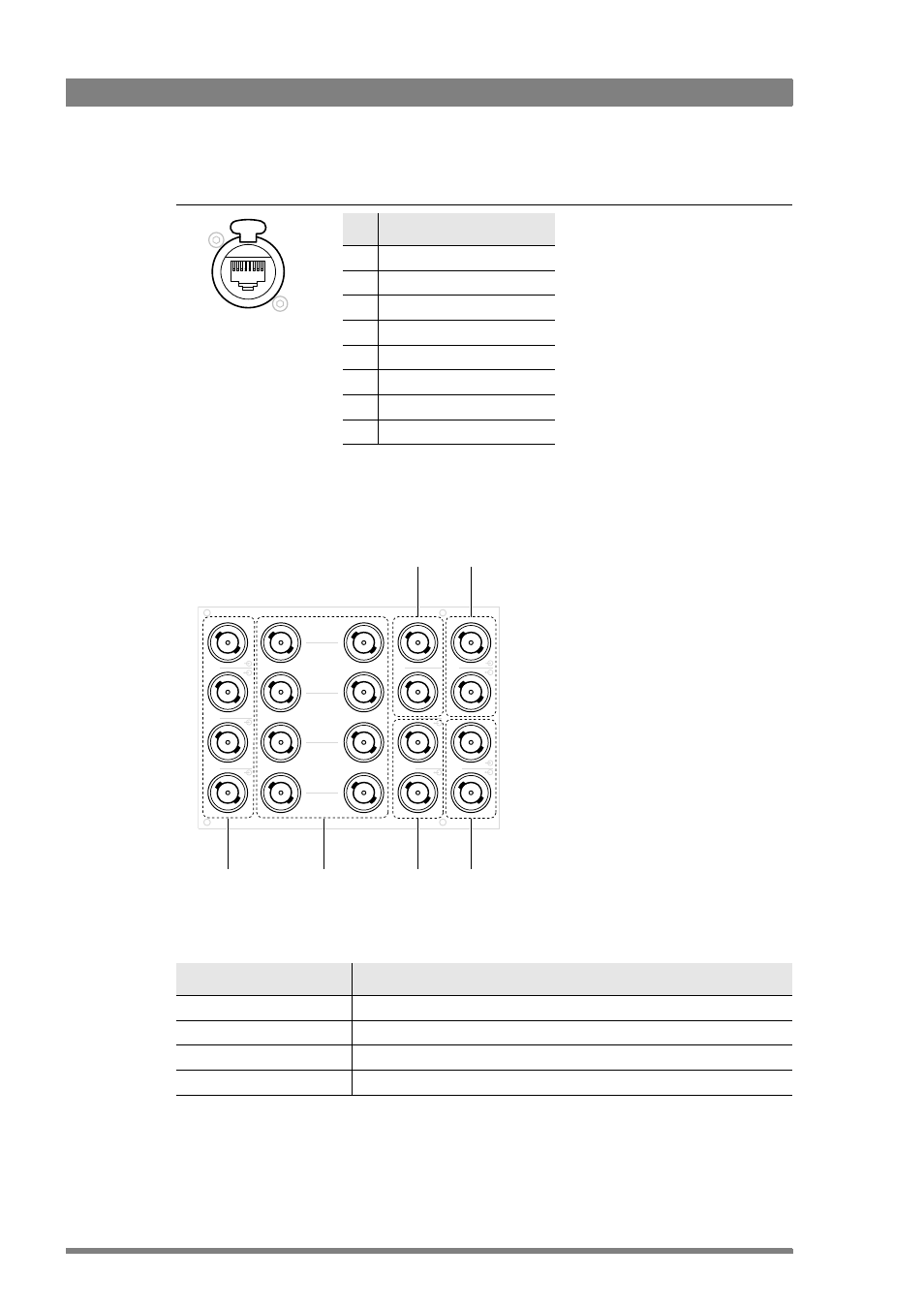

Chapter 6 - Connectors
Network connector
6.1.4 BNC connector board
External video input connectors
*) These signals are only available when the optional LDK 4531/30 High Quality SD board is
installed.
Pin Description
1
Transmit data + (TX+ )
2
Transmit data - (TX-)
3
Receive data+ (RX+)
4
no connection
5
no connection
6
Receive data - (RX-)
7
no connection
8
no connection
Ethernet 10Base-T, 100Base-TX
compliant with IEEE-802.3 (edition
2000)
8-pin standard
RJ-45 ethernet
connector
Connector
Signal
Ext 1-in
External 1 HD-SDI or SDI video input
Ext 1-out
External 1 HD-SDI or SDI looped-through signal
Ext 2-in
External 2 HD-SDI or SDI video input
Ext 3-in
External 3 HD-SDI or SDI video input
HD-SDI B
HD-SDI A
HD-SDI C
Live/Effect
SD-SDI
CVBS+Text
Monitoring
TP
REF
EXT1
EXT2
EXT3
1
2
External video
inputs
Main video
outputs
Monitoring
outputs
Reference
outputs
SD video
outputs *)
Teleprompter
in/out
