Tally/GPI/GPO
It comes with a wall mount adapter (EU and USA) for power supply with
5 V DC and 10 W maximum power. If required, ask your dealer for a dif-
ferent adapter.
You may also develop your own breakout box or simply connect the pins
that you need for your application.
GPI/GPO Interface
In the following you can see the pin assignment of the GPI/GPO connector
and how to connect the inputs and outputs of the interface.
GPI/GPO Connector
A pair of two pins of the GPI/GPO connector represents one input or one
output. The following table shows the corresponding pin assignments:

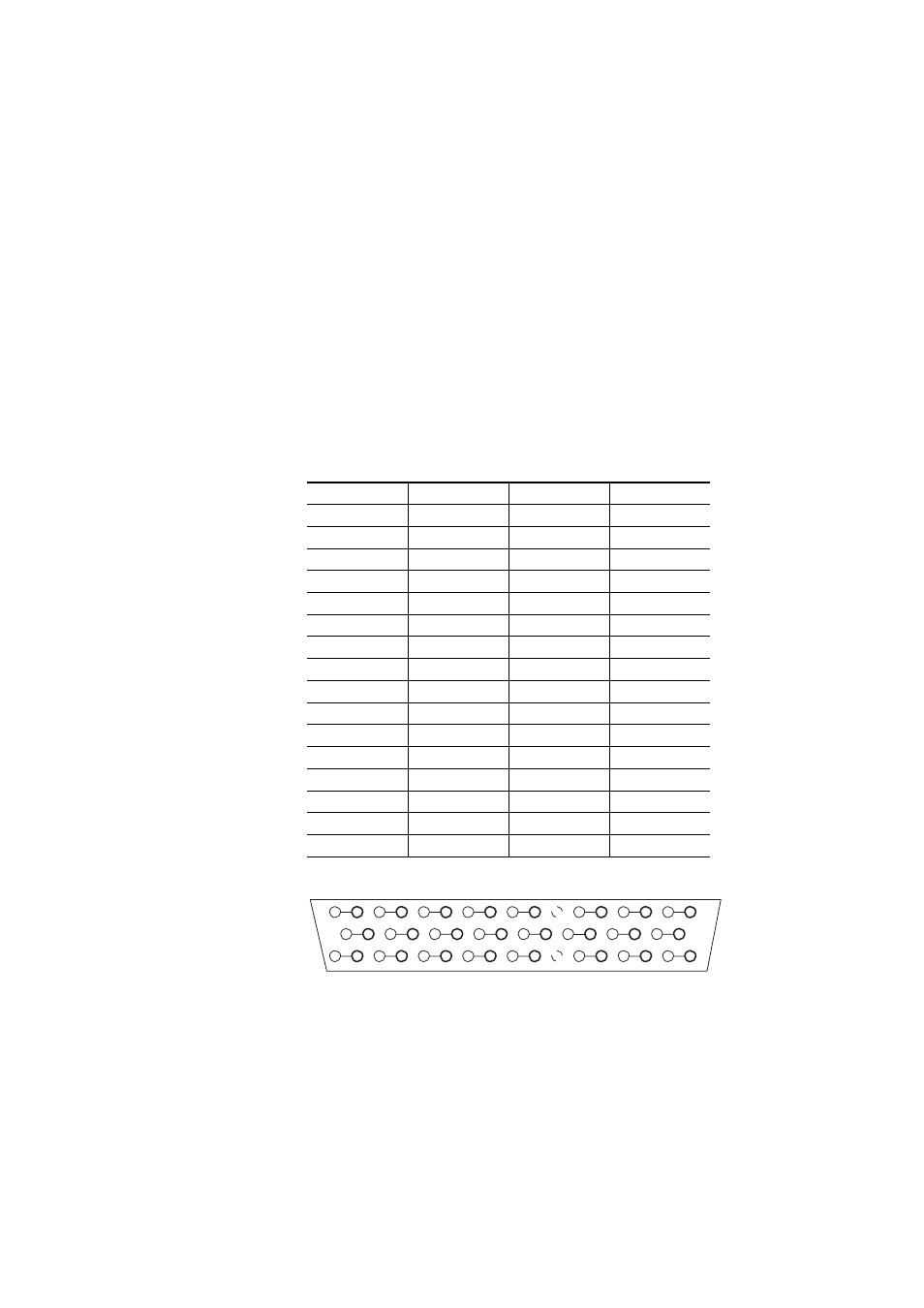

Figure 18. 50-pin Sub-D plug for GPI/GPO features
GPI Pins GPO Pins
1 1, 2 1 22, 23
2 18, 19 2 8, 9
3 34, 35 3 24, 25
4 3, 4 4 41, 42
5 20, 21 5 10, 11
6 36, 37 6 26, 27
7 5, 6 7 43, 44
8 38,39 8 12, 13
9 28, 29
10 45, 46
11 14, 15
12 30, 31
13 47, 48
14 16, 17
15 32, 33
16 49, 50
