Output Server 2 Channel Configuration
Selecting the Channel Resolution and Frame Rate
Selecting the Channel Resolution and Frame Rate
The resolution and frame rate for a channel is configured from the Channel tab of the
Output Server 2 user interface.
Note: If you are not using an external reference input into your SDI I/O card,
you must set the Reference and Frame Rate Family for the channel from the
I/O Device Controller user interface, otherwise Output Server 2 will start up
in an error state. See
Viewing the Output Server 2 Engineering Panel on
page 63.
To configure the Resolution and Frame Rate for an Output Server 2 channel:
1 Open the Output Server 2 user interface for the channel you want to configure, as
described in Accessing the Output Server 2 User Interface , on page 31.
2 Go to Configuration > Channel tab.

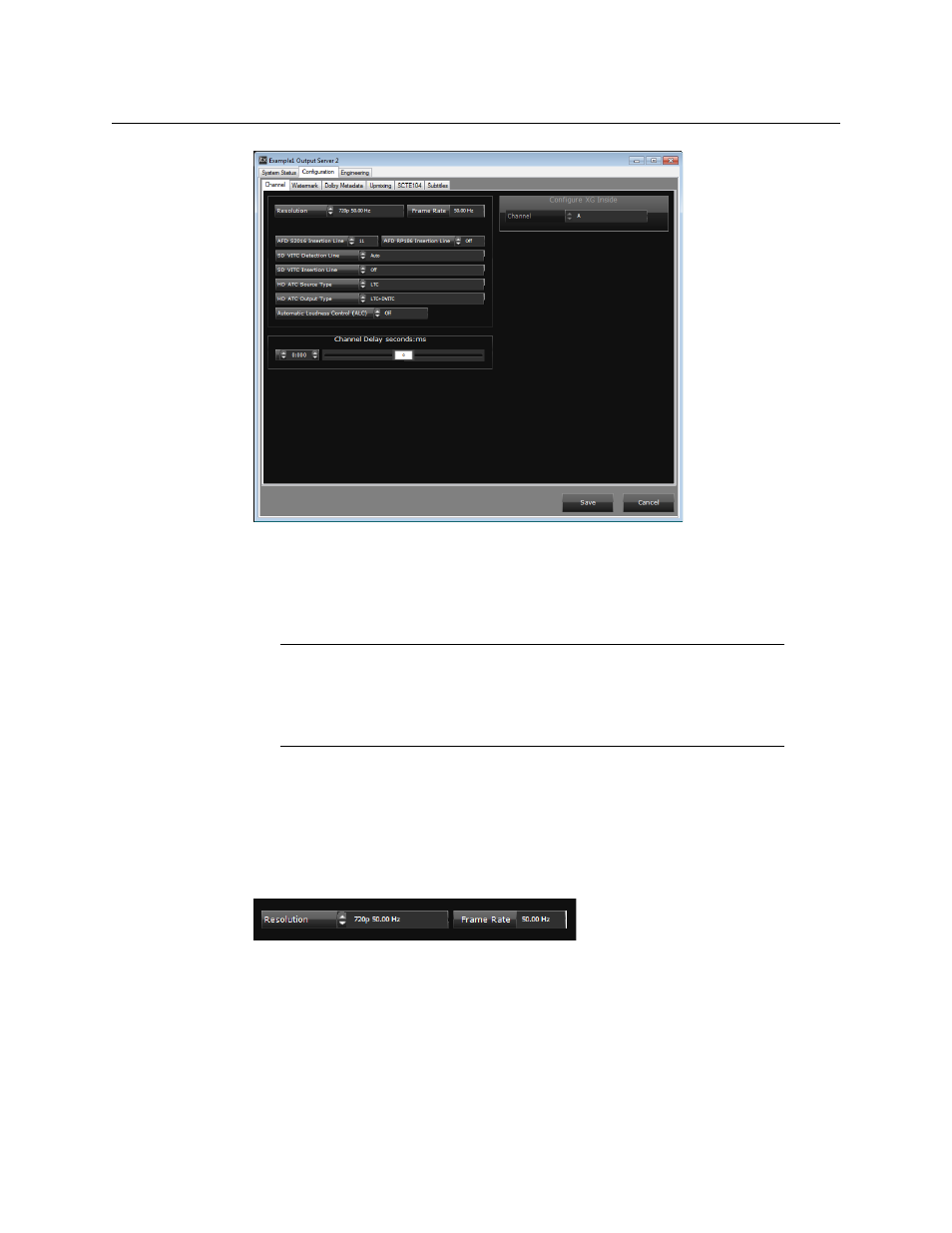

The channel configuration options appear. The Resolution and Frame Rate controls are
on the top left of the window.
3 Specify the Resolution (e.g. 720p) for the channel using the drop-down list.
4 The Frame Rate is determined by the Frame Rate Family setting I/O Device Controller
configuration and cannot be changed from Output Server 2.
5 Click Save to store your changes and automatically reboot the Output Server 2 service.
Alternatively, wait until you have finished making changes in other areas of the
Configuration panel, then click Save.
