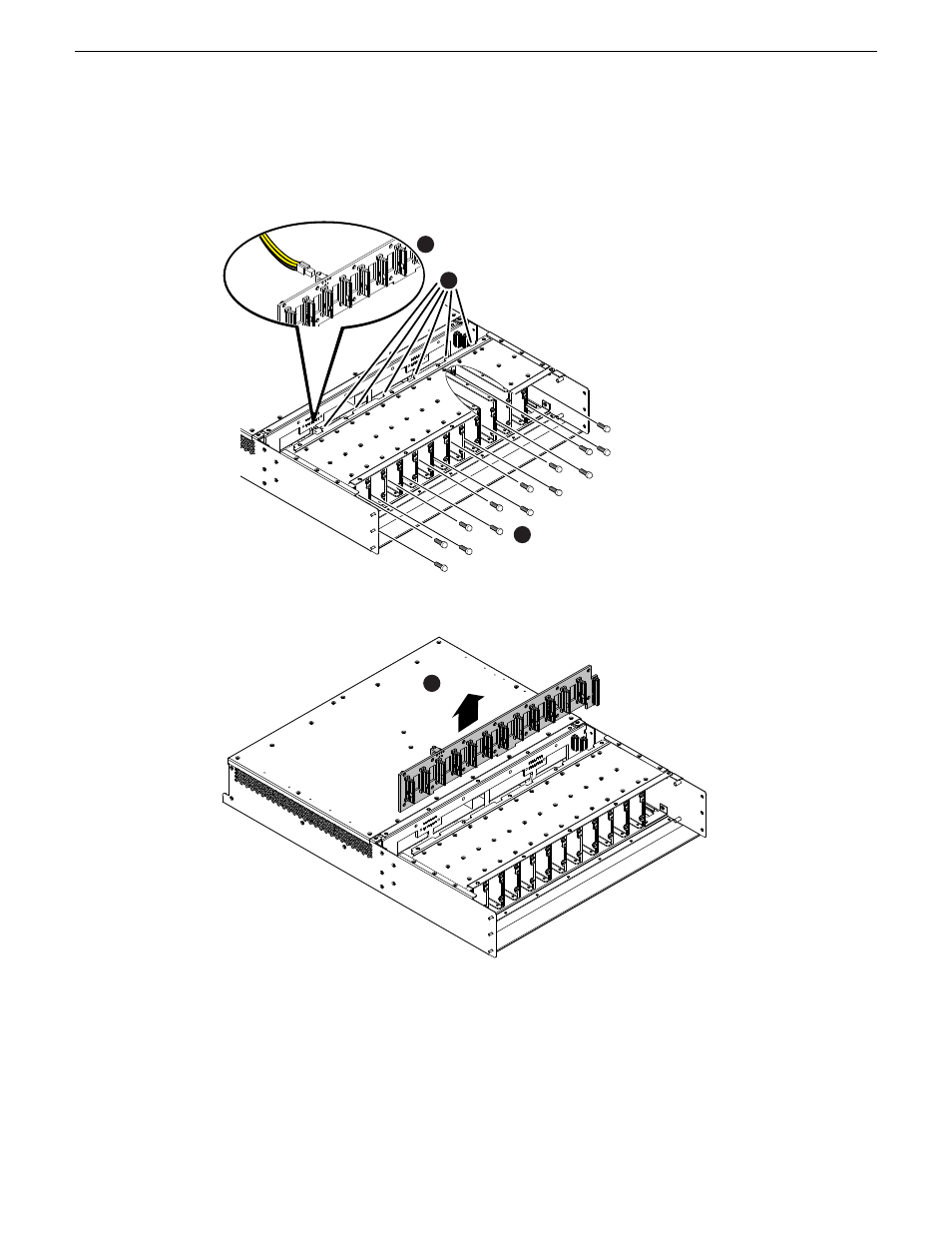

To remove the disk backplane unit, proceed as illustrated.
Remove 14
front screws 3
Disconnect cable 1
Locate notches to
identify screw positions 2
Lift out 4
02 February 2012 K2 Summit 3G Production Client Service Manual 107
Removing and replacing FRUs
