KARRERA — Installation & Service Manual 113
Engineering Setups
Source Definition Menu
The Eng Setup Source Definition menu is used to change source definitions.
Press the
Eng Setup button, then touch the Source Definition to display the

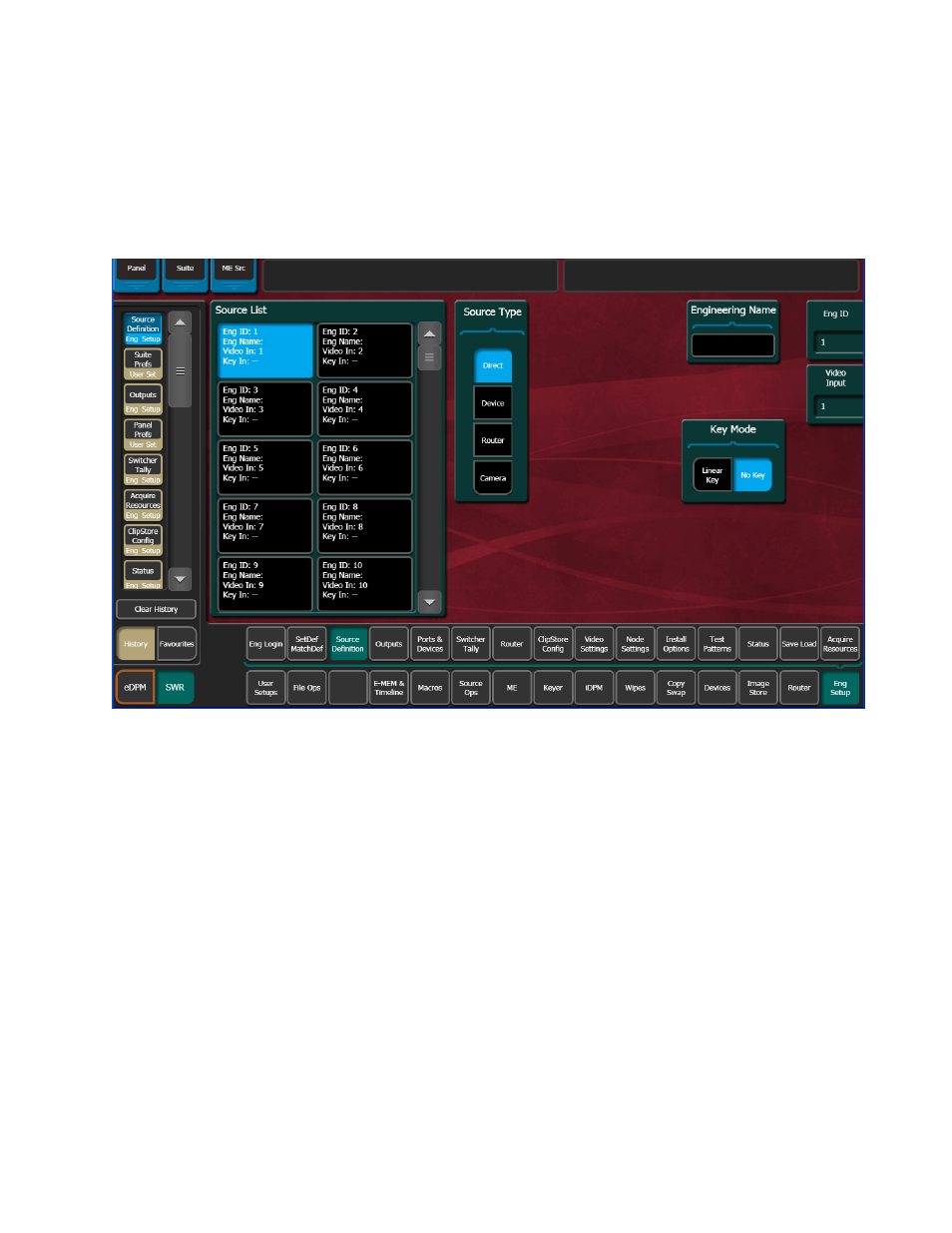

menu ( Figure 71 ).
Figure 71. Source Definition Menu
Direct Source Definition
To Change Direct Source Definitions:
1. Touch the button of the desired Source located on left side of the screen
(it is a vertical scrolling list).
2. Touch the Engineering Name data pad to name the source using the pop
up alphanumeric keypad or standard keyboard. Up to 30 characters can
be entered, but shorter names are recommended. See Source Naming
Background Information
on page 114 for more information.
3. Touch the Video Input data pad to enter or scroll to the input number of
the connector the source will use for video. The change is immediate
and can be viewed on a connected monitor.
Note The number of usable input connectors depends on the number of ME boards
installed in the Karrera Video Processing Frame (24 inputs per board).
