KARRERA — Installation & Service Manual
Section 5 — Basic Configuration

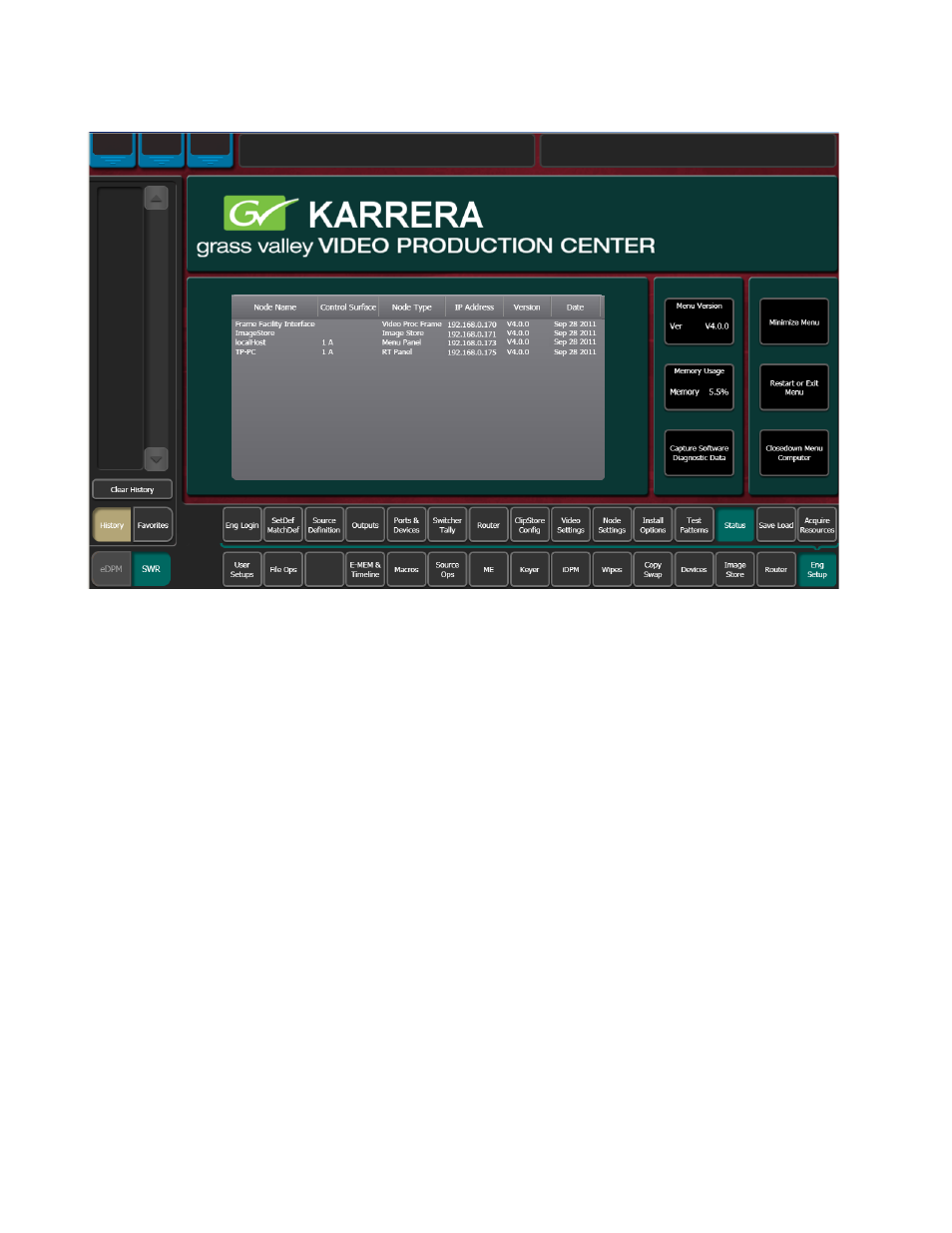

Figure 48. Eng Setup Status Menu
Default Karrera System Communications
Karrera systems ship with factory default settings that allow components
to communicate with one another when powered up, provided they are
connected properly). These Karrera components appear on the Status
Menu.
We recommend you use an isolated Ethernet network with your Karrera
system (to prevent possible IP address or network traffic conflicts), partic-
ularly when first setting up your system.
Establishing Menu to Frame Communication
If a Video Processor Frame is not found by the Karrera Menu application,
the Status Menu central window will be empty and a
NO FRAME COM
message will be displayed in the upper right Notification Area (
).
