132 KARRERA — Installation & Service Manual
Section 5 — Basic Configuration
Karrera Configuration
Configuring ClipStore as a Node
ClipStore must be configured as a node in the Eng Setup, Node Settings
menu before the Karrera system can communicate with the Summit/Solo
ClipStore server.
1. Verify there is a valid network connection.
2. Go to the Node Settings menu by touching Eng Setup , Node Settings , Frame
Suite Nodes & ID ( Figure 82 ).
3. Input a valid IP address for the ClipStore server by touching the
ClipStore IP Address data pad, typing the address, and touching Enter
( Figure 82 ).
4. Touch the Enable button ( Figure 82 ).
The Enable button allows communication between the Karrera and the
ClipStore server and highlights green indicating a proper connection.
Red will show no connection and yellow shows that some channels are
connected. For both red and yellow indications, ensure that channels
are in AMP mode and available for remote control. Other trouble-
shooting may be required.

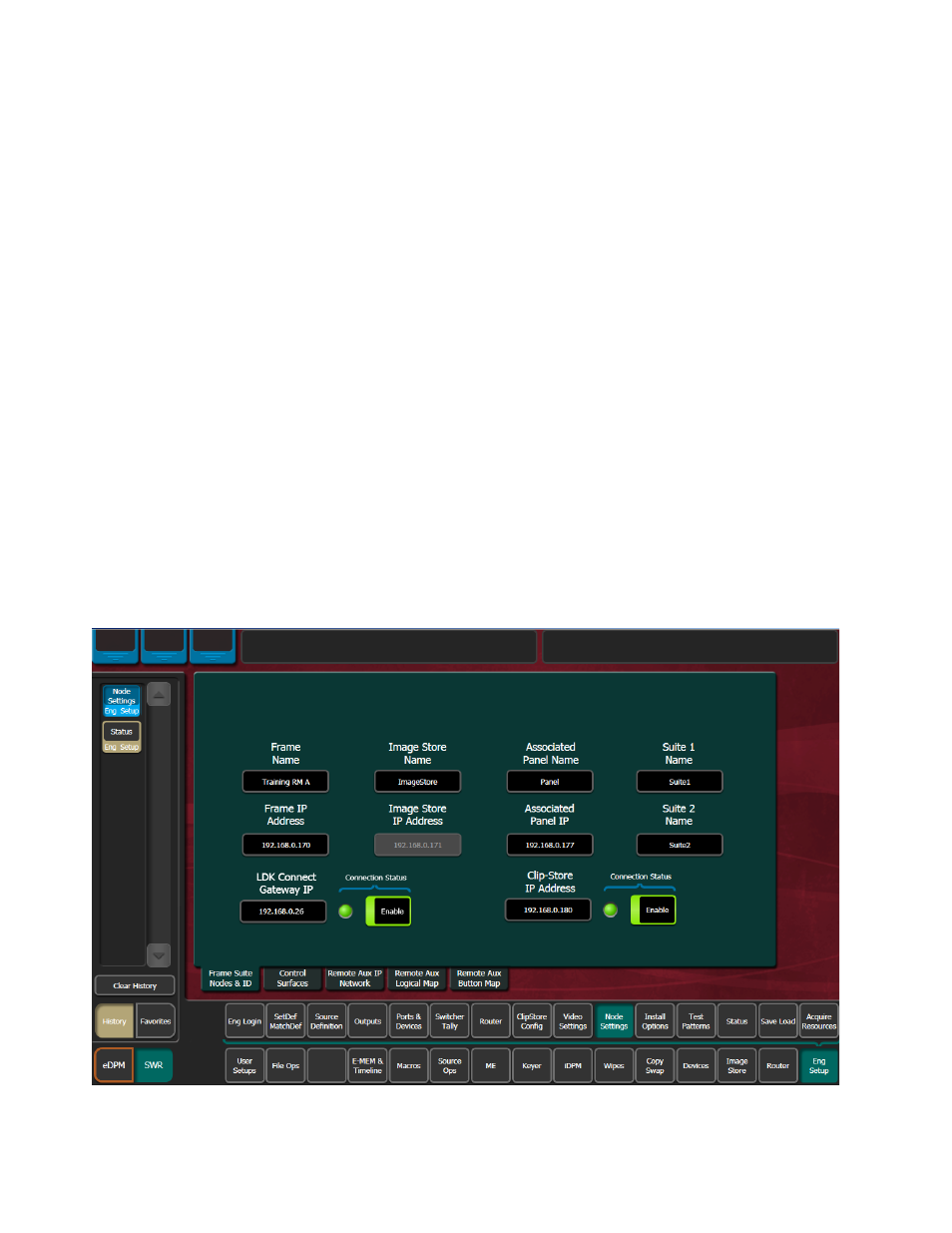

Figure 82. ClipStore Node Settings
