Appendix B
B-8 Profile Video File Server Installation
Reference Genlock D-Connector
The 25-pin male D connector on the Reference Genlock board provides eight
Longitudinal Time Code (LTC) interfaces (four input channels and four output
channels). The LTC Breakout cable with a DB25 connector on one end and eight XLR
connectors on the other can then be connected to the Reference Genlock 25-pin D
connector at the rear panel of the Profile. Figure B-7 shows the connector and
Table B-7 lists the pin-outs.

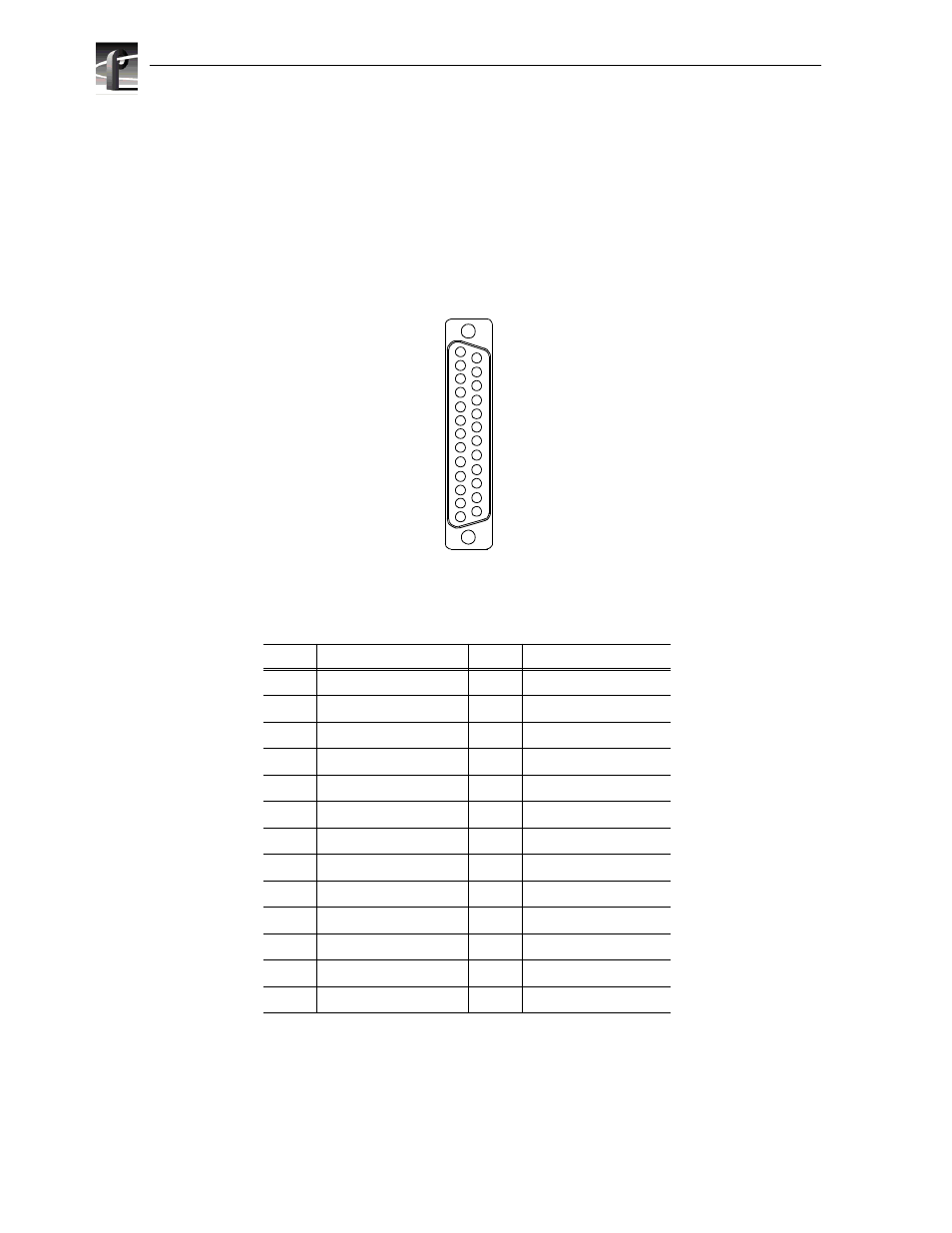

Figure B-7. Reference Genlock 25-pin Connector
Table B-7. Reference Genlock D-connector Pin-outs
Pin # Description Pin # Description
1 Ch 0 Input + 14 Ch 0 Output Common
2 Ch 0 Input - 15 Ch 0 Output +
3 Ch 0 Input Common 16 Ch 0 Output -
4 Ch 1 Input + 17 Ch 1 Output Common
5 Ch 1 Input - 18 Ch 1 Output +
6 Ch 1 Input Common 19 Ch 1 Output -
7 Ch 2 Input + 20 Ch 2 Output Common
8 Ch 2 Input - 21 Ch 2 Output +
9 Ch 2 Input Common 22 Ch 2 Output -
10 Ch 3 Input + 23 Ch 3 Output Common
11 Ch 3 Input - 24 Ch 3 Output +
12 Ch 3 Input Common 25 Ch 3 Output -
13 Power On Indicator
1
13
14
25
