Chapter 2 Mechanical Installation
2-14 Profile Video File Server Installation
Connecting Component Analog Video
The Profile Video File Server may include an Component Analog Video In board
which accepts a single source of component analog video input.
Figure 2-14 shows component analog video in cable connections for a typical
location, slot J13. Refer to the rear panel labels or Tables 1-2 through 1-6 in Chapter
1, pages 1-9 through 1-13, to determine the slot location of this board in your system.
To make connections to the Analog Component Video In board, refer to the example
in Figure 2-14 and:
1. Place an EMI gasket on the three BNC connectors as shown in Figure 2-6,
page 2-7.
2. Attach three BNC cables from an appropriate component analog video source to
the connectors.

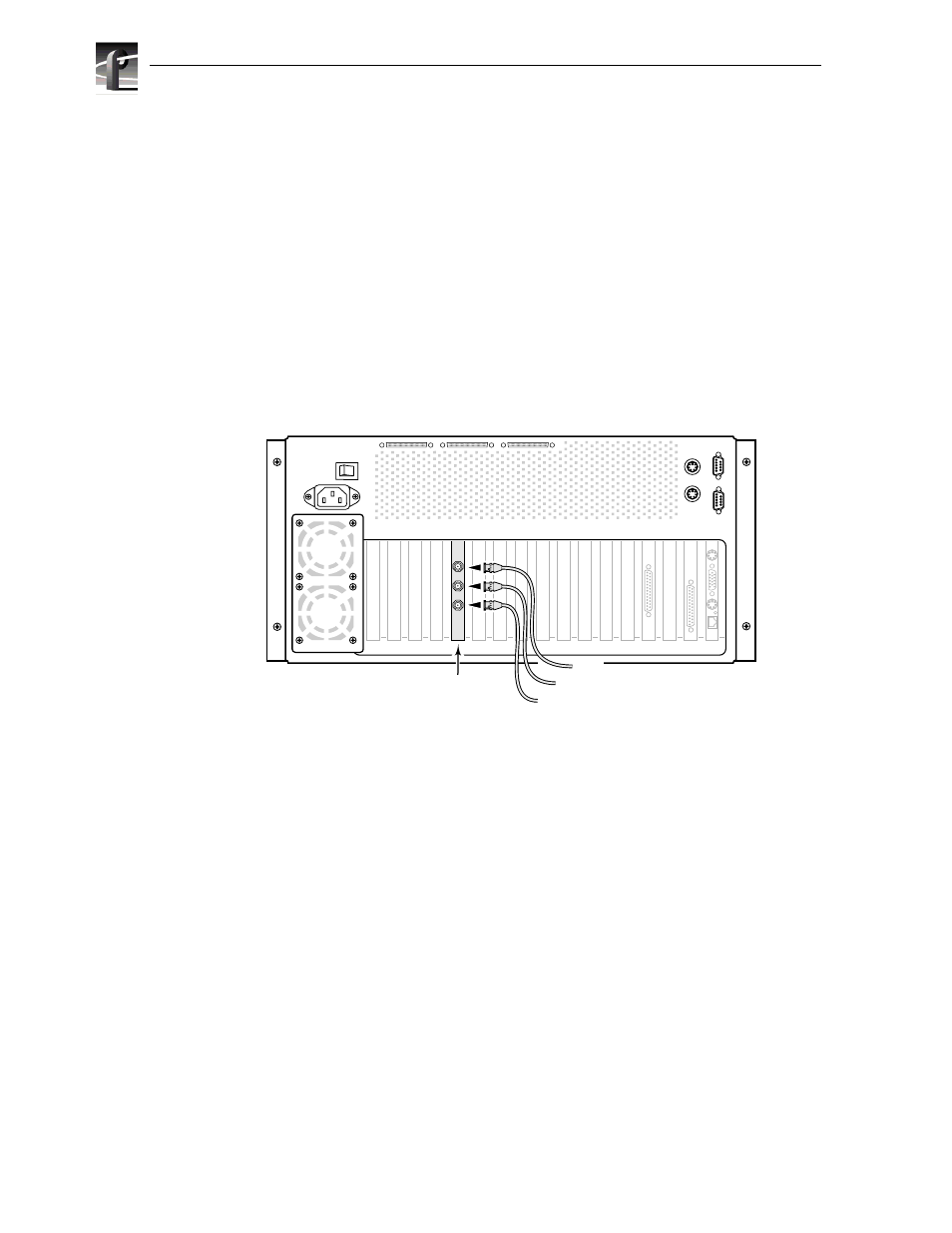

Figure 2-14. Analog Component Video In Cable Connections
J1 J17 J13 J16 J15 J14 J6 J7 J4 J3 J2 J5 J12 J11 J9 J8 J10
9676-57
Video In
Analog Component
Y/G
B -Y/B
R -Y/R
