2.5-M/E and 3-M/E Main Panel
DSK Subpanel
In both 2.5 and 3-M/E systems the DSK subpanel ( Figure 80 ) allows
control of the three DSK keyers. This subpanel works in parallel with the
DSK Keyers subpanel in a 2.5-M/E system.

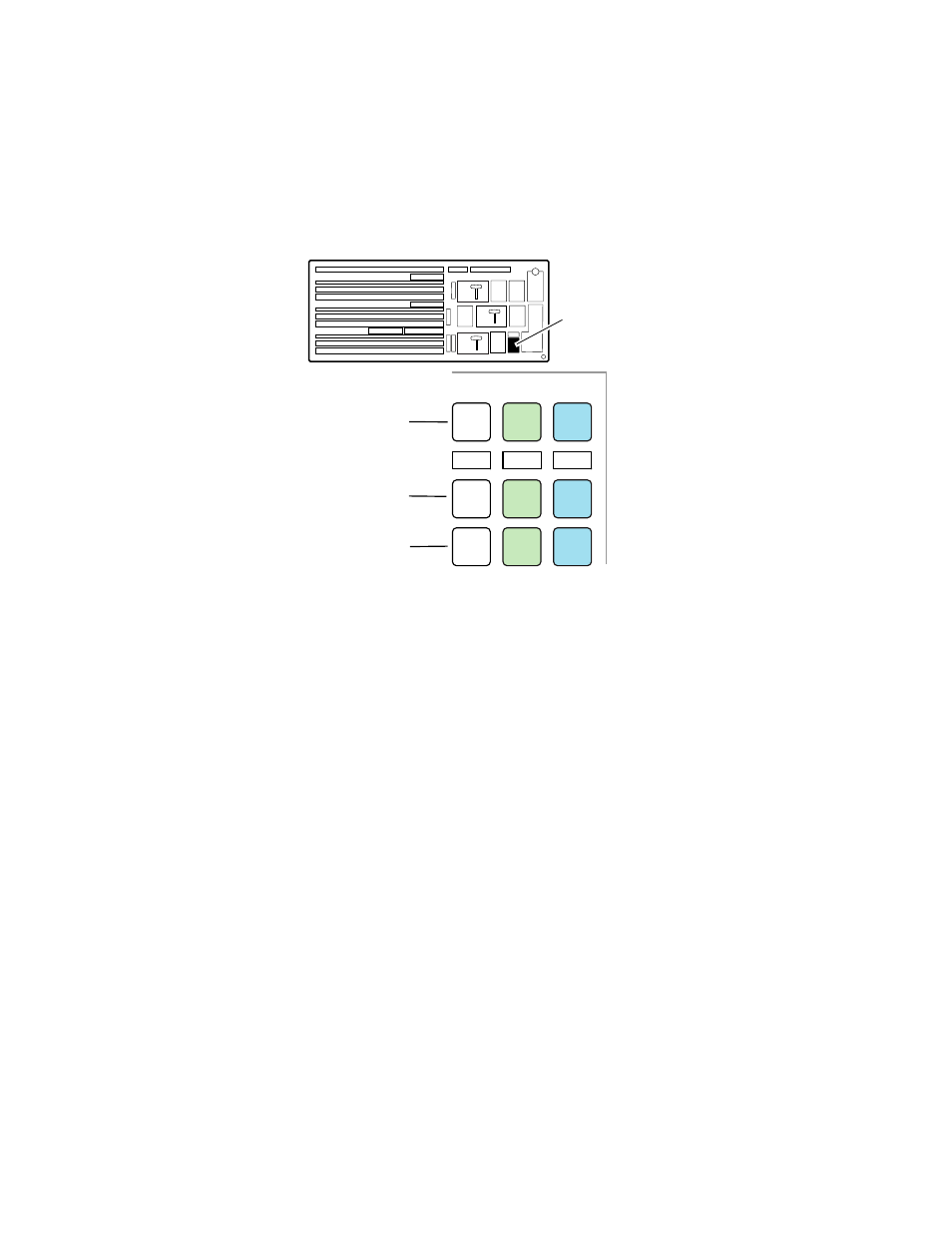

Figure 80. DSK Subpanel
Keyer Delegation Button Group
The DSK 1-3 buttons determine the next transition in the DSK or act as an
additional next transition button if a DSK Link is active is any of the M/Es
(3-M/E system only). They can also be used for Hold to Preview (see
below), and momentary delegation (see Momentary Delegation
on page 99 ).
Hold to Preview
When setting up a key, it is often desirable to see a key that is not on air or
part of the next transition. Holding down a
DSK 1-3 delegation button will
replace that preview output with a representation of that key over the
current background. User preference settings determine whether this
feature is enabled for these buttons, whether other on-air keys are shown,
and how long the preview lasts. The
Show Key button is also available to
view the actual key control signal. See Show Key Button on page 122 .
DSK Cut and Mix Button Groups
Two groups of DSK transition buttons, DSK Cut and DSK Mix, are pro-
vided to allow independent cut and mix of the DSK keyers.
On On On
1
DSK
2
DSK
3
DSK
DSK 1
Cut DSK 2
Cut DSK 3
Cut
DSK 1
Mix DSK 2
Mix DSK 3
Mix
DSK
8126_00_18_r0
DSK
Subpanel
DSK Mix
Button Group (3)
DSK Cut
Button Group (3)
DSK Key Delegate
Button Group (3)
