338 Zodiak — User Manual
Section 4 — Menus Overview
Preset Pattern
A preset pattern uses a wipe pattern generator, rather than an incoming
key cut signal to define the hole cut in the background. When
Preset Pattern
is chosen as the keyer mode, the menu will appear as in Figure 238 . When
the Pattern data pad is touched, the Wipe menu (see Wipe Menus on page 344 )
will come up to allow pattern selection.
The Preset Pattern may be matte-filled by touching the Matte Fill data pad.
The matte controls can be accessed by touching Matte Adjust . Opacity and
size of the preset pattern can also be adjusted with the soft knob controls
on the right of the screen.

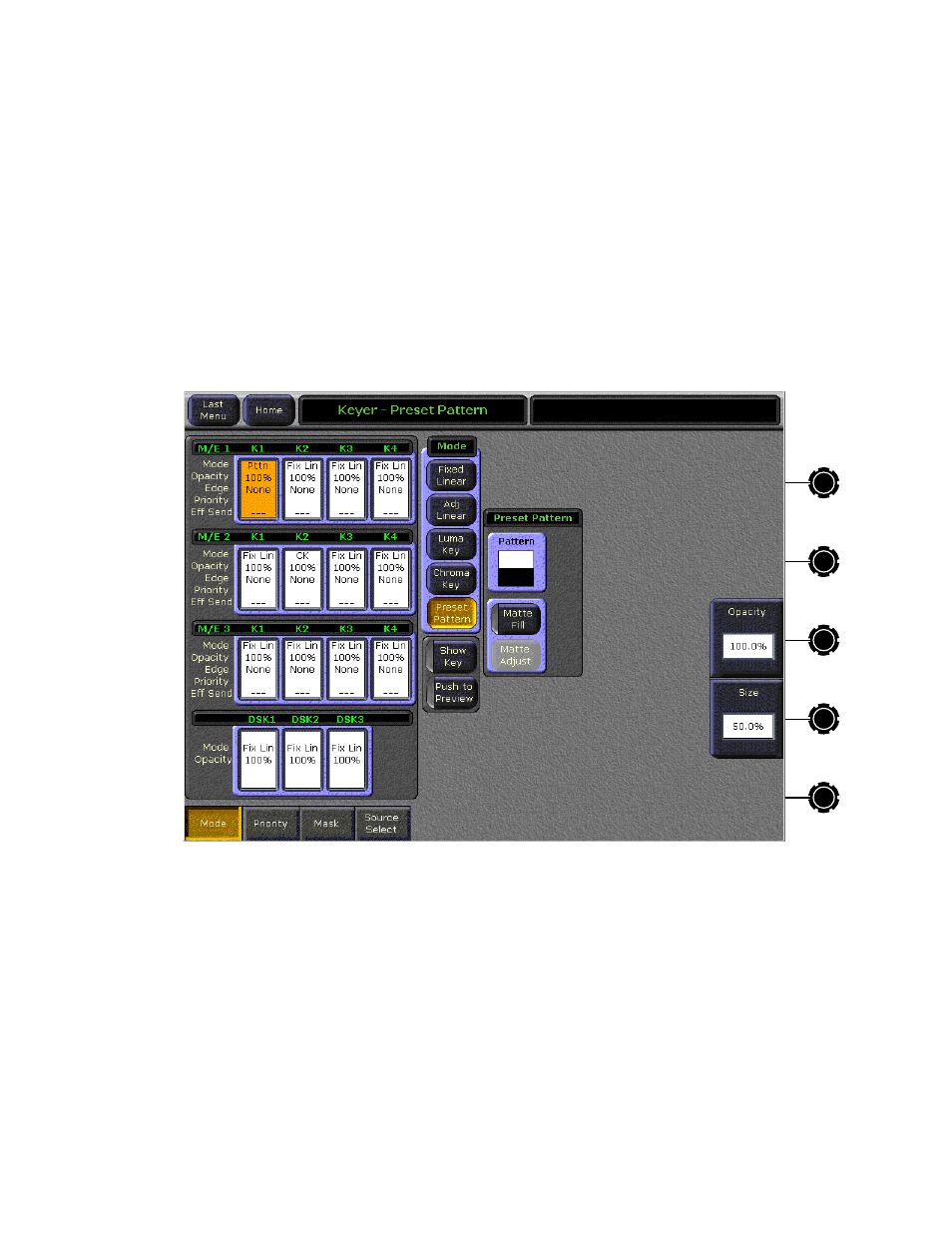

Figure 238. Keyer Mode – Preset Pattern
