Zodiak — User Manual 225
R-MEM Menu
R-MEM Menu
R-MEM registers are learned, recalled, and previewed from the R-MEM
menu. The R-MEM menu is reached by pressing the
R-MEM Menu panel
button, then touching the R-MEM category selection button ( Figure 156 ).
Note Configuration with an external routing system is required before the Router
Interface feature is operational. Refer to the Zodiak Installation and Service
Manual for interface instructions.

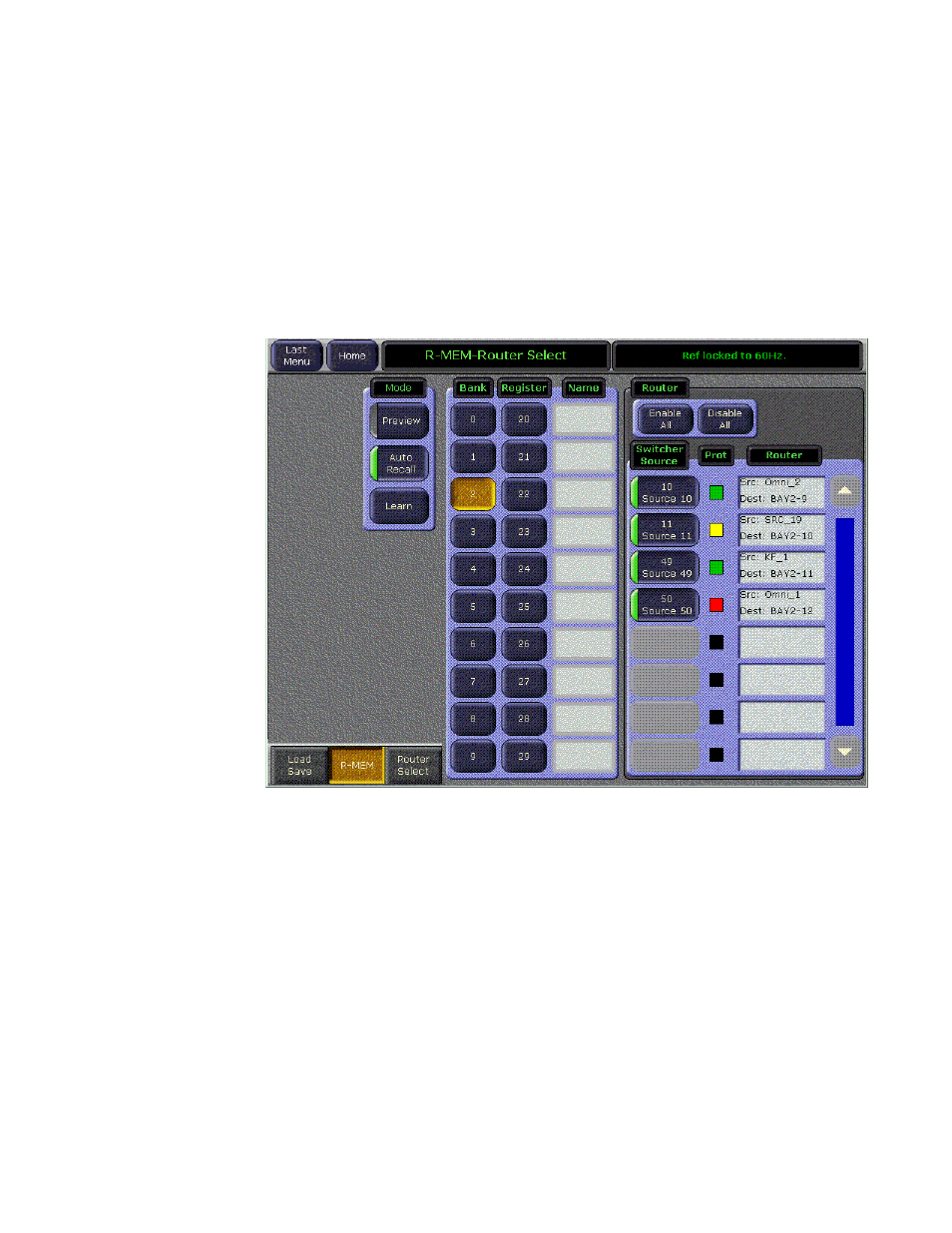

Figure 156. R-MEM Menu
The R-MEM menu has a mode pane on the upper left, a pane in the center
listing the R-MEM registers available (the full register number is displayed
on each register button), and a Router pane on the right showing the
switcher sources, router sources and destinations, and protection status.
Switcher sources configured as routed Zodiak sources appear in the right
pane.
R-MEM Auto Recall Mode
The R-MEM Auto Recall mode acts similar to the E-MEM Auto Recall. An
R-MEM Auto Recall automatically changes only the switcher sources that
were enabled when the register was learned.
