Zodiak — User Manual
461
Using Still Store Loader
If the IP Address or Hostname is not valid, an error message will be dis-
played. Press
Cancel
and enter a valid identification.
Note
If you don’t know the Hostname or IP Address, contact your Network Admin-
istrator for this information.
5.
Touch the
Ping
button to test communications to the Zodiak Stillstore
located in the Video Processor frame. A
Ping Reply OK
message appears
when communication succeeds.
6.
Click
OK
to close the Select Address box, then click
Cancel
to exit the
Image Transfer dialog box.
The last device identified is retained until it is changed in the Select
Address dialog box, even if you exit and reload the Still Store Loader appli-
cation program.
Downloading an Image From PC to Zodiak Stillstore
1.
In the main application window, select the appropriate line rate (
525
or
625
) by clicking on a Line Rate radio button.
2.
Click on the
Select Image
button. The Open File dialog box appears. To
view all allowed file types, select
Image Files (*tif, *.bmp, *.gva)
from the
Files of Type drop down list (

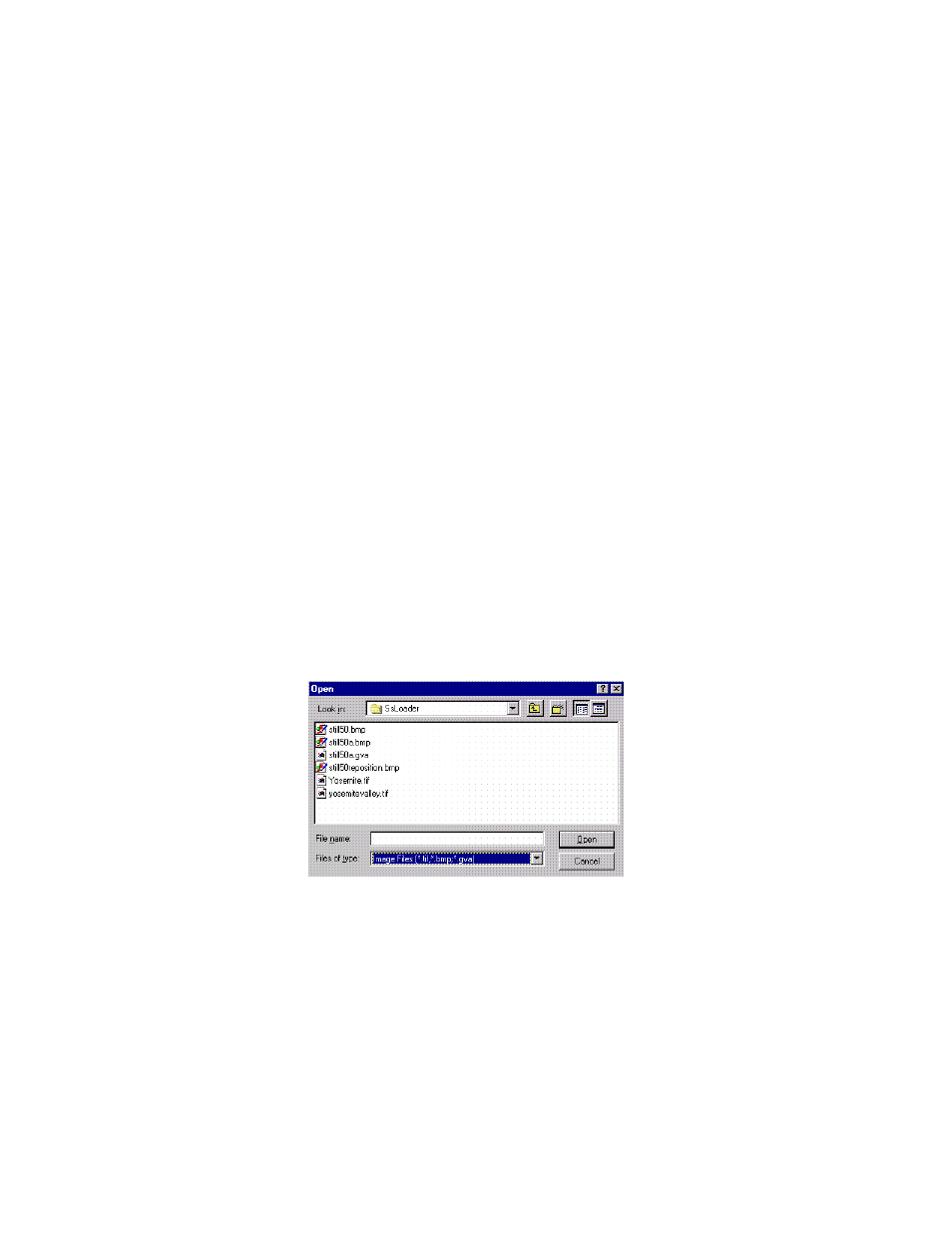

Figure 306. Open File Dialog Box
3.
Select a file from the list displayed by clicking on the file’s name. Only
one file may be selected at a time. The name of the currently selected
file is displayed below the list.
4.
Click
Open
. A status bar indicates the progress of the image load. When
loading is complete, the image is displayed on the main application
window, along with the file’s path and image size (
).
