180 Zodiak — User Manual
Section 4 — Menus Overview
Aux Deleg Mapping Menu
The Aux Deleg Mapping menu ( Figure 118 ) is used to map the delegation
buttons on the local PVW/AUX panel and any optional Remote Aux
panels to control the desired (logical) Aux bus. The menu is accessed by
touching
Daily Setups , User Prefs , Aux Deleg Mapping .

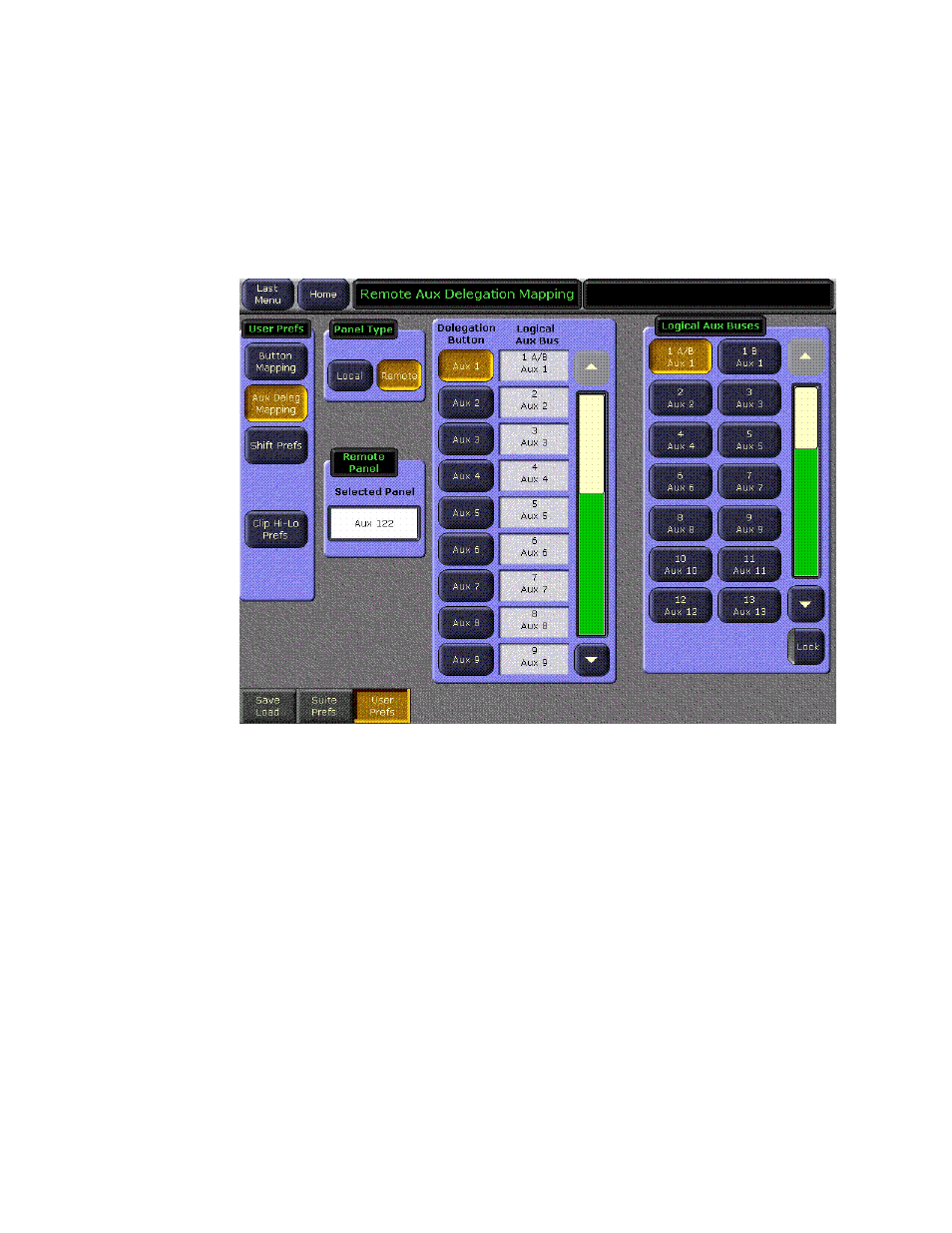

Figure 118. Aux Delegation Menu
The Zodiak local PVW/AUX panel has 9 Aux bus delegation buttons that
can be used to control 9 Aux buses at a time. A 2.5-M/E system has a total
of 9 Aux buses available allowing all buses to be configured. The 3-M/E
system has 13 available aux buses, 9 of which may be delegated to the Aux
delegation buttons. Aux Pairs are often paired for effects send operation
and any defined pair may be assigned to a single Aux bus delegation
button.
Refer to Section 3 – Configuration in the Zodiak Installation and Service Manual
for detailed instructions on configuring Aux buses.
