332 Zodiak — User Manual
Section 4 — Menus Overview
The value ranges are shown in Table 8 .
When one of the Red , Green , or Blue color component's data box is selected,
the knobs for Gain , Lift , and Gamma are delegated and re-labeled for the spe-
cific component. In Figure 234 , the Blue data box has been selected, so the
knobs are labeled Blue Gain , Blue Lift , and Blue Gamma , and they control those
values. If the Green data box had been selected, the knobs would be labeled
Green Gain , Green Lift , and Green Gamma and would control the green channel's
values, and similarly for Red. The border color for the oscilloscope for the
selected component is changed from black to white.

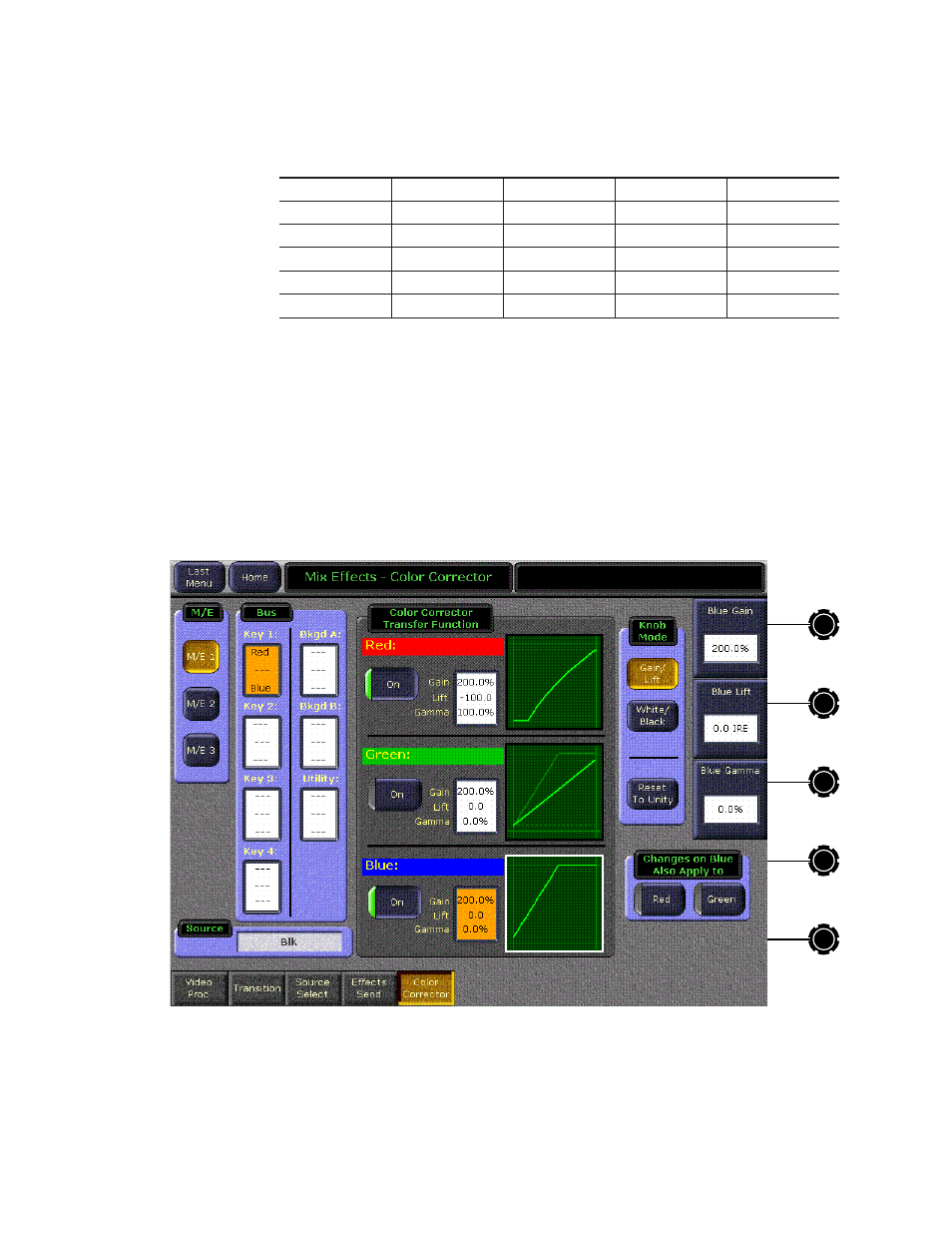

Figure 234. Adjustments
The three color components have individual On buttons, which are LED
push on/push off type buttons. As shown in Figure 234 , the Red and Blue
components have been enabled but the Green component has not. If a com-
Table 8. Color Corrector Value Ranges
Control Minimum Maximum Nominal Units
Gain 0 200 100 %
Lift -40 +100 0 IRE
Gamma -100 +100 0 %
Black -40 +100 0 IRE
White -40 +300 100 IRE
