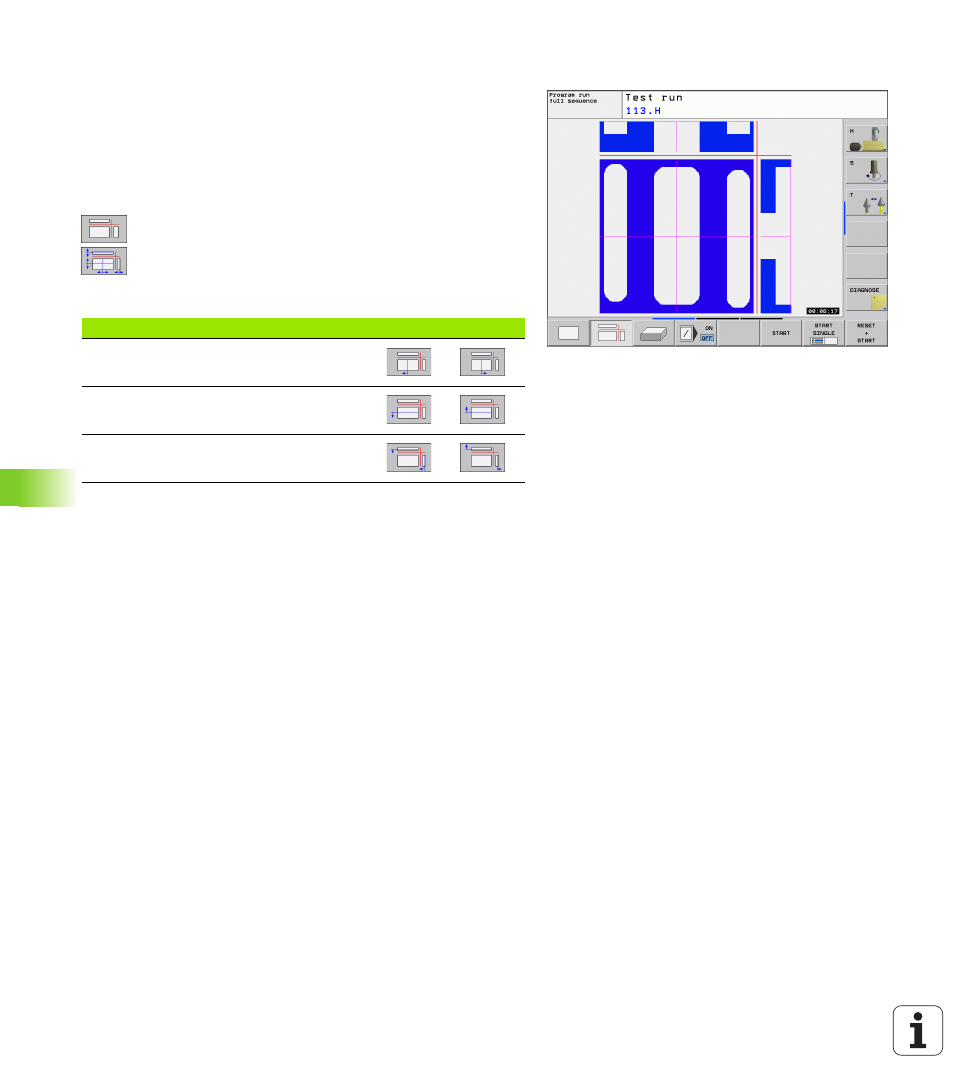

Projection in 3 planes
Similar to a workpiece drawing, the part is displayed with a plan view
and two sectional planes.
Details can be isolated in this display mode for magnification (see
“Magnifying details,” page 460).
In addition, you can shift the sectional planes with the corresponding
soft keys:
 Select the soft key for projection in three planes.
 Shift the soft-key row and select the soft key for
sectional planes.
 The TNC then displays the following soft keys:
The positions of the sectional planes are visible during shifting.
The default setting of the sectional plane is selected so that it lies in
the working plane and, in the tool axis, on the workpiece center.
Function Soft keys
Shift the vertical sectional plane to the right
or left
Shift the vertical sectional plane forward or
backward
Shift the horizontal sectional plane upwards
or downwards
