.1 Gr
aphics (A
dv
anced Gr
aphic F
e
at
ur
es Sof
tw
a
re
Option)
3-D view

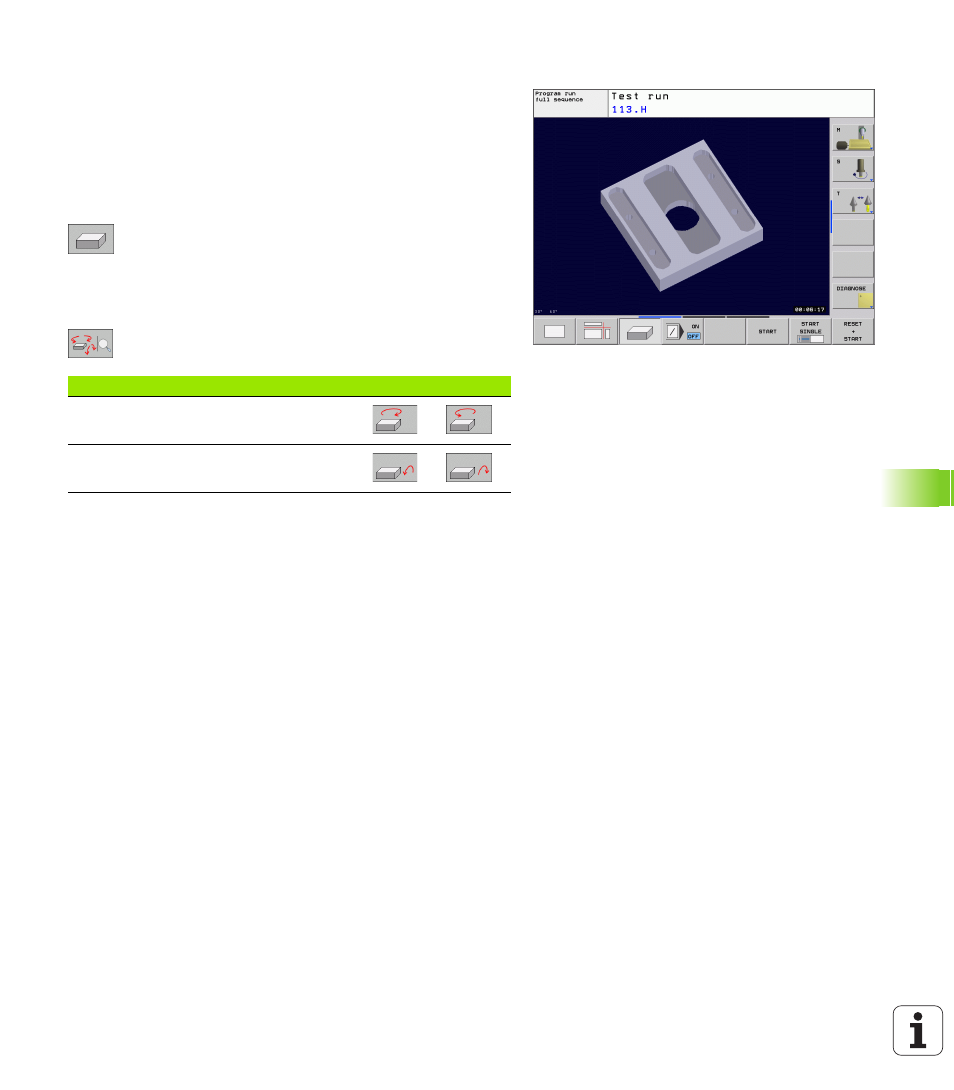

The workpiece is displayed in three dimensions.
You can rotate the 3-D display about the vertical and horizontal axes.
The shape of the workpiece blank can be depicted by a frame overlay
at the beginning of the graphic simulation.
In the Test Run mode of operation you can isolate details for
magnification, see “Magnifying details,” page 460.
 Press the soft key for 3-D view.
Rotating the 3-D view
 Shift the soft-key row until the soft-key for the rotation functions
appears.
 Select the functions for rotation:
Function Soft keys
Rotate in 15° steps about the vertical axis
Rotate in 15° steps about the horizontal axis
