– 31 –

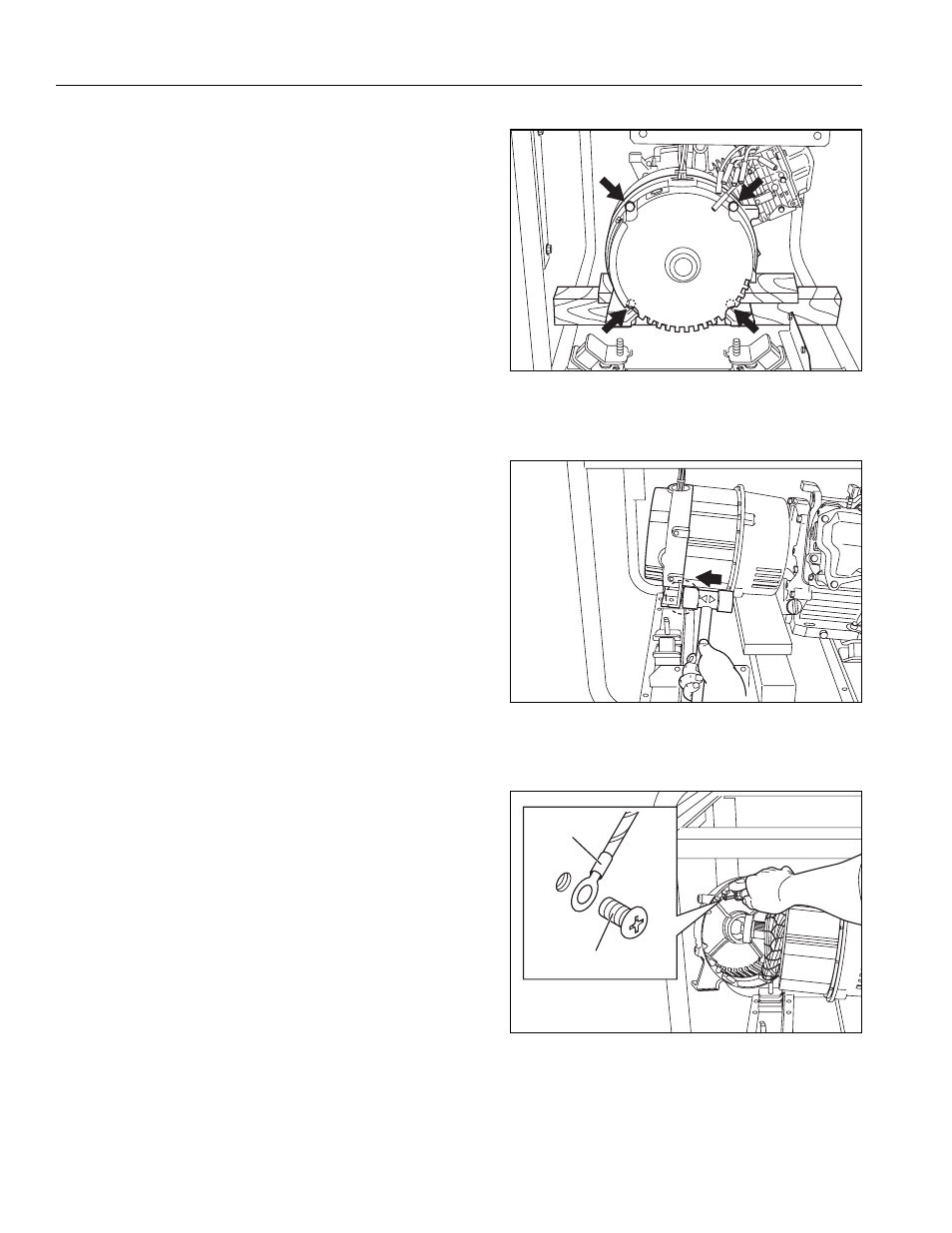

5-2-9 Rear Cover
(1) Remove stator bolts (RGX4800) or cover bolts
(RGX2900/3600).
Fastener : M6 - 150 mm Stator bolts (4 pcs - RGX4800)
M6 -130 mm Cover bolts (3 pcs - RGX3600)
M6 -110 mm Cover bolts (3 pcs - RGX2900)
Tool
: Box wrench (12 mm)
NOTE: For easy operation, set wooden pieces under the
alternator.
Screw
Wire CP
5-2-10 Wire CP
Remove screw and disconnect wire CP from inside rear
cover.
Fastener : M4 -6 mm Screw
Tool
: Philips (cross-head) screwdriver
(2) Take off rear cover from stator, by lightly hitting at boss
portions with plastic hammer.
Tool : Plastic hammer
