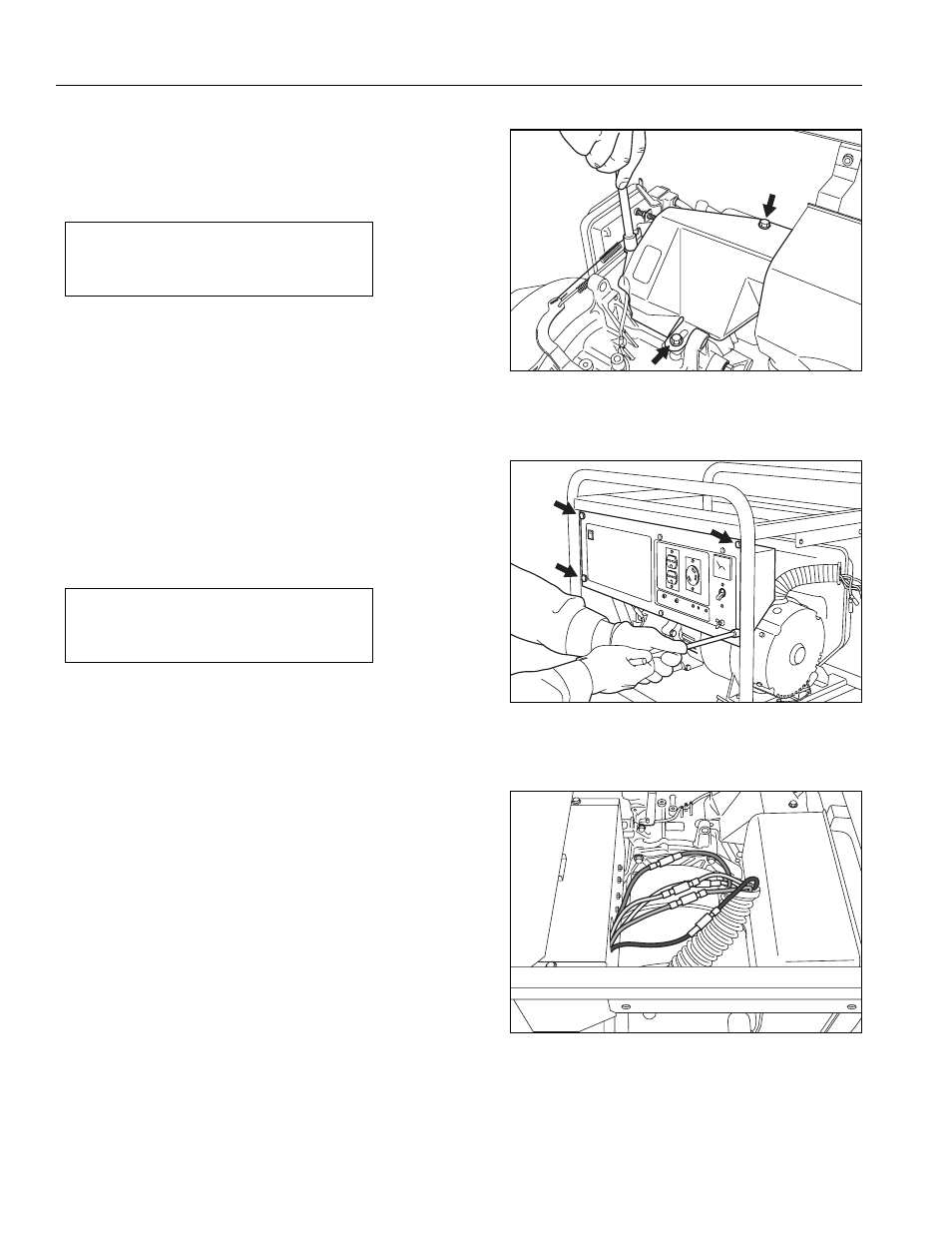

– 39 –
(4) Attach exhaust pipe cover.
Fastener : M6 - 12 mm Flange bolts (3 pcs)
Tool
: Box wrench (10 mm)
5-3-11 Electric Connectors
(1) Connect all wirings of the same appearance each other
between control panel and alternator.
5-3-10 Control Panel
Fix control panel into frame.
Fastener : M6 - 12 mm Screws (4 pcs)
Tool
: Box wrench (10 mm)
Tightening torque : 4.5-5.9
N m
(50-60
kgf cm)
(3.6-4.3 ft lbs)
Tightening torque : 4.5-5.9
N m
(50-60
kgf cm)
(3.6-4.3 ft lbs)
