– 35 –

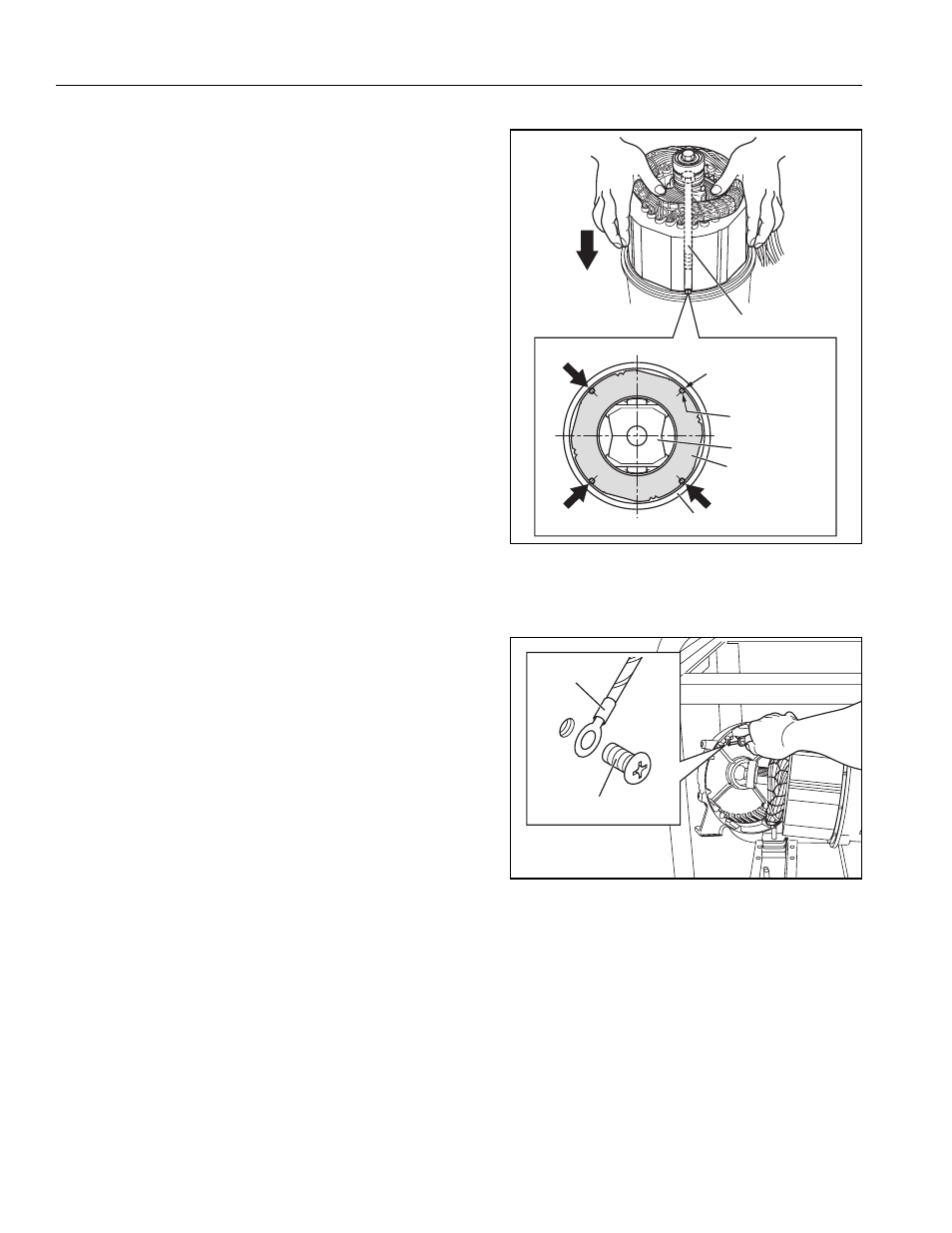

5-3-3 Stator
Install stator into front cover.
Adjust the stator grove position (4 places) so that stator bolt
can be tightened later. (RGX4800)
(Stator bolt)
Stator bolt
fixed hole(4 places)
Grove
(4 places)
Roter
Stator
Front cover
Screw
Wire CP
5-3-4 Wire CP
Fix wire CP at inside of rear cover in position.
Fastener : M4 -6 mm Screw
Tool
: Philips (cross-head) screwdriver
