– 32 –

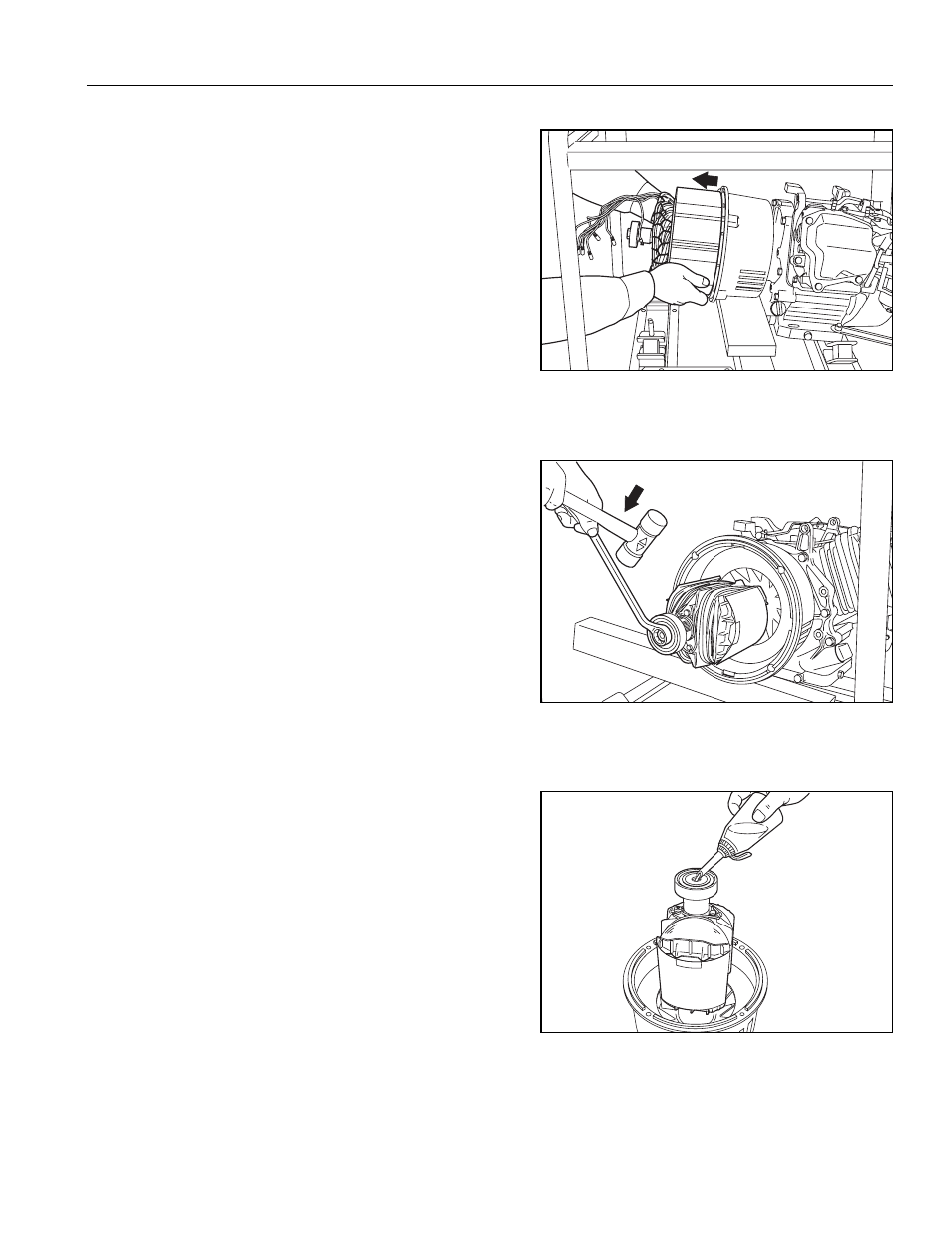

5-2-12 Through Bolts
Remove through bolt, by tapping the wrench with plastic
hammer.
Fastener : M10x1.5 - 240 mm Through bolt (RGX4800)
M8x1.25 - 260 mm Through bolt (RGX3600)
M8x1.25 - 240 mm Through bolt (RGX2900)
Tool
: Box-end wrench (14 mm) and Plastic hammer
5-2-13 Rotor
(1) Set the engine in the condition of recoil starter side
downward.
5-2-11 Stator
Take out stator, holding with hands.
