15

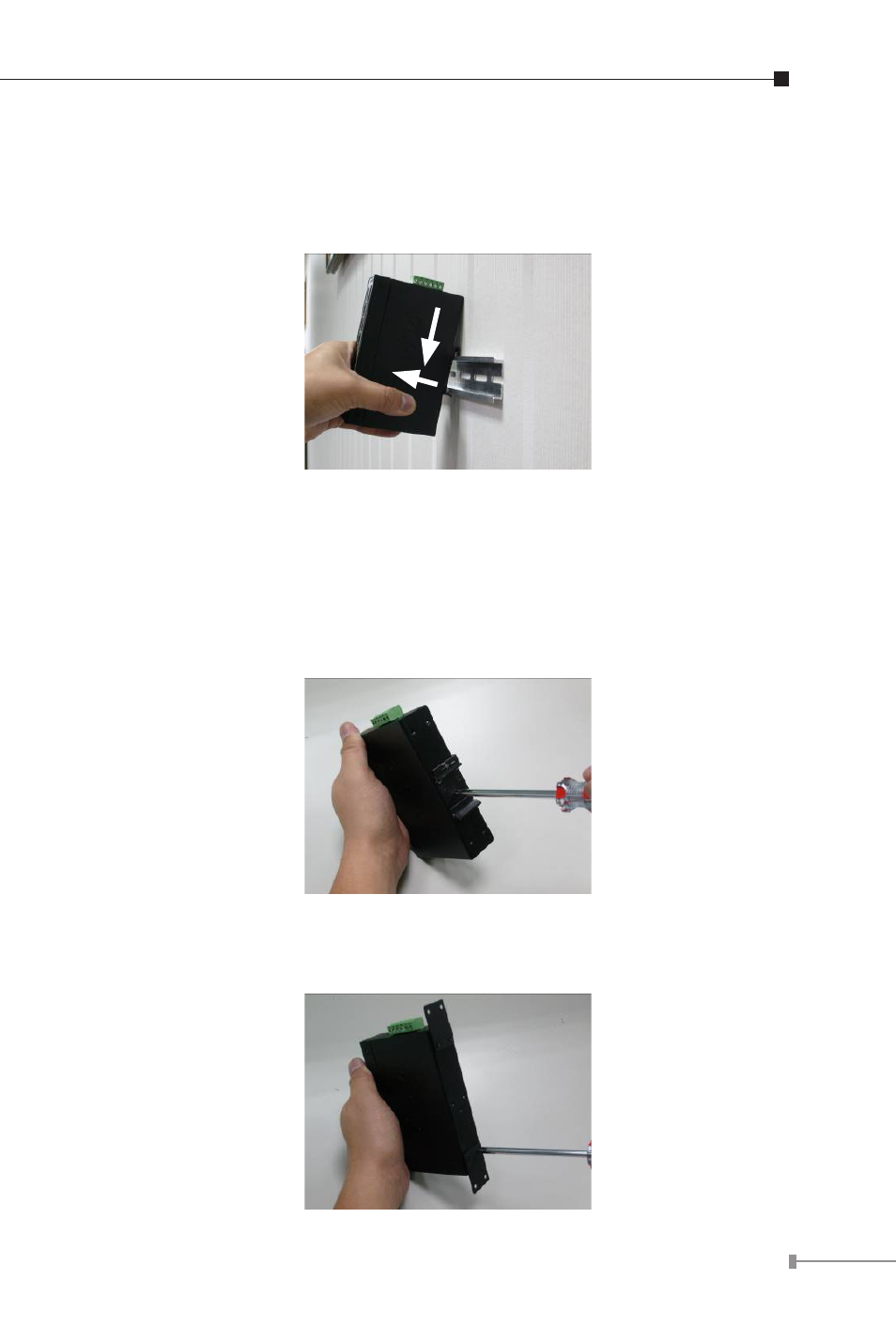

Please refer to the following procedures to remove the Industrial Power
over Ethernet Extender from the track.
Step 3: Lightly remove the DIN rail from the track.
2
1
2.3.2 Wall-mount Plate Mounting
To mount the Industrial Power over Ethernet Extender on the wall,
please follow the instructions described below.
Step 1: To remove the DIN rail from the Industrial Power over
Ethernet Extender, loosen the screws.
Step 2: Place the wall-mount plate on the rear panel of the Industrial
Power over Ethernet Extender.
