4. Connect the TV to YburAntenna/Cabie
If you want to connect both VHP and UHF
antennas
If you want to connect both VHF/UHF antennas
and a CATV cable
AUX
§
TO
CONVERTER
VHFAJHF
•gnus
CATV
cable
VHRUHF
antenna cable
Note
In this case, do not connect anything to the TO CONVERTER
terminal.
If you want to connect a cable with a special con-
verter/decoder * for pay cable TV systems
Use the EAC-66 U/V mixer (not supplied).
1
Prepare the VHP antenna cable end using the appropri
ate connector.
2

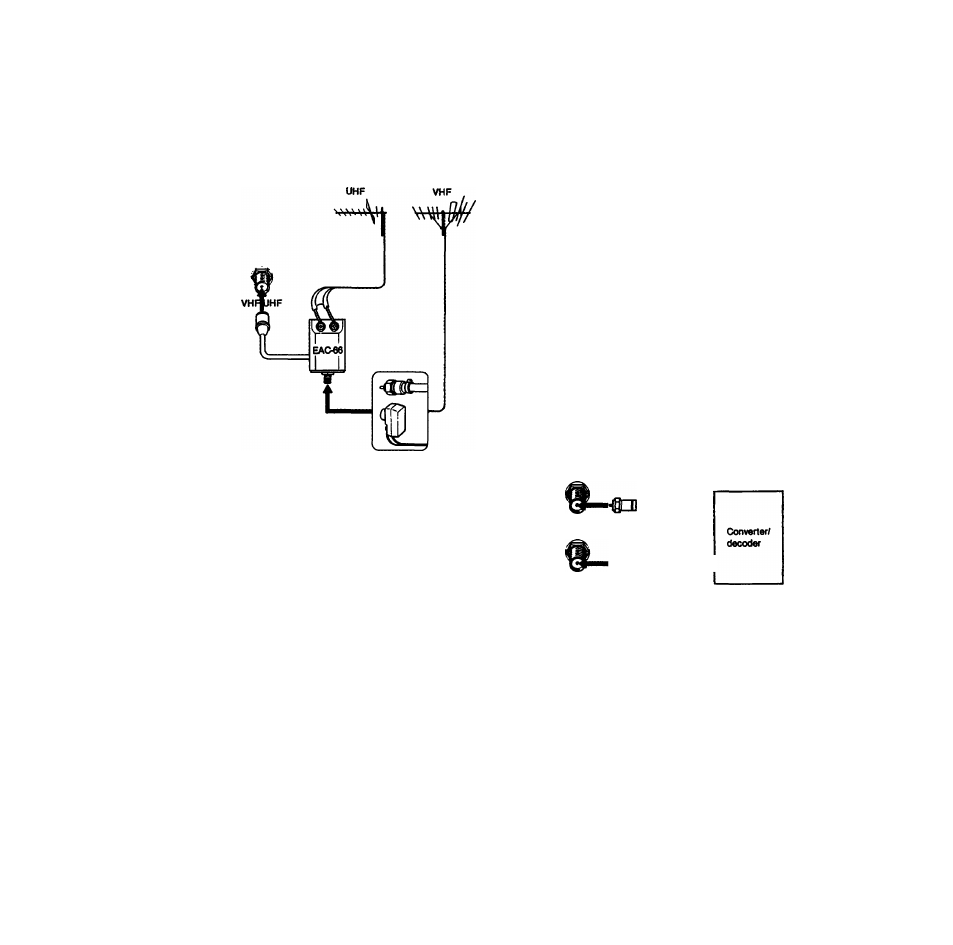

Connect the cables to the mixer.
3
Connect the mixer to VHRUHF.
When you use the U/V mixer.
Snow and noise may appear in the pictures of the cable TV channels
over 37 (W + 1).
AUX
TO
75-ohm coaxial cable
CON^rreR (notaupplled)
«-HO
VHF/UHF
CATV
Pay cable TV systems use scrambled or encoded signals and
require speciai converters (decoders) in addition to the normai
cable connection.
* The special converter/decoder will be supplied by the
cable company.
