15. If Vbu Want to Connect Other Equipment
To be continued

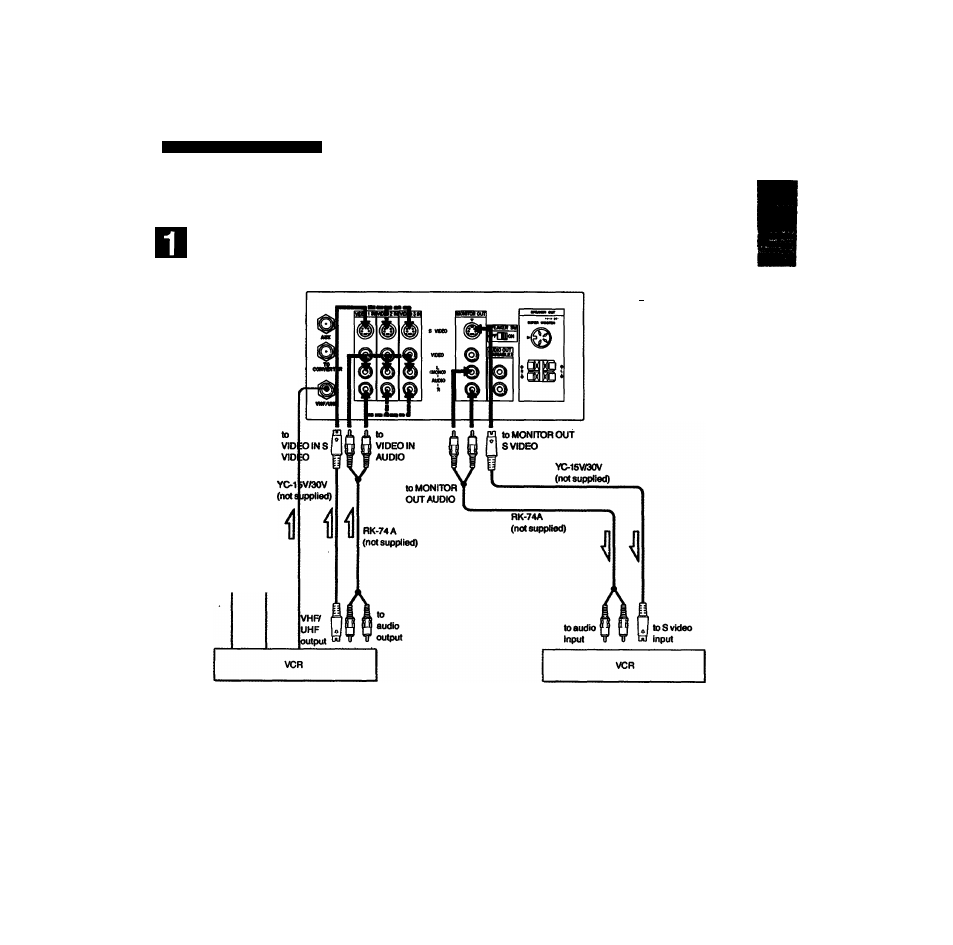

If You Want to Connect a VCR
With these connections, you wiiibe abie to...
— \flew the pisyback of video tapes
— Record TV programs
— Records TV program white viewing anodier
VCRs with an $ video output Jack
Rear of TV
—I
r Signal How
r
f'
I
toVHRUHF
KV-27/32XBRS1,
KV-27/32XBR55
a
s
g
E
S’
o
E
S
3
CD
a.
Notes:
The signal input to VIDEO IN cannot be output from S VIDEO OUT.
The signal input to S VIDEO IN can only be output from 8 VIDEO OUT.
Notes
•
• If you connect a monaural VCR, connect the audio output of the
VCRtotheL(MONO) jack of VIDE01/2/3 IN of the TV.
Vbu can hear the monaural sound from both speakers.
• For operation, refer to the instruction manual furnished with the
VCR.
• Keep the VCR away from the TV if the picture or sound is affected.
• Do not connect the same VCR to output and input.
Chapter 1: Set up
117
