AFQ-4W
22 Instruction Manual

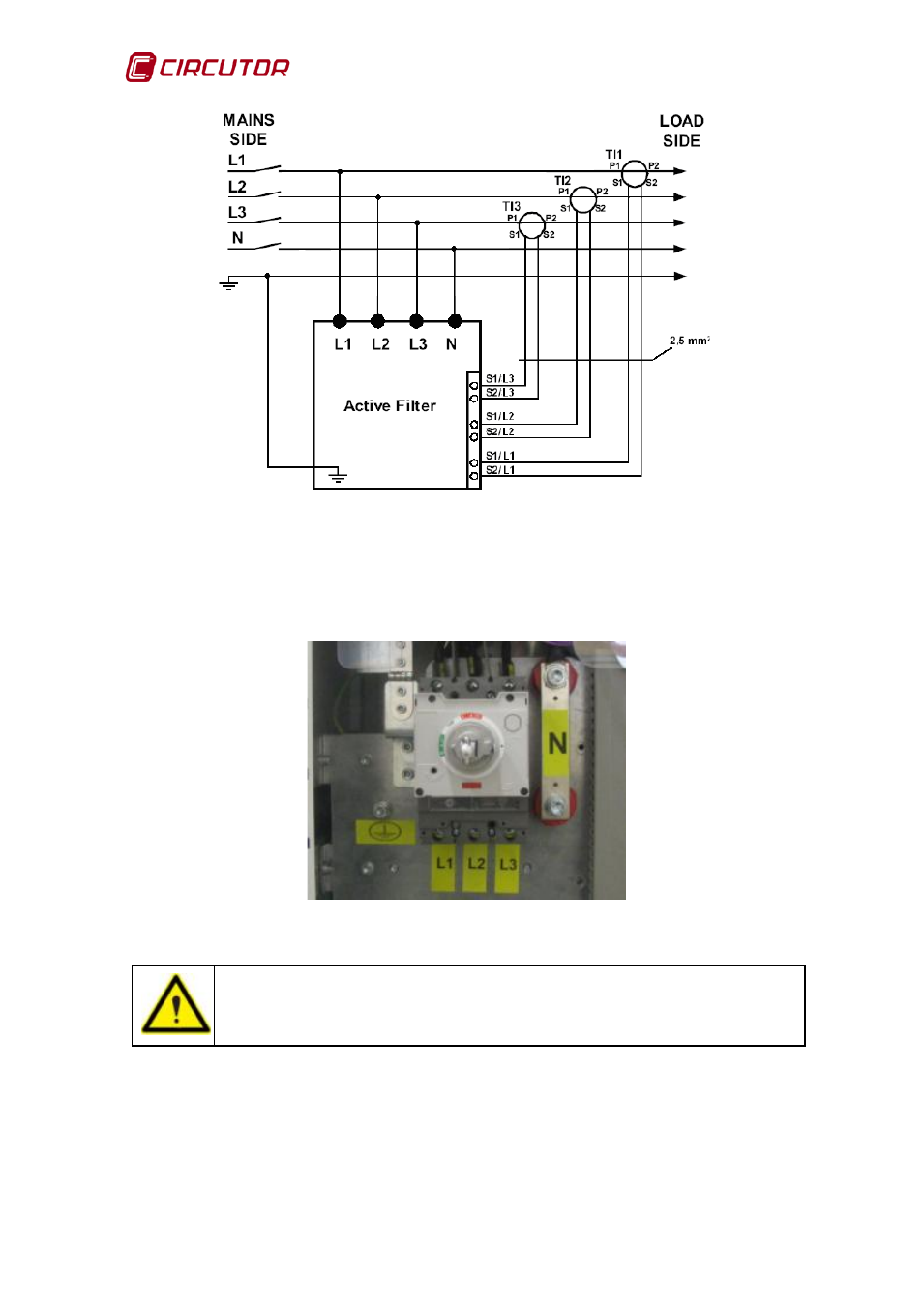

Figure 16: Connection diagram of the AFQ-4W.
3.5.1. THREE-PHASE MAINS TO NEUTRAL CONNECTION
The connections of the three-phase mains to neutral (L1, L2, L3, N and Earth)
are identified in the active filter as in
Figure 17: Mains connection points in the AFQ-4W.
Use cables of a cross-section suitable for the filter nominal current.
