Paxton Superchargers Dodge V-10 Truck - Manual (Page 10)

2-4
P/N: 4800019
©2003 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
25SEP03 v2.0 Dodge V-10(4800019v2.0)
Fig 2-l
Fig 2-m
Fig 2-n
Fig 2-o
REAR VIEW
BEND DOWN
METAL LINE
SHOULD
LOOK LIKE
THIS AFTER
BENDING.
TOP VIEW
CAP
P/S/PUMP
DODGE V-10
POWER STEERING
PUMP HOSE
MODIFICATION
FLATTEN OUT
BEND IN
METAL LINE

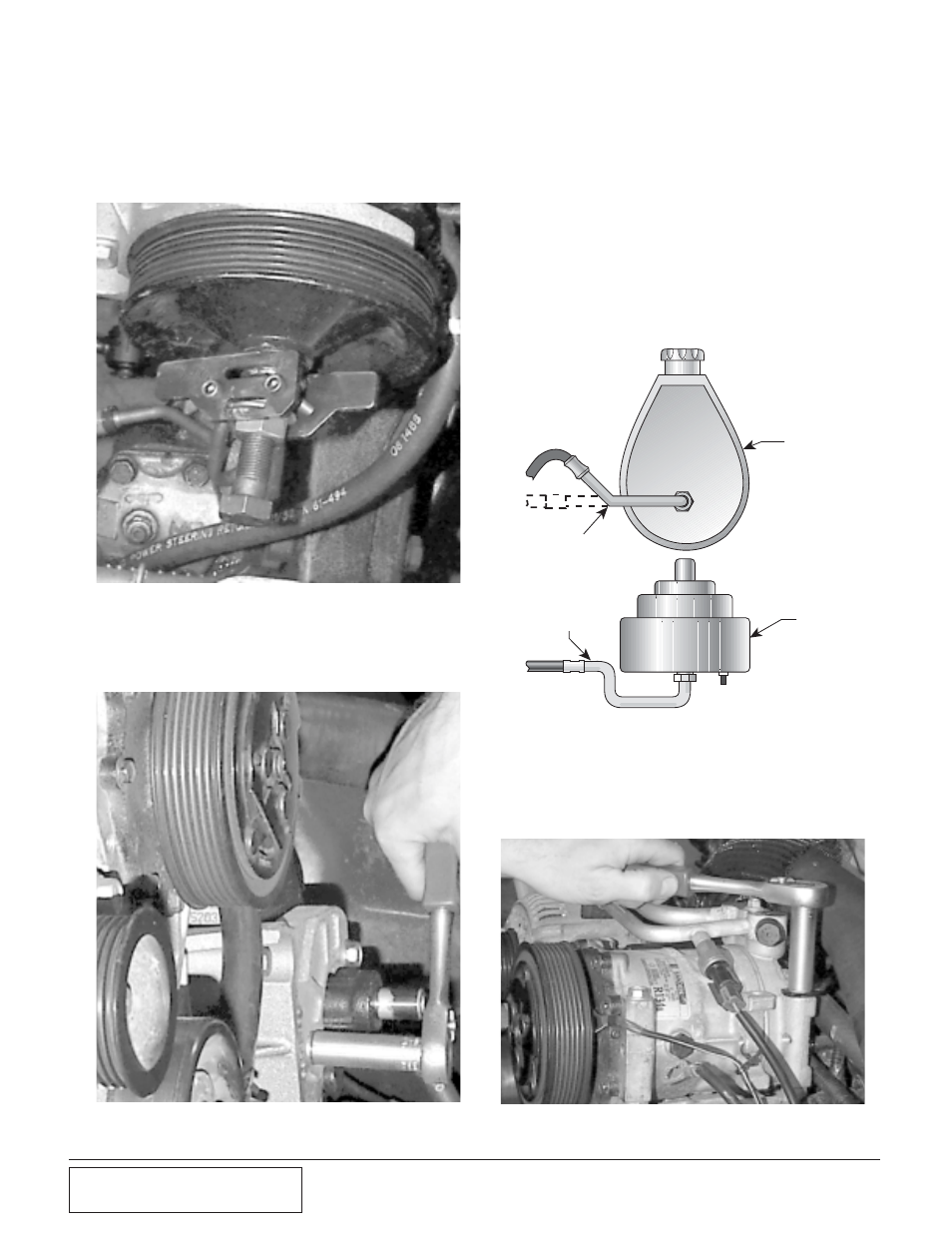

B. Follow the accompanying instructions
with the power steering pulley
puller/pusher and remove the power
steering pulley. (See Fig. 2-l.)
C. Use a 15mm socket and remove the
three bolts securing the pump to the
bracket. (See Fig. 2-m.)
D. With a 9/16” socket and extension,
remove the four bolts that secure the
power steering bracket to the engine. Do
not disconnect the fluid lines.
E. On the back of the pump, remove the
two nuts with a 15mm wrench and the
two bolts with a 12mm socket. Remove
the bracket from the pump and lay the
pump on the steering box.
Grab the
power steering pump with both hands.
Bend the pressure line down until it is
flat, as shown. (See Fig. 2-n.)
F. Remove the bolt from the upper rod on
the A/C compressor with a 1/2” socket.
(See Fig. 2-o.)
