3-7
P/N: 4800019
©2003 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
25SEP03 v2.0 Dodge V-10(4800019v2.0)
OIL
FILTER
SIDE
VIEW
STREET
“TEE” GOES
IN HOLE
FOR STOCK
SENDER
OIL PRESSURE
SENDER
1/8" PIPE
TO -48 °
DODGE V-10 OIL PRESSURE
SENDER/OIL FEED LINE
ANGLE SENDER TOWARD FRONT OF VEHICLE
SO IT CLEARS STEEL LINES AND SMOG PUMP
10 ° TO 12 °

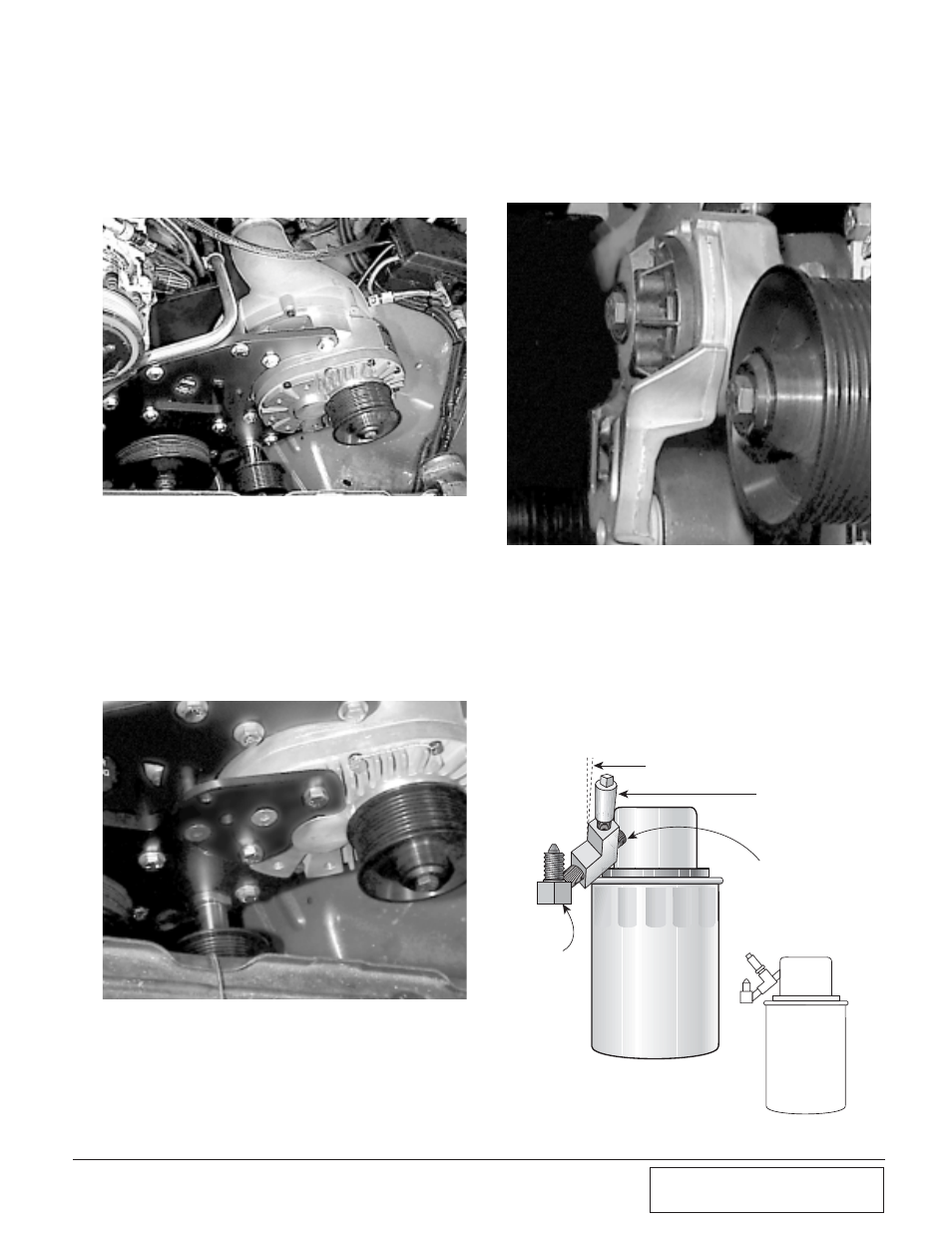

Fig 3-r
Fig 3-s
Fig 3-t
Fig 3-u
G. Set the unit down into the bracket and
secure it to the bracket with the 5 sup-
plied 3/8-16 x 1.5” bolts, leave the third
hole from the top open. (See Fig.3-r,
Appendix ‘E’.)
J. Mount the supplied belt tensioner to
the mount with the large bolt, nut and
washer through the middle of the ten-
sioner. (See Fig. 3-t.)
H. From underneath the vehicle, secure the
other end of the oil drain hose to the fit-
ting on the oil pan with the supplied
hose clamp.
I. Install the supercharger belt tensioner
mount to the front of the supercharger
and the last open mounting hole in the
front of the bracket, using supplied spac-
er. (See Fig. 3-s, Appendix ‘F’.)
K. On the passenger side of the engine,
remove the factory oil pressure sensor
located above the oil filter. Replace the
sensor with the supplied street ‘TEE’.
Position the ‘TEE’ so that the sensor
will reinstall into the ‘TEE’ at an angle
pointing toward the smog pump. (See
Fig. 3-u.)
