3-8
P/N: 4800019
©2003 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
25SEP03 v2.0 Dodge V-10(4800019v2.0)

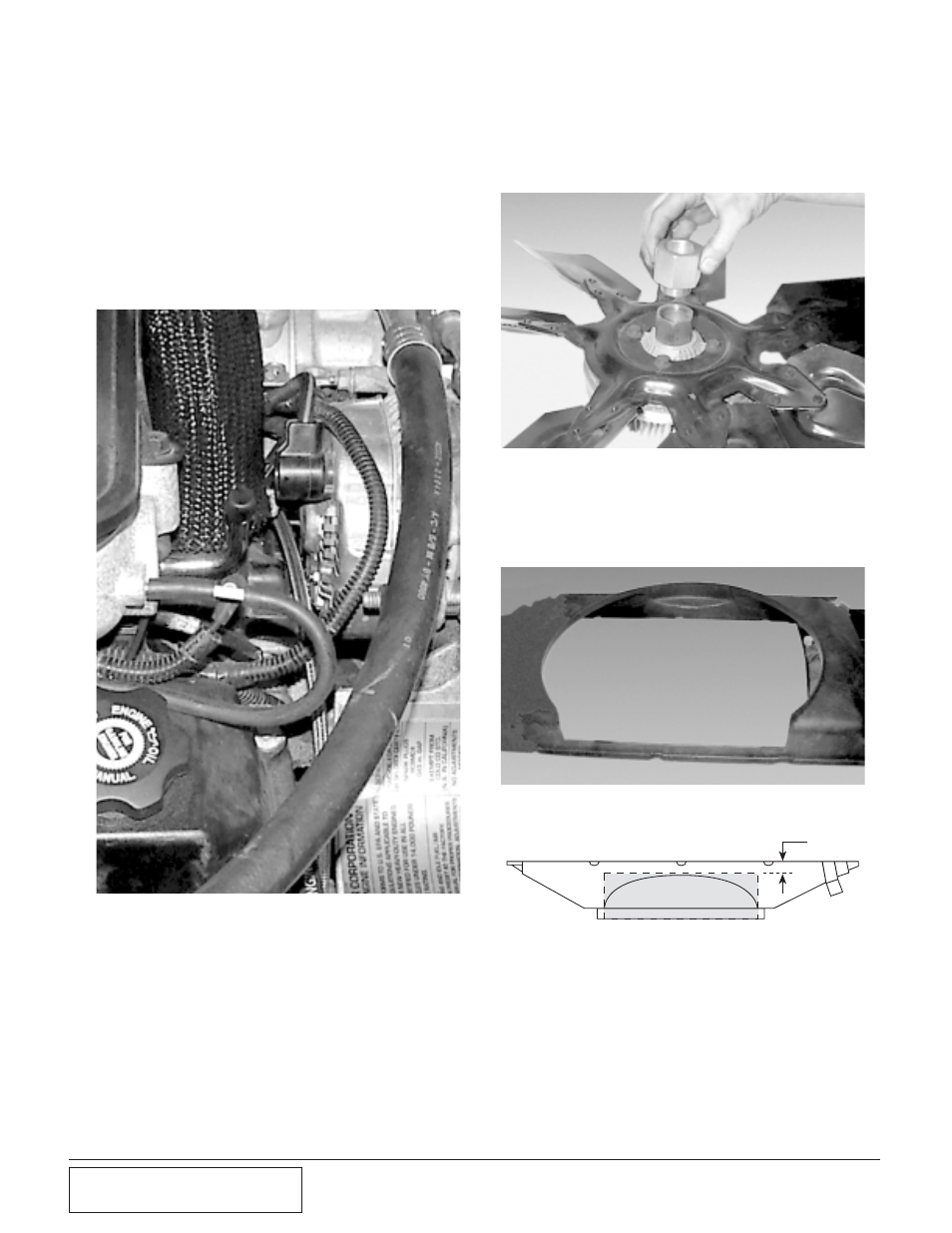

Fig 3-v
BOTTOM OF FAN SHROUD
REMOVE SHADED AREA
1-1/2"
Fig. 3-w
Fig. 3-x
Fig 3-y
L. Install the sensor and connect the sup-
plied oil pressure hose to the last port on
the TEE.
M. Route the pressure line up and across
the front of the engine behind the smog
pump and alternator and over to the
supercharger. Connect the line to the
previously installed fitting leading to the
oil jets in the supercharger. (See Fig.
3-v.)
N. You can now install the drive belts.
Follow the factory routing and install
the accessory drive belt as it was
removed.
O. Install the supercharger drive belt using
the supplied tensioning tool.
3.6 FAN AND SHROUD MODIFICATION
AND INSTALLATION
A. Screw the new fan spacer on the front of
the water pump, snug by hand. (See Fig.
3-w.)
B. With a saws-all or jig saw, cut the
tapered area off of the bottom of the fan
shroud to gain fan clearance. (See Figs.
3-x, 3-y.)
C. Place the fan into the shroud and drop
them both into the engine compartment
together. Screw the fan with the new fan
spacer and tighten with the 36mm
wrench. This will tighten the spacer as
well.
D. Secure the fan shroud with the facto-
ry bolts.
