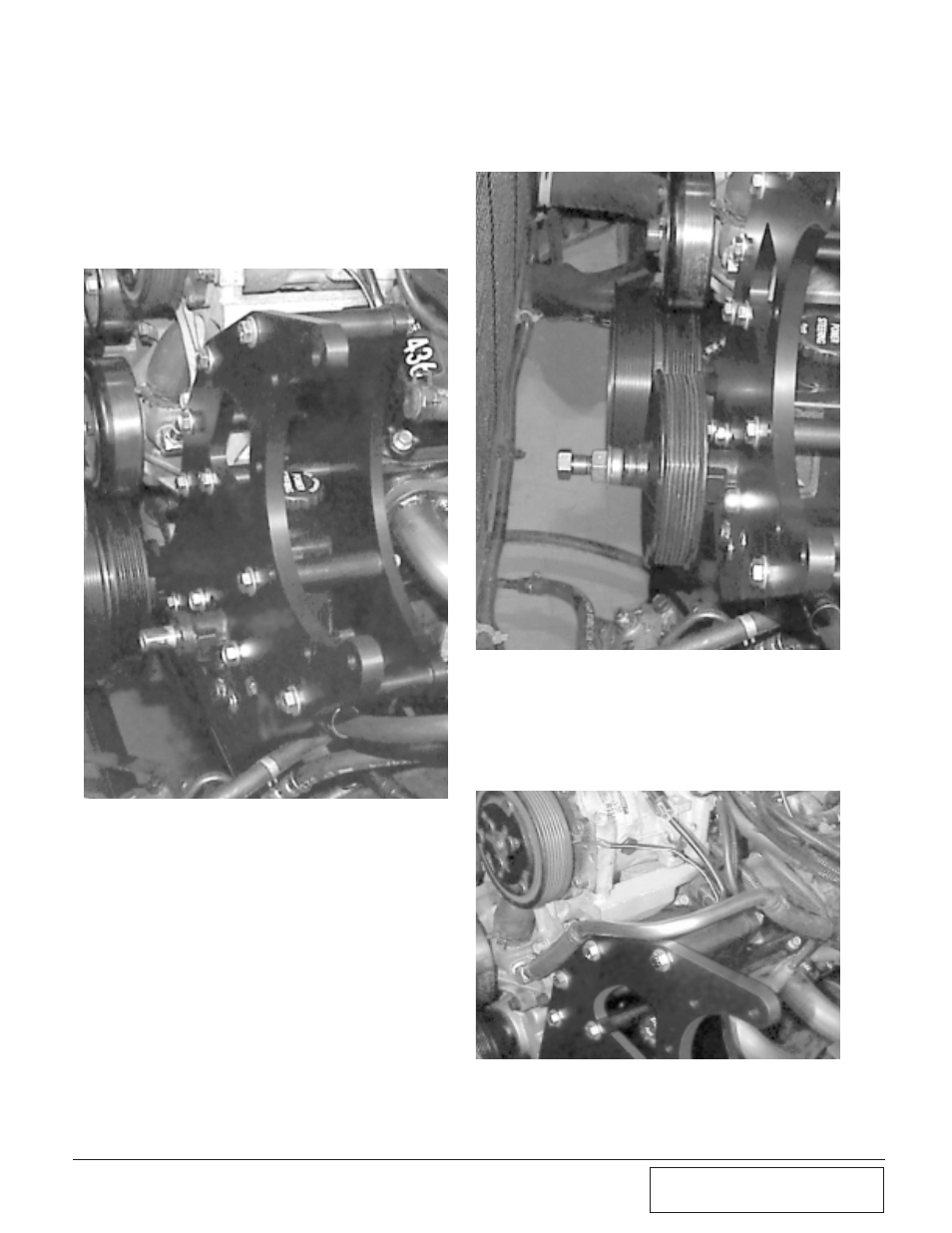

C. Nine bolts secure the front plate to the
rear plate. The longest bolt enters the
lowest part of the bracket. The next
three shorter bolts enter the bracket
above and thread into the head. The next
four enter the bracket to the side of the
engine and thread into the rear plate.
The last, shortest bolt enters the bracket
through the counter-bored hole. Start all
nine bolts before tightening them to 28-
30ft-lbs. (See Fig. 3-k, Appendix ‘C’.) D. Follow the supplied instructions and use
the pulley pusher to re-install the power
steering pulley. Use a small amount of
anti-seize lubricant to ease installation.
(See Fig. 3-l.)
F. Cut off about 2” of heater hose where
you disconnected it at the splice.
G. Use the supplied section of hose and
clamps to install the supplied heater tube
as shown. (See Fig. 3-m, Appendix ‘M’.)
