D. Connect the rubber elbow on the air fil-
ter assembly to the flex hose. Route the
1/2" vent hose under the flex hose and
up to the rear of the valve cover.
Connect the vent hose to the nipple in
the valve cover and tighten the clamp.
Connect the other end of the hose to the
plastic elbow in the air filter. (See
Appendix ‘E’.)
3.7 AIR INTAKE ASSEMBLY
A. With the clamps on the intake tube
loose, slip the tube in behind the super-
charger from above, it will go through
the “loop” in the power steering hose.
Secure the tube to the inlet in the center
of the supercharger, rotate the tube so
that it follows the contour of the inner

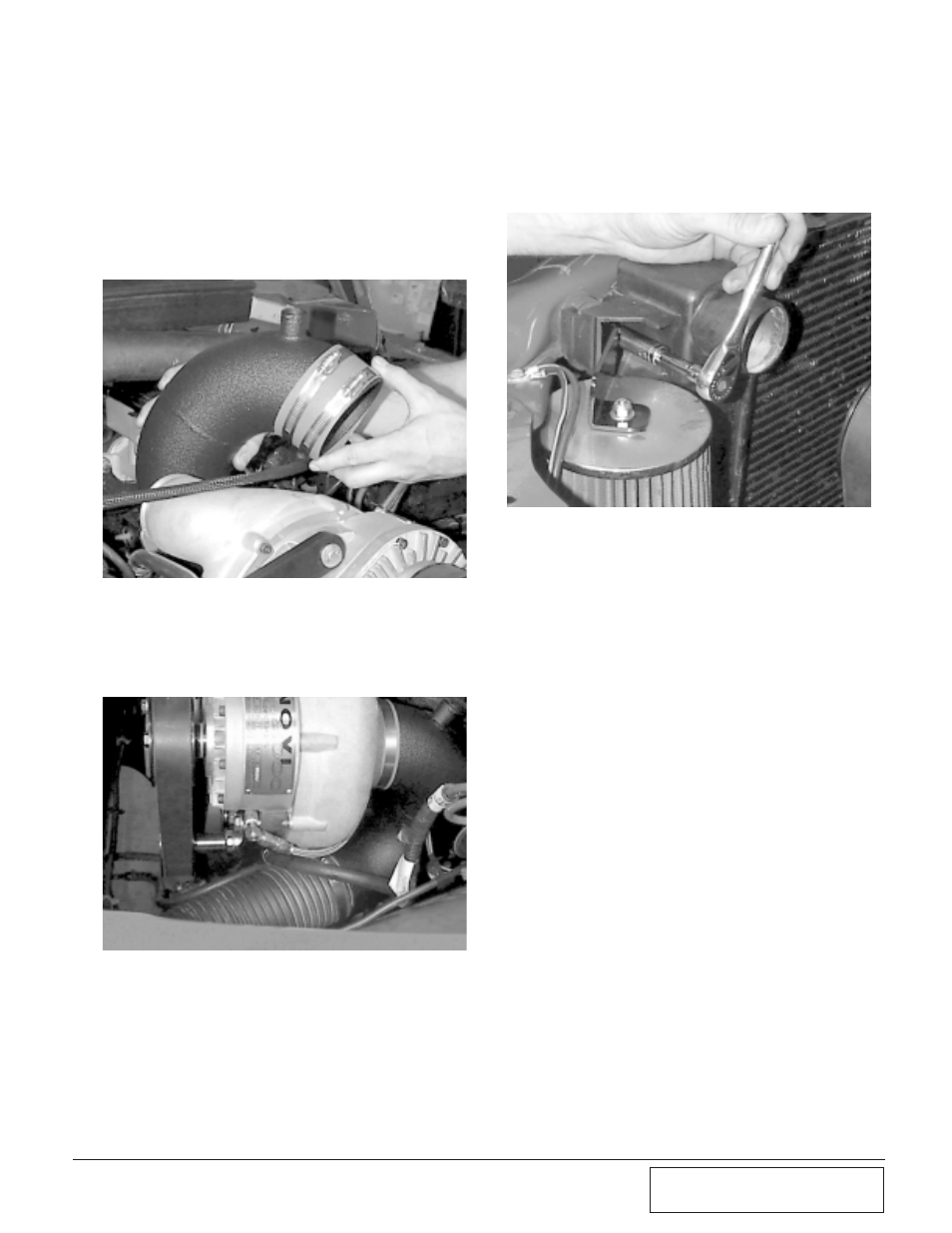

fender and tighten the clamps. (See Fig.
3-z, Appendix ‘E’.)
B. On the air intake assemble, slip the sup-
plied length of flex hose on the end of
the intake tube about 2” and tighten the
clamp. (See Fig. 3-aa.)
C. With a 10mm socket, remove the screw
from the upper radiator mount. Secure
the bracket on the top of the air filter to
the radiator mount with the stock
screw.(See Fig. 3-bb.)
