Paxton Superchargers Dodge V-10 Truck User Manual
Page 22
3-10
P/N: 4800019
©2003 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
25SEP03 v2.0 Dodge V-10(4800019v2.0)
Fig 3-dd
Fig 3-ee
Fig 3-cc
C.
Between the 1" nipples on the intake
and discharge tubes, install the compres-
sor bypass valve with the supplied sec-
tions of hose and clamps. The bottom of
the diaphragm in the valve should be
facing the discharge tube.
D.
Route the supplied length of vacuum
hose from the valve, across the engine
and with the supplied TEE, connect it to
the vacuum nipple on the front of the
upper intake manifold. (See Fig. 3-ee.)
3.8
AIR DISCHARGE ASSEMBLY
A.

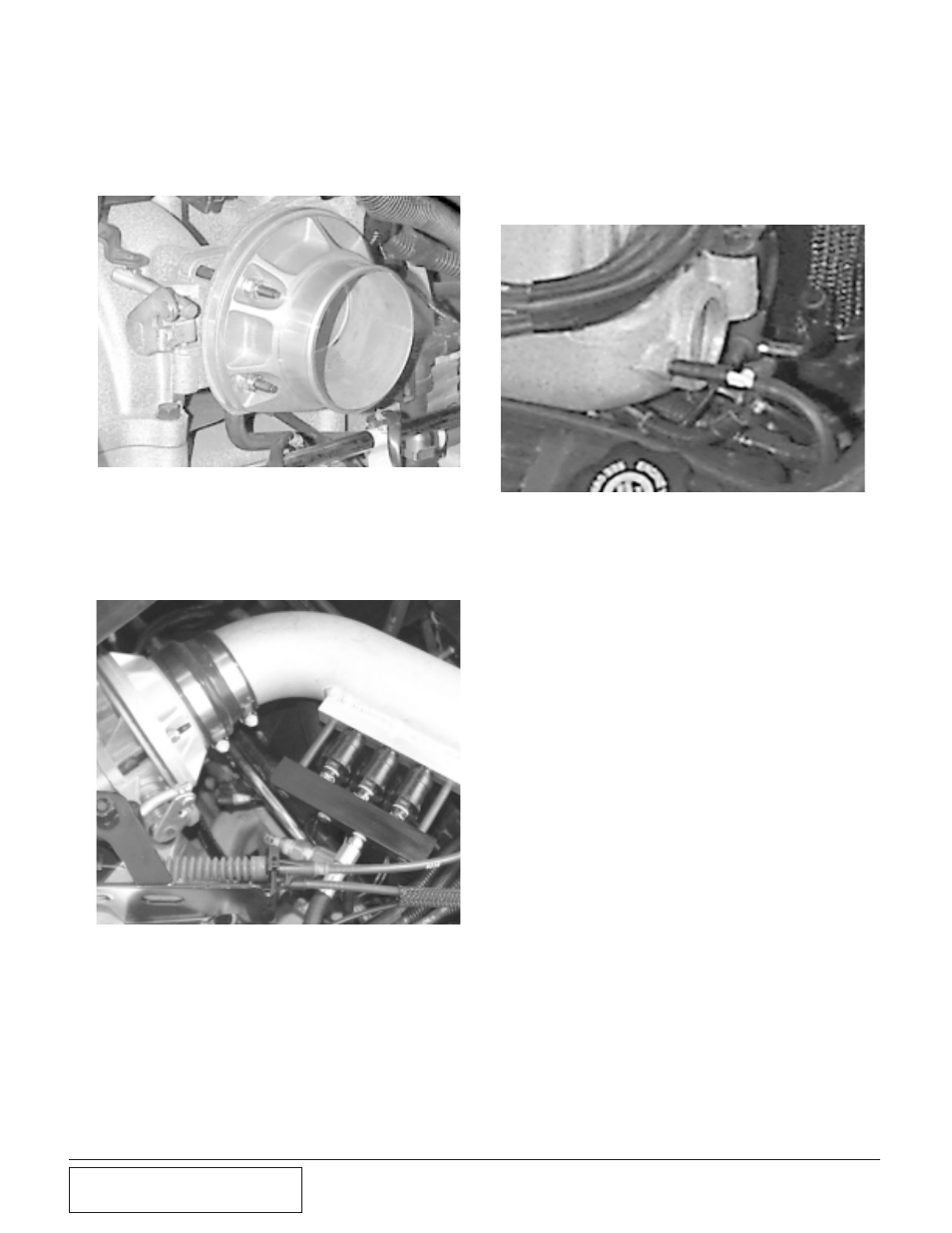

Secure the throttle body adapter flange
to the throttle body on the factory studs
with the stock nuts and gasket. (See Fig.
3-cc, Appendix ‘H’.)
B.
Install the discharge tube between the
adapter flange and the outlet of the
supercharger. Adjust the turbo sleeves
and tighten all the clamps. (See Fig.
3-dd.)
E.
Route the fuel line from the discharge
tube fuel rail to the passenger side fuel
rail, being careful to avoid any potential-
ly hot surfaces.
F.
Fuel system is under pressure. Relieve
pressure by depressing on the Schraeder
Valve Core, using a small pen or screw-
driver.
G.
Remove the Schraeder Valve from the
passenger side fuel rail and connect the
fuel line from the discharge tube assem-
bly to the fuel rail.
