3-6
P/N: 4800019
©2003 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
25SEP03 v2.0 Dodge V-10(4800019v2.0)
5 °
7-1/2"
1-1/4"

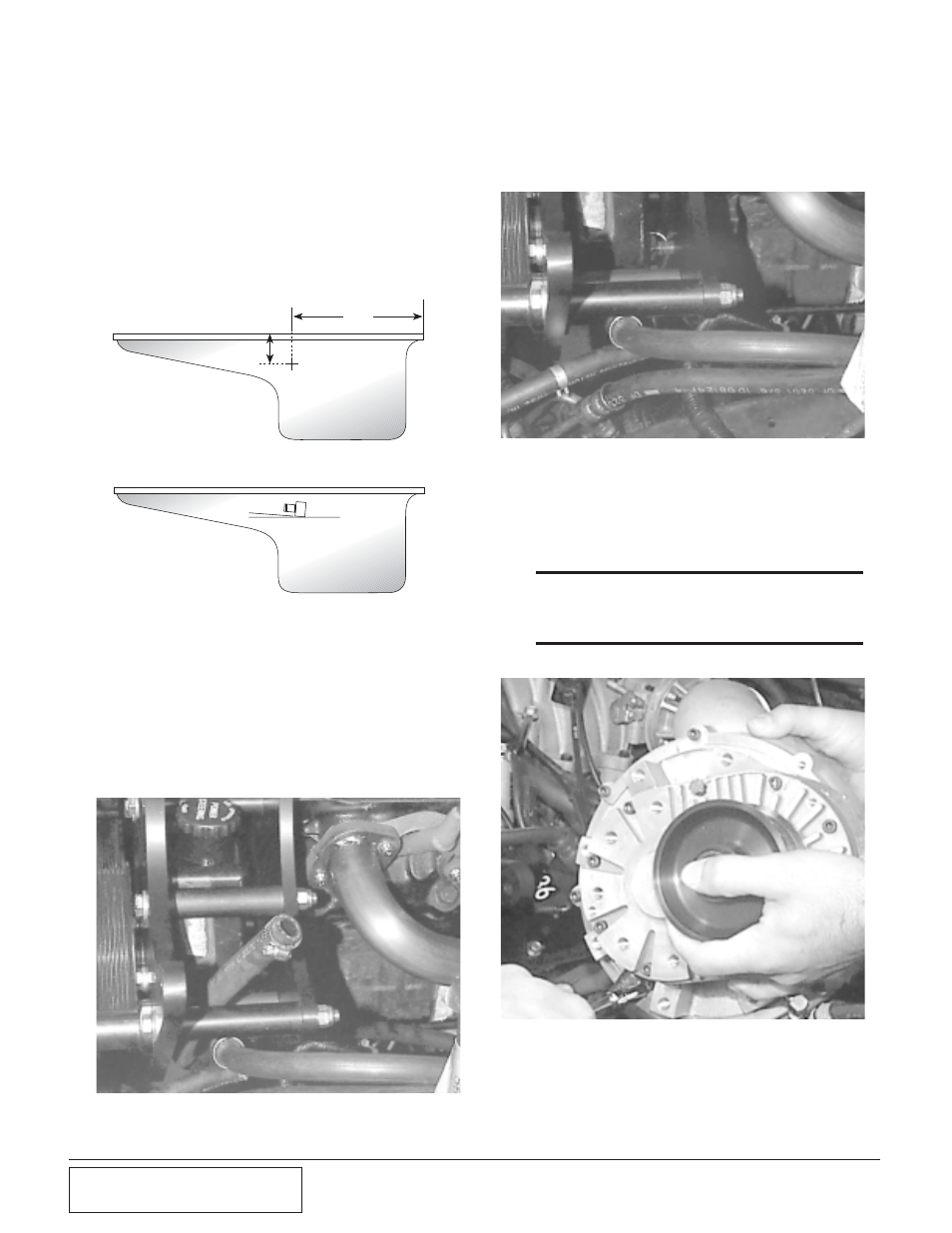

DODGE V-10 OIL PAN DRAIN LOCATION
INSTALL FITTING POINTING FORWARD AND UP 5 ° FROM LEVEL
Fig 3-n
Fig 3-o
Fig 3-p
Fig 3-q
3.5 SUPERCHARGER INSTALLATION:
A. Drain the oil from the engine. Save and
reuse or dispose of properly.
B. Follow the diagram and with the sup-
plied punch, knock a hole in the side of
the oil pan (see Fig. 3-n). Carefully
drive the punch a small way into the
pan, then check the hole size with the
tap. Do this until the hole is the correct
size for the tap. .The hole should be
approximately Ø9/16".
C. Coat a 3/8” pipe tap with grease and tap
the hole. The grease will trap and hold
the shavings. Using silicone, install the
supplied 90° fitting in the side of the
pan. Angle the fitting forward and
slightly upward.
D. Place but do not attach the supplied oil
drain hose through the middle of the
bracket as shown. (See Fig. 3-o.)
E. Make sure that the power steering hose
is up as high as possible against the
bracket. (See Fig. 3-p.)
F. Set the supercharger into the bracket and
secure the oil drain hose to the fitting on
the bottom of the supercharger with the
supplied hose clamp. (See Fig. 3-q,
Appendix ‘K’.)
*** NOTE ***
Make sure there are no dips or kinks in the oil drain
line as this may effect supercharger life and reliabili-
ty.
