Argox Ethernet printer User Manual
Page 14
Ethernet Printer Technical Manual November 10, 2010
14

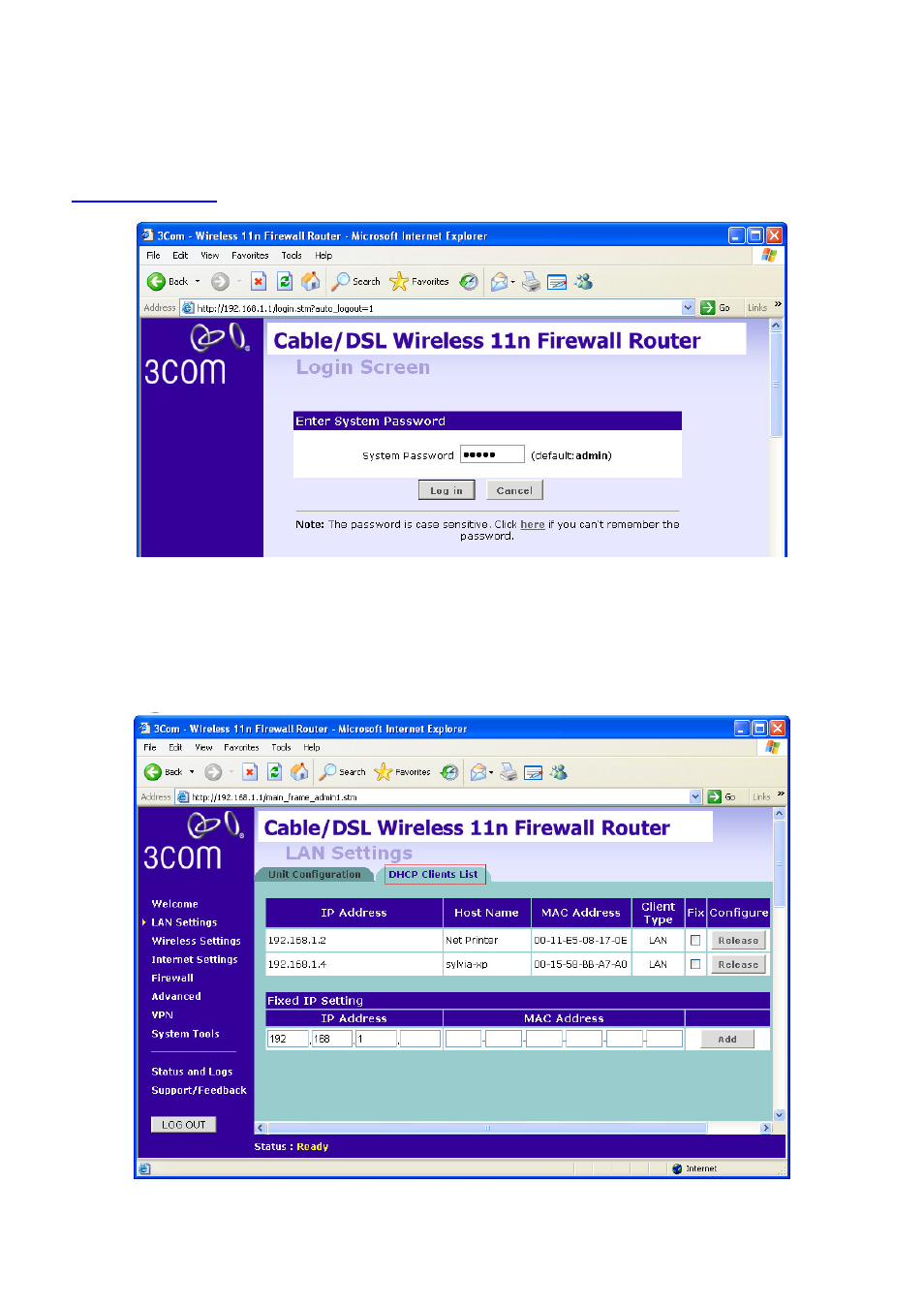

3. Search the IP address of the Router assigned to the printer. The following is an example of using
the 3COM WL-602 Router. Launch the web browser and enter the default IP address to open the
Router homepage (For example: The default IP address of the 3COM WL-602 Router is
http://192.168.1.1
)
When the printer is turned on, READY LED will blink. Wait for about 20 seconds for the system to get
ready.
4. Enter the user name and password (the default settings are “Admin”).
5. Click
Log in
to enter the main menu. Then click
LAN setting
to enter the system status menu.
6. Click
DHCP Clients List
to view the printer IP addresses which are assigned to the PC.
Note: When the printer obtains the assigned IP address, it is recommended to retain that IP
