Chapter 2 Hardware Installation
Chapter 2
CPU0/CPU1 Debug
R227 U19 C170 7 6
R227 U19 C170 7 6
JP9
JP8
1
3
2
1
3
2
2-3 On: Normal
(default)
1-2 On: Force JTAG by
pass of CPU

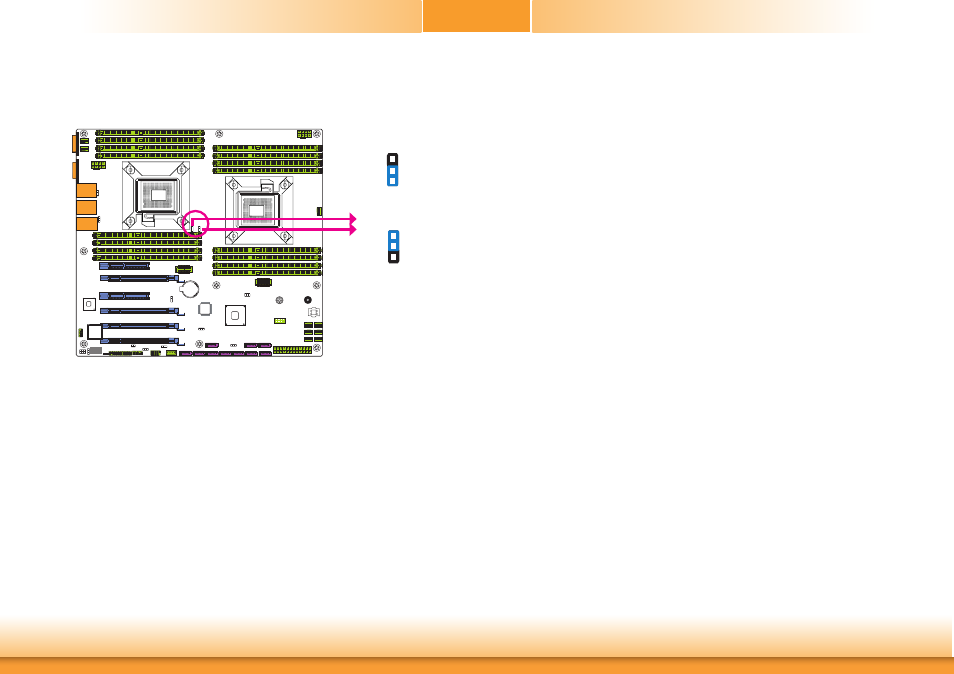

JP8 (for CPU1) and JP9 (for CPU0) allow you to debug the CPU procrssor whenever encounter-
ing problems.
