Installation

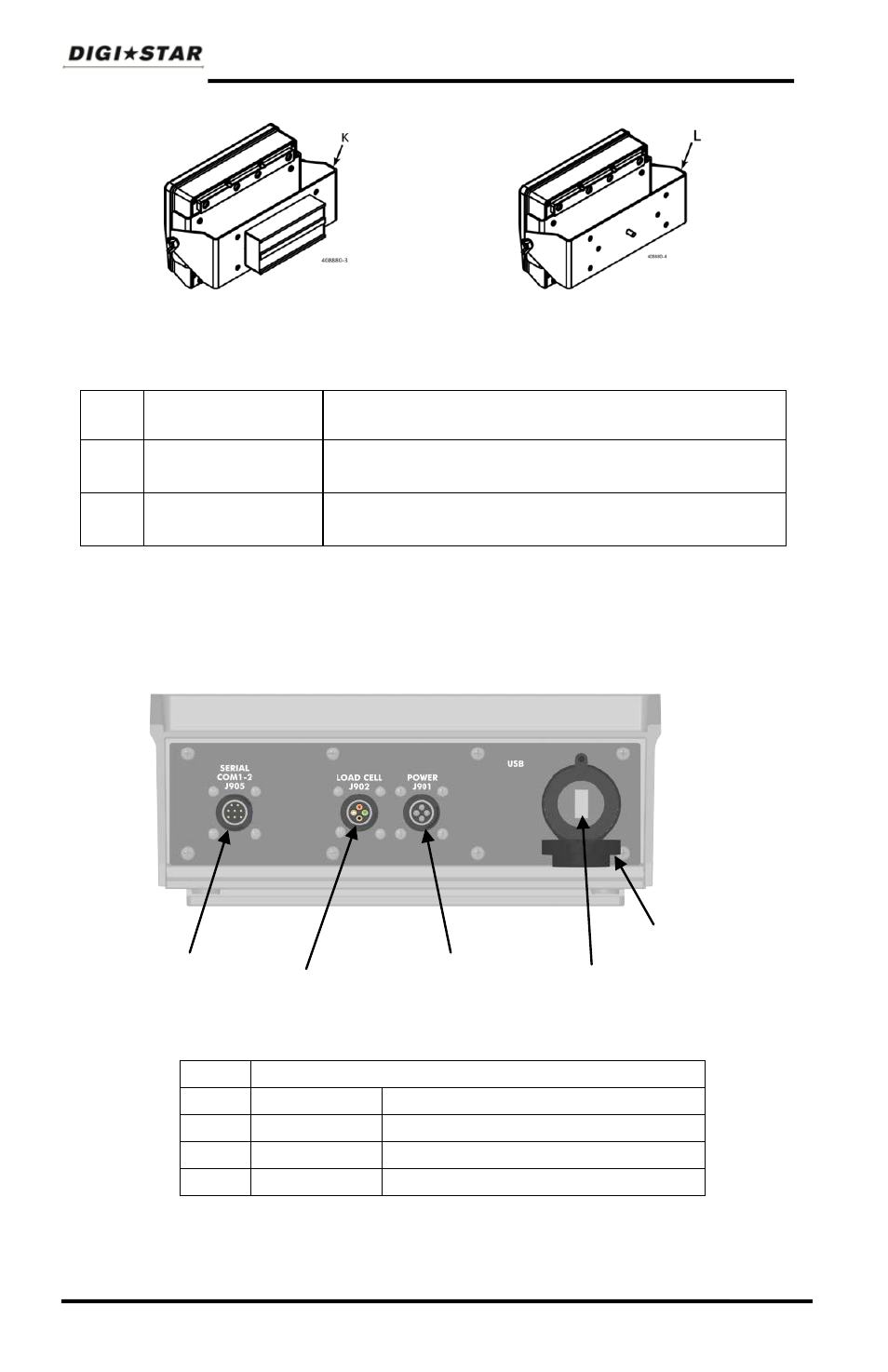

MAGNETIC SWIVEL MOUNT
KEY PART NUMBER
DESCRIPTION
K
408880
MOUNT FOR EZ 3 INDICATOR WITH
HARDWARE AND MAGNET
L
408828
MOUNT FOR EZ 3 INDICATOR WITH
HARDWARE WITHOUT MAGNET
Cable Connection
Bottom Panel Cable Connections
J-Box
Load Cell
Connection
Power Cord
Connection
Printer
or DDL
USB Port
Flash
Drive only
Make sure
door
snaps shut
Pin
To 12VDC Power Supply
1
Red
+Terminal
2
Black
-Terminal
3
Orange
Alarm Out
4
Blue
Remote Input
44
GT460 AutoLog
2
Operators Manual
D3804
