GAI-TRONICS
VoIP Telephone Configuration Guide Page 48 of 88

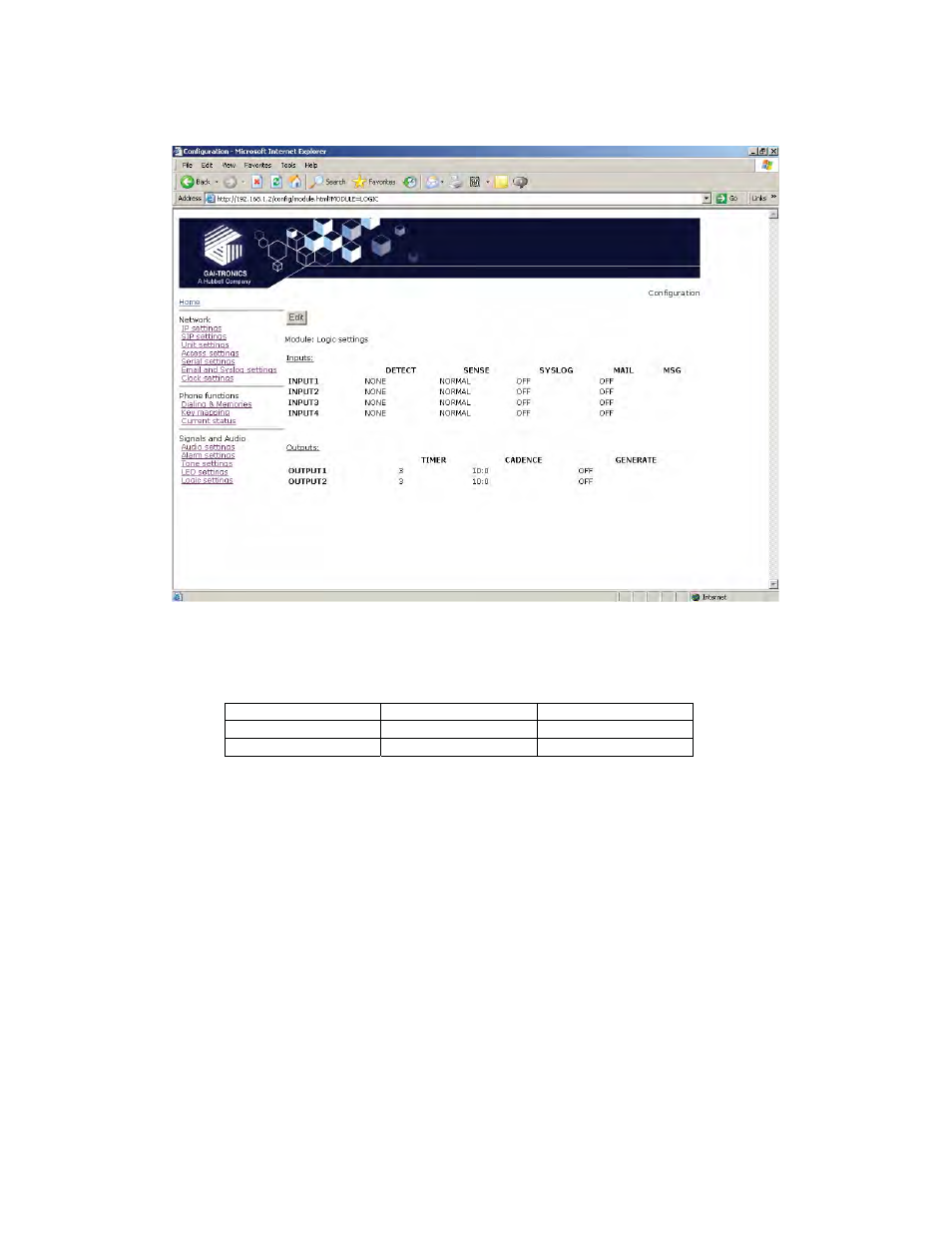

5.17 Logic settings
The Logic settings page sets the operation of the 4 auxiliary inputs and the 2 volt-free contact
outputs.
Inputs
The 4 auxiliary inputs are activated by connecting the relevant input terminal to a common
terminal via a volt-free contact. See
appropriate installation guide for connection details
and electrical limits. If the contact is open the input is normally deemed to be ON, and if the
contact is closed it is deemed to be OFF. The sense can be inverted, see below:
External contact SENSE NORMAL SENSE INVERT
Open ON OFF
Closed OFF ON
The auxiliary inputs can be configured to report their status to a remote site using two
methods: -
• Syslog output over TCP
• SMTP mail message
For each input, the following parameters can be set:
DETECT: Specifies if an input will report being set to its ON condition only (ON), its OFF
condition only (OFF), on either event (ON+OFF) or not at all (NONE). The ON and OFF
states are affected by the SENSE setting below.
SENSE: If set to NORMAL, a contact closure will report as OFF. If set to INVERT, a contact
closure will report as ON. Default is NORMAL
SYSLOG: enables or disables SYSLOG reporting for the selected input. Syslog settings are
on the IP setting page (section 5.3).
MAIL: enables or disables SMTP reporting for the selected input. SMTP settings are on the
Email settings page (section 5.8).
MSG: Replaces the default text message Aux_in <input_number> with the text entered
(maximum 40 characters). The status <on/off> is appended to the end of the text. If the MSG
value is blank, the default message is reinstated.
The message sent (for both mail and syslog reports), takes the form:
HOSTNAME COUNT TIME MSG ON/OFF
Where
