Trimmer
INSTALLATION
BEFORE UNCRATING:
Examine the crate for visible damage. If the crate
is damaged, the machine might be damaged. Notify
the carrier who delivered the machine.
UNCRATING THE MACHINE:
Carefully remove the machine from its container.
Lift the machine by grasping its strong framework.
Tugging on cables, covers, or other delicate com-
ponents could cause damage.
Examine the machine for damages incurred during
shipping. Do not install a damaged machine.
Notify the carrier immediately, and be sure to get
a signed copy of the Carrier Inspector's Report of
the damage incurred. Your service representative
will assist you in determining the cost of repairs.
ELECTRICAL POWER:
The power cord can be plugged into any 115V, 60
Hz, 1 Phase, 15 Amp circuit. The machine draws
less than 6 amps.
SAFETY INTERLOCK SYSTEM:
Connect the safety interlock system as follows:
1. Remove the back cover (see fig 3) from the
Bookletmaker.
2. Put the bolt through the washer of the safety
key assembly and screw the bolt half way into
the back cover of the Bookletmaker (see fig 4).
3. Install and securely tighten the nut onto the end
of the bolt (see fig 5). The bolt must only be
removeable by removing the nut first.
4. Install the back cover onto the Bookletmaker
(see fig 5).
WARNING
NEVER OPERATE THE TRIMMER
WITHOUT THE B2000
BOOKLETMAKER AND SAFETY
INTERLOCK SYSTEM CONNECTED.

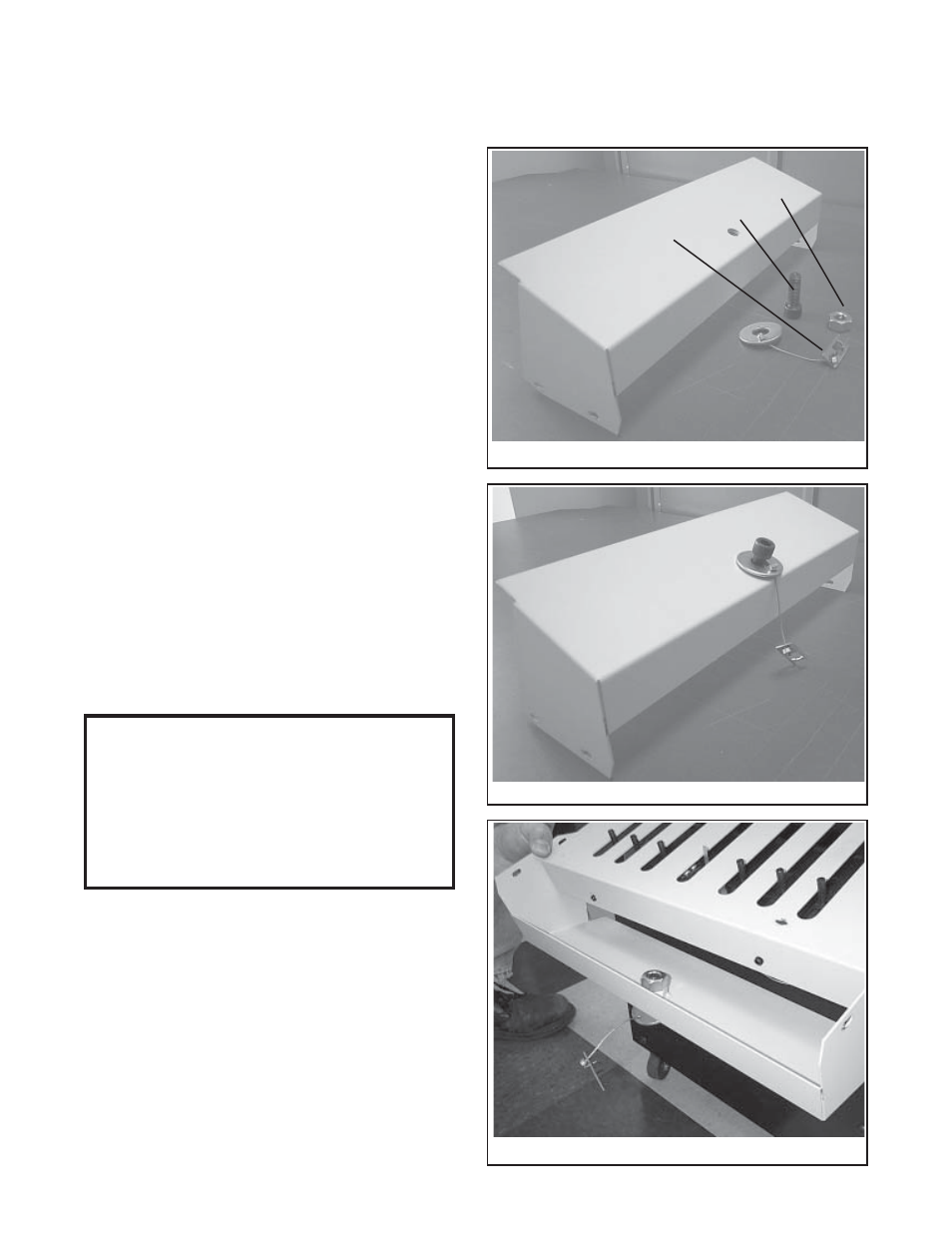

(Fig 3)
(Fig 4)
(Fig 5)
Back Cover
of Bookletmaker
CB145A Nut
CB379 Screw
RTM1327A Key
