3. Menu Operation DD35 Production Switcher
3 – 285 Operating Instructions – Rev. 16 / 10.2001

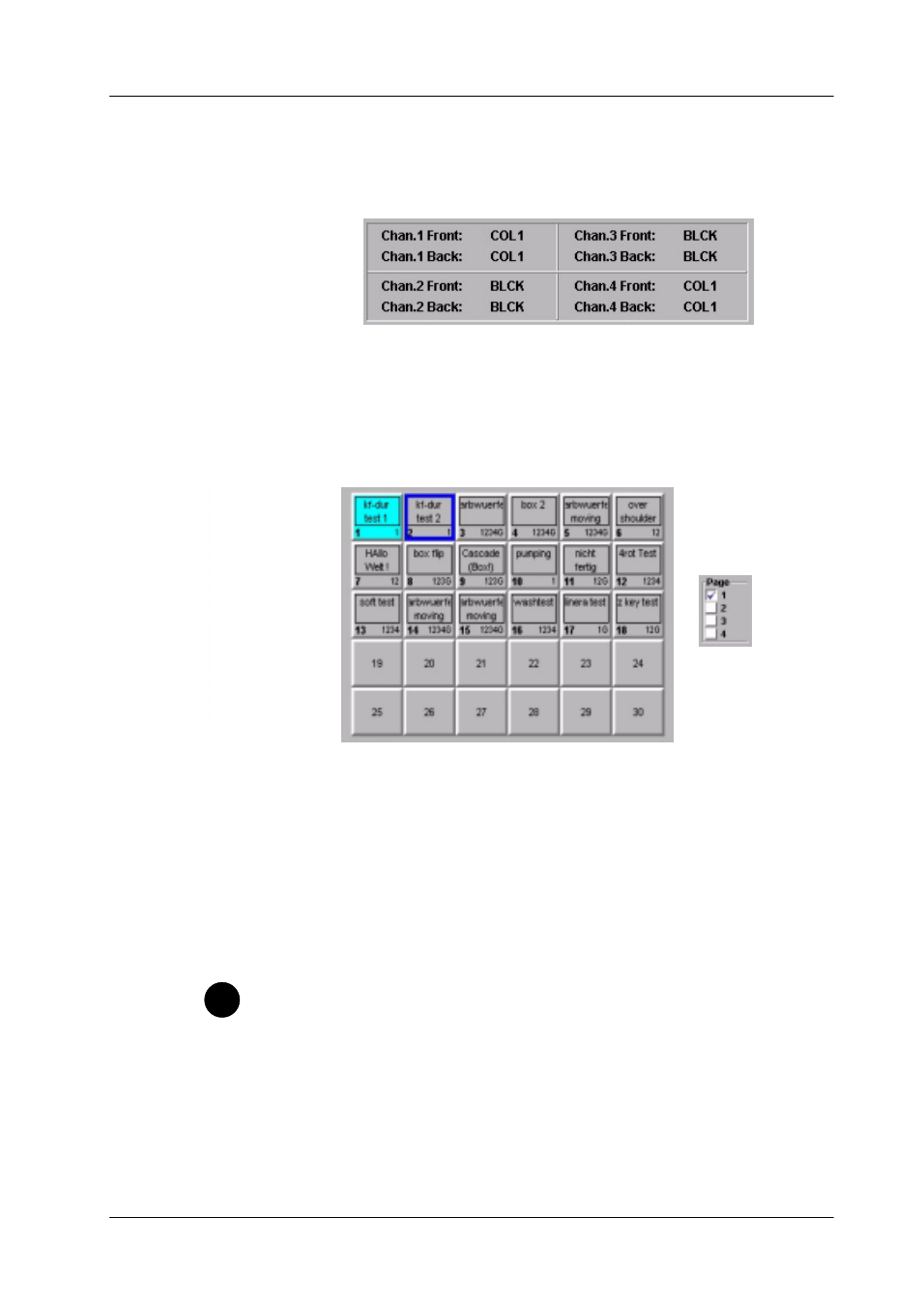

3.21.3.3 Inner Window
Input selection for the 4 FX processor channels, click on the according fields for
source selection:
The ”Front–Inputs” are also used as inputs for the associated channels of the ram–
recorder. The ”Back–Inputs” are used for the backside of the DVx channels.
Inner Window, middle part:
30 buttons for DVx effect selection (in total 120 effects on 4 pages)
In the bottom part per button you find an indication of the channels used in the ac-
cording effect.
To select an effect, first pre–select it (dark blue border) then press OK – or double
click an effect directly.
The selected effect (light blue background) can be controlled by the motion control
buttons or by the DVx digipot on the right side.
The effect selection can be learned in a macro.
Since you can run up to 4 DVx effects simultaneously, learning motion con-
trol commands in macros have to be done carefully.
Pressing the “Play” button while learning a macro, this macro will record a
play command for the first channel in the selected effect.
Example: the effect contains channel 2,3,4 – the macro will record the play
command for channel 2. This macro can be used to play any effect containing
at least channel 2, because a play command for one of the used channels will
play all used channels. So 4 macros is enough to play all effects.
Tip
