Kayak — User Manual
Section 5 — Kayak Menu Summaries
Wipe Pattern Number Code
The available wipe patterns and their assigned codes are included in the
figures below.
Codes are named according to ANSI/SMPTE 258M. Code names in paren-
thesis (xx) are GV pattern numbers.
Page 1 – Basic Pattern

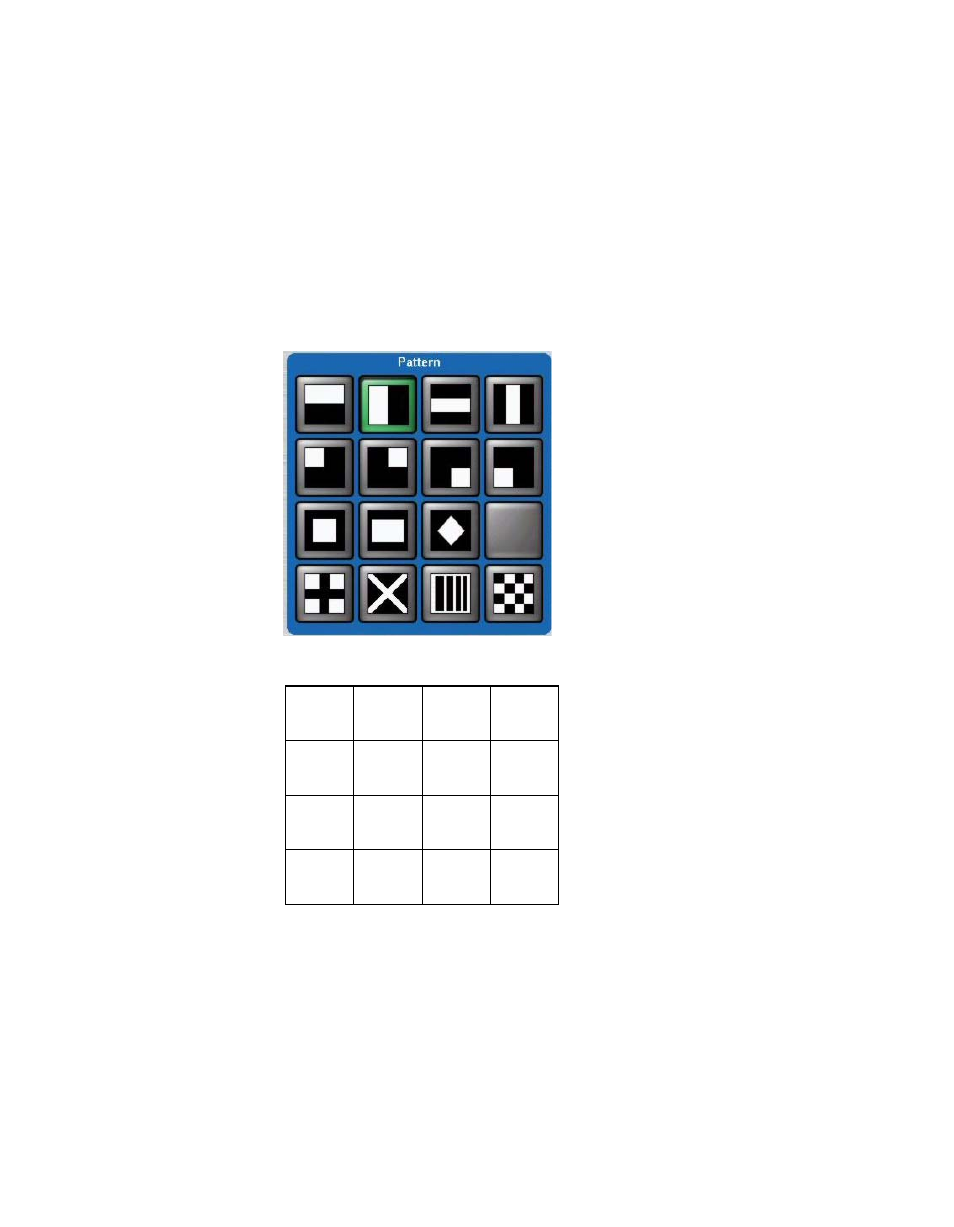

Figure 136. Page 1 – Basic Pattern
Table 10. Page 1 - Basic Pattern Respective Code Numbers
002
(0)
001
(10)
022
(20)
021
(30)
003
(1)
004
(11)
005
(21)
006
(31)
009
(23)
101
(37)
020
(33)
007
(24)
047
(17)
501
(46)
502
(58)
