80
Kayak — User Manual
Section 2 — Concepts

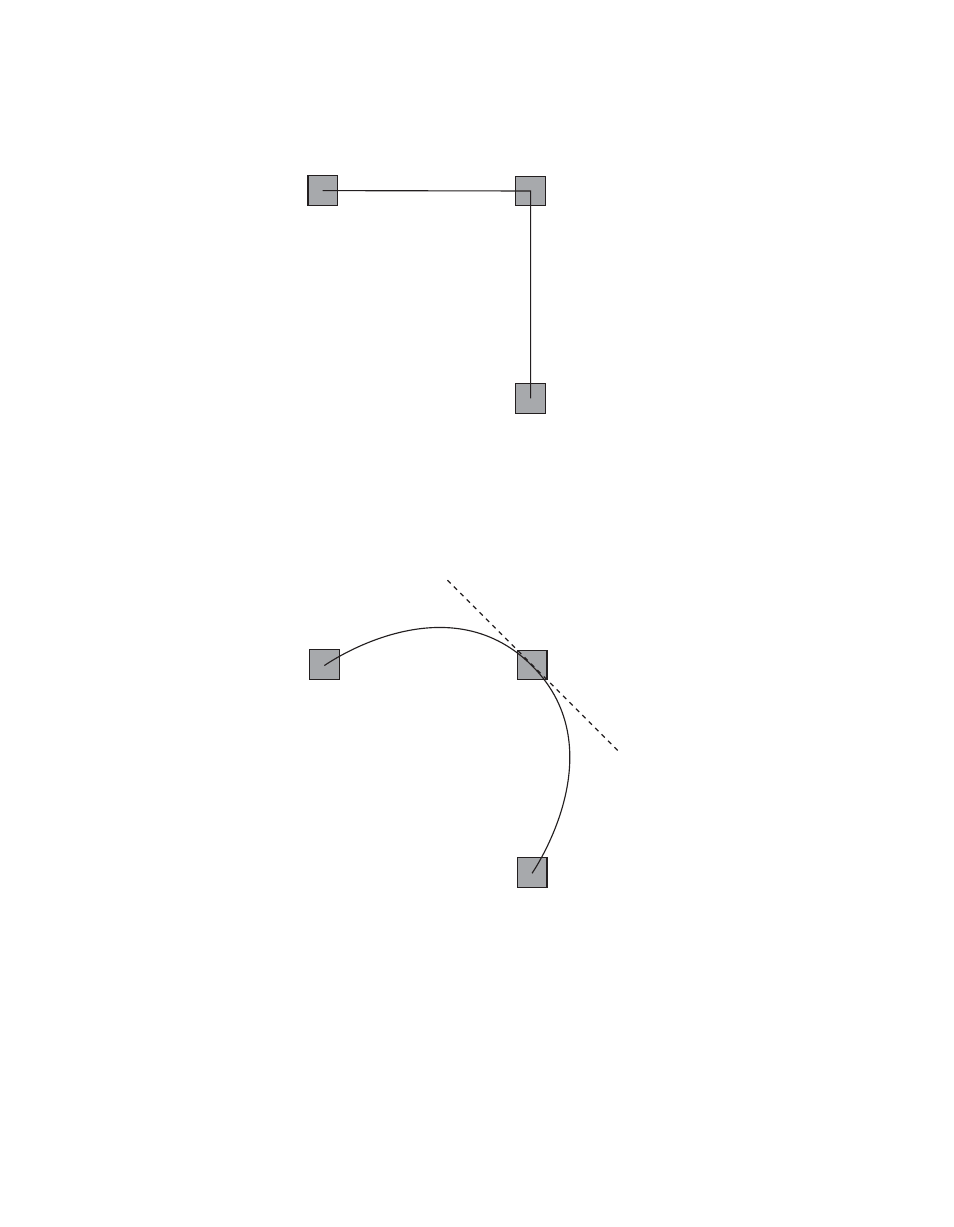

Figure 48. Tension Control Setting 1.0
In the example below, the TENSION control has been set to -1.0. This
lengthens the Tension vector, causing the path through the middle key-
frame to be longer and broader (
). The longer path will appear to
make the image speed up through KF2 as it travels from KF1 to KF3.
Figure 49. Tension Control Setting - 1.0
Tension = 1.0
KF1
KF2
KF3
No Tension Vector
0721_06_48_r0
Tension = -1.0
KF1
KF2
KF3
Tension
Vector
0721_06_49_r0
