Kayak — User Manual
271
DPM Menus
Phase
When Phase Lock is on, the Phase soft knob is available to control the static
location of the phase of the pattern.
When Phase Lock is off, the Speed soft knob is available to adjust the speed
of the pattern’s motion. Negative values can be entered to reverse the direc-
tion of the motion.
When data pad
CenterX, CenterY, Axi
s
is selected soft knob controls for
CenterX,
CenterY
and
Angle
are available to d
efine the angle and position.
Horiz.
or
Vertical Mode Pane
:
With an axis selected, you select the type of mod-
ulation to be applied to that axis (
Off, Pos, Size
or
Cancel
) in the Mode Type
pane.

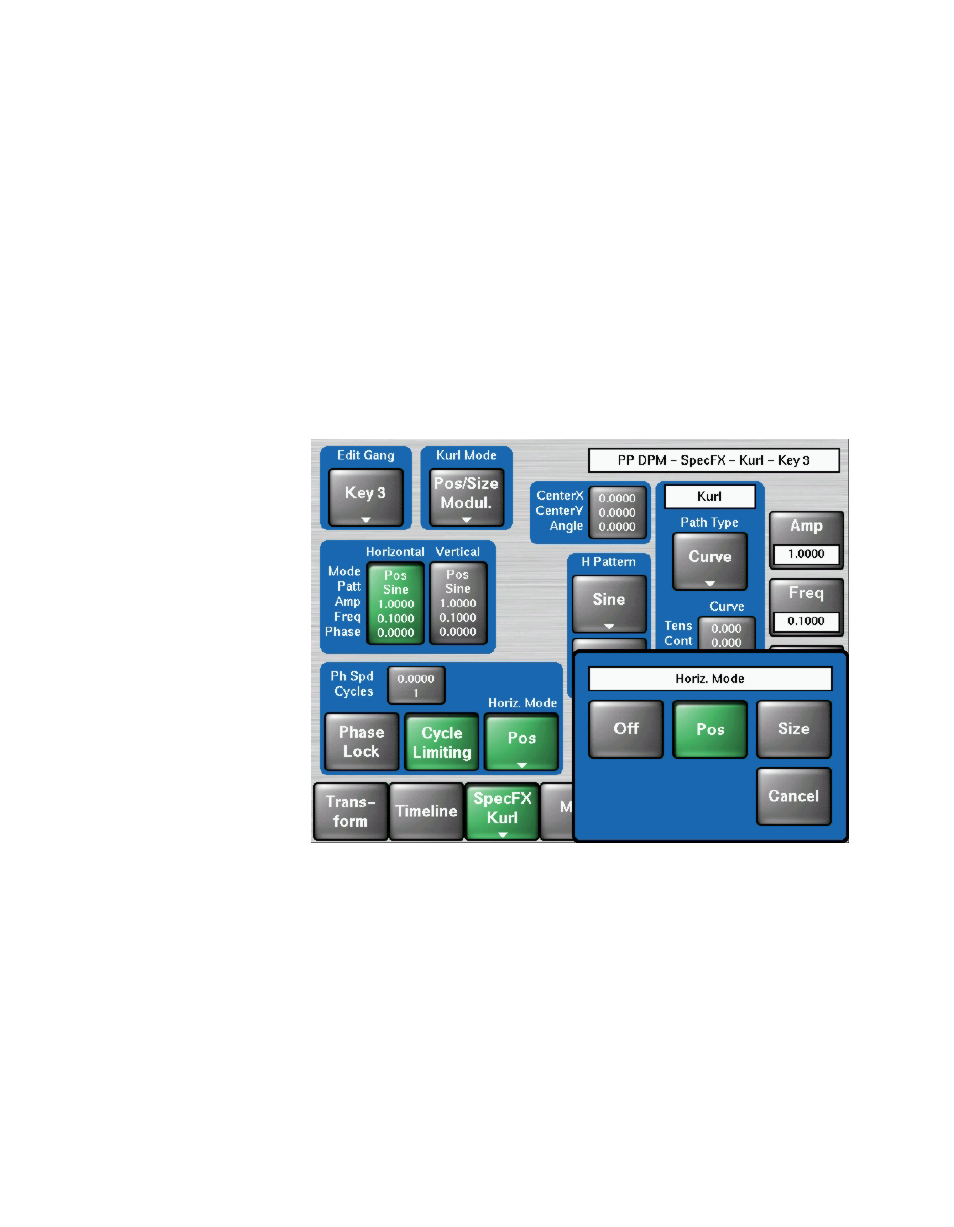

Figure 197. DPM – SpecFx – Kurl Menu (Horiz. Mode Selection)
When the
Vertical
axis is selected, you can choose to have that axis’ modula-
tion values match the horizontal values with the
V Mode follow H
button.
When
Size
is selected in the Mod Type pane, the CenterX/Y/Angle data
pad in the is active. When this data pad is selected soft knob controls for
CenterX, CenterY
, and
Angle
are available
