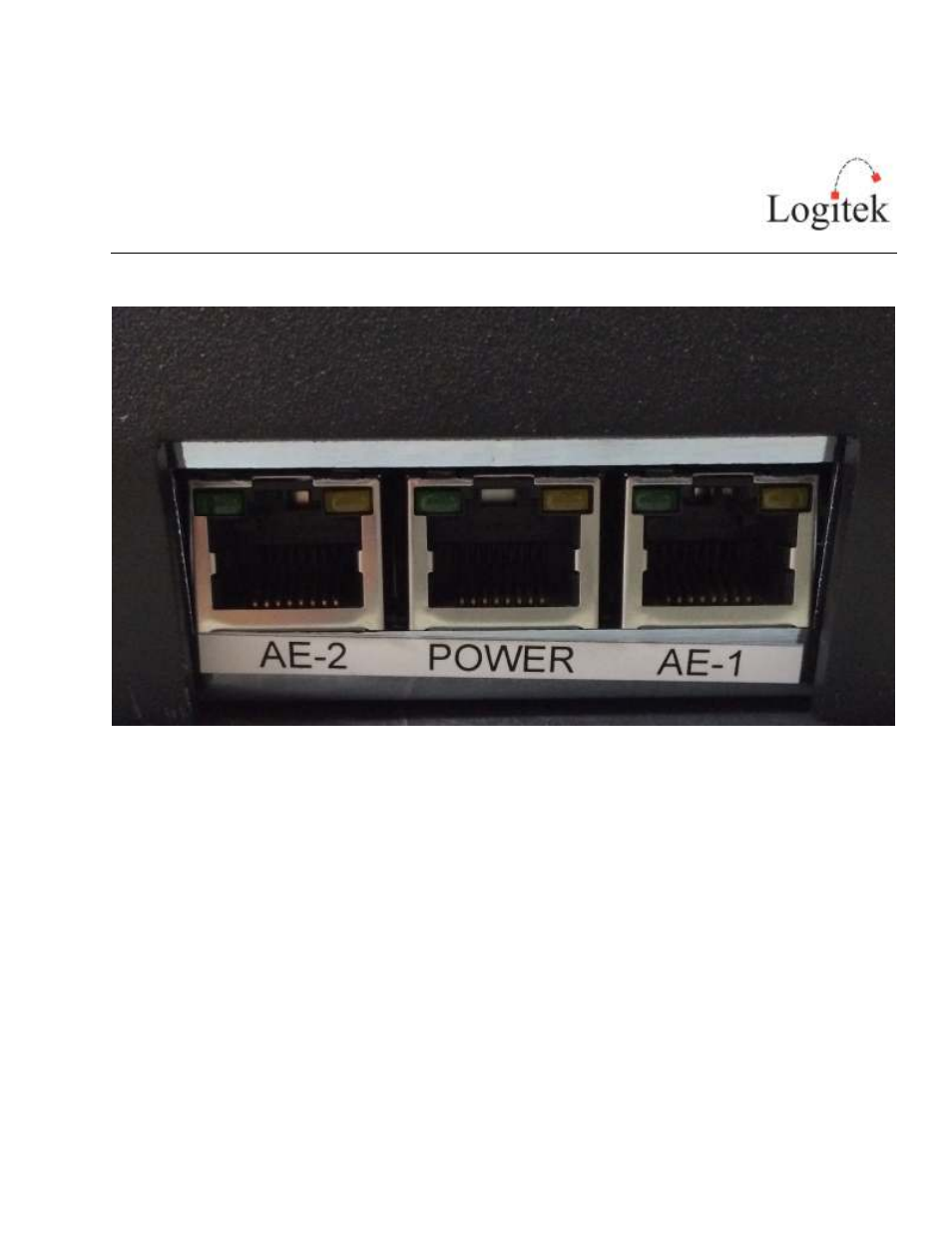

Connections
The Mosaic frame contains the control circuitry for the console. It connects to the Logitek
JetStream Router via a serial link. For redundancy, the control surface may be connected to two
JetStreams (main and backup)
IMPORTANT:
At the time of this writing, the redundant JetStream feature has not
been fully developed. The JetStream does not currently support this
planned feature, and software updates to both JetStream and console
may be necessary once this future feature is finished.
AE-1:This is the main data connection. This RJ-45 cable connects to the surface port on the primary
JetStream router or Audio Engine. If only one router is in use, this is the only data connection
needed.
POWER: This RJ-45 cable provides power from the Mosaic Power Supply.
