Connecting External Equipment
Connecting source equipment to a COMPOSITE IN connector requires changing the setting on the V-800HD. Use the procedure
described below to change the source from SDI to composite.

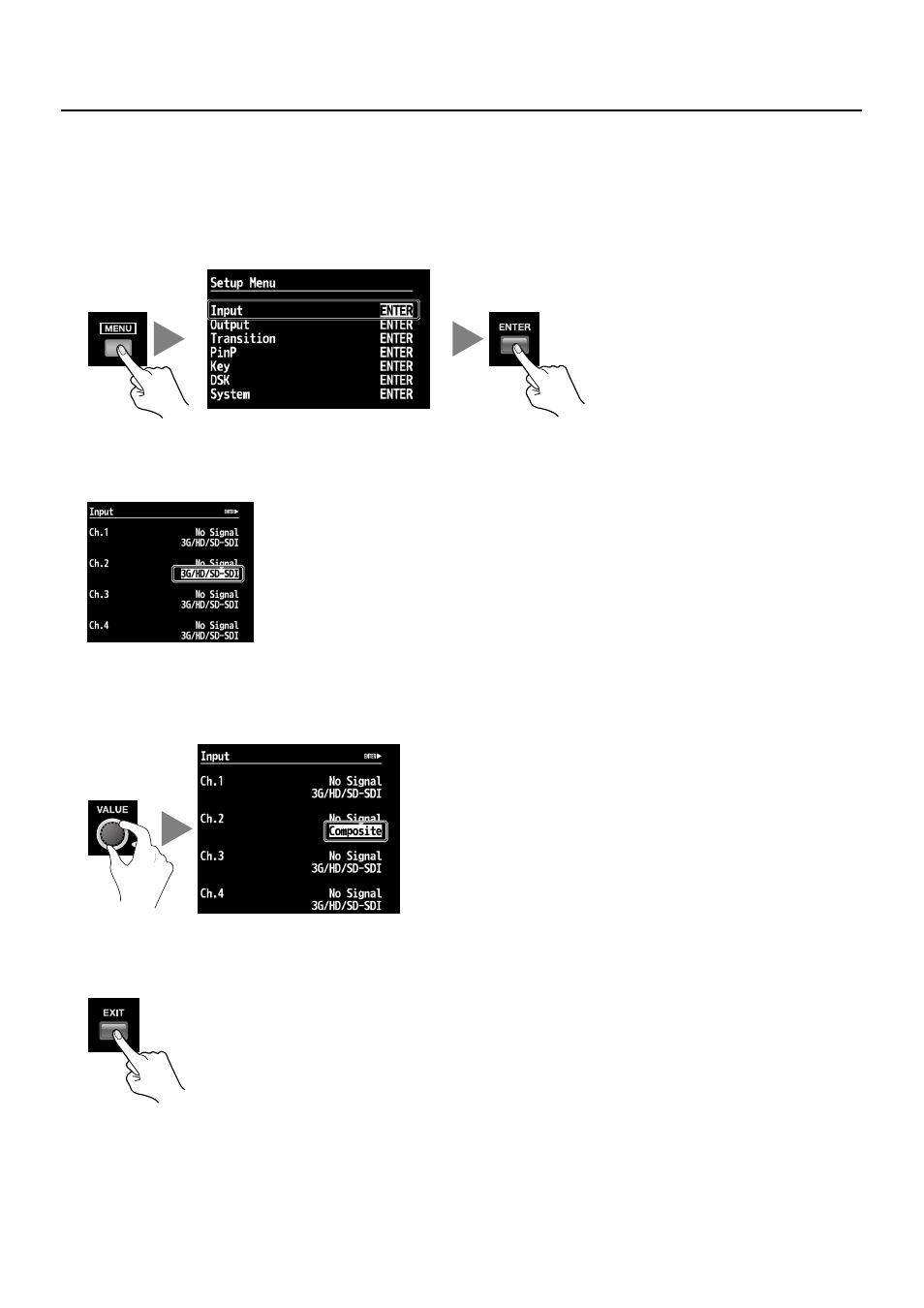

1. Display the Input menu.
Press the [MENU] button to display the menu. Use the [CURSOR] buttons to select [Input], then press the [ENTER] button to
display the Input menu.
fig.open-input-menu.eps
2. Select the channel.
Use the [CURSOR] buttons to select which input format you wish to use at this input channel.
fig.select-channel.eps
3. Change the assignment.
Turn the [VALUE] dial to change the setting to [Composite] or [3G/HD/SD-SDI], depending on which source type is plugged into
that input.
fig.change-assign.eps
4. Exit the menu.
Press the [EXIT] button several times to quit the menu.
fig.close-menu.eps
