bridge and furthest bridge that is connected to it
y RTS Threshold
This function uses for the RTS/CTS handshake boundary. When a packet size is greater than the RTS
threshold, the RTS/CTS handshaking is performed

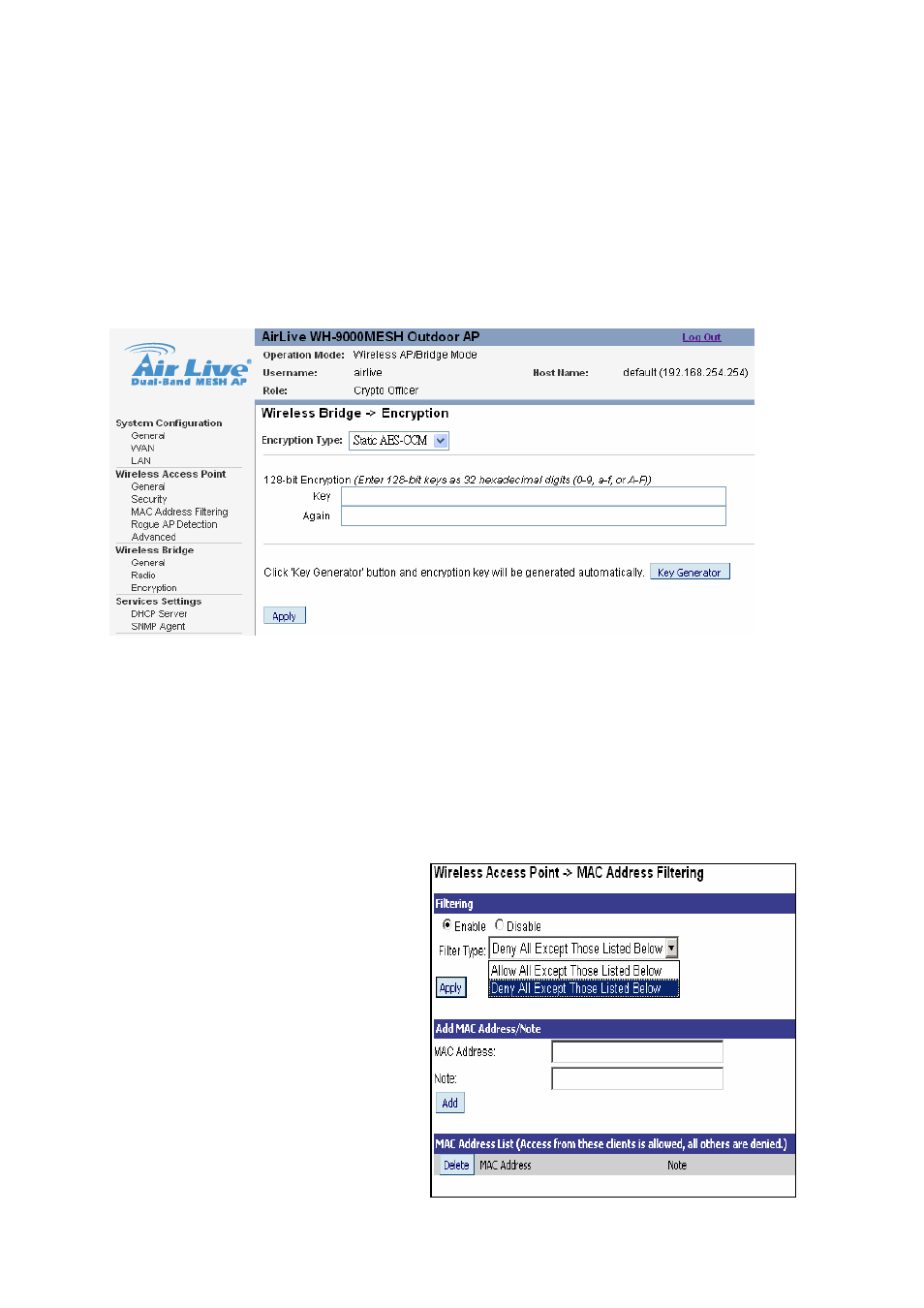

8.3.3 Wireless Bridge – Encryption Screen
Click the entry on the left hand navigation panel for Wireless Bridge - Encryption when bridge mode set
as Auto Bridging, directs you to this page.
This page is used to configure static encryption keys for the wireless bridge. On this screen, you can
either select Off- No Data Encryption or Static AES Key of 128 bit. The “Key generator” function
generates a randomized encryption key of the appropriate length automatically. You can use this
function to get a randomized key number from one device and use it to all of other devices those are on
the same bridge network. The encryption key that you use on this screen must be the same for any
bridge connect to your bridging network in order for communication to occur.
8.3.4 Wireless Bridge – MAC Address filtering
The factory default for MAC Address filtering
is Disabled. If you enable MAC Address
filtering, you should also set the toggle for
Filter Type. This works as follows:
y If Filtering is enabled and Filter Type is
“Deny AII Except Those Listed
Below” , only those devices equipped
with the authorized MAC addresses will
be able to communicate with the AP. In
this case, input the MAC addresses of
all the PC cards that will be authorized
to access this AP.
AirLive WH-9000-MESH User’s Manual 45
