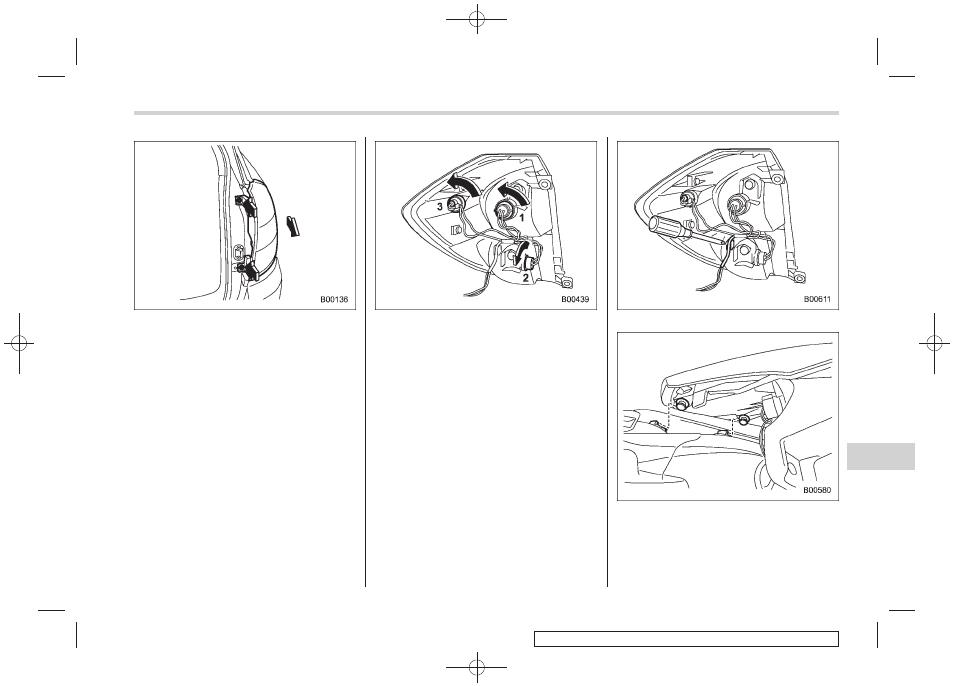

3. Remove the upper and lower screws.
Then, straightly slide the rear combination
light assembly rearward and remove it
from the vehicle. 1) Brake/tail light
2) Rear turn signal light
3) Rear side marker light
4. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
5. Pull the bulb out of the bulb holder and
replace it with a new one.
6. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
7. Insert the harness into the holder.
8. Reinstall the rear combination light
assembly by sliding the two-pronged part
of the combination light assembly securely
to each holder of the vehicle side.
