20. Relocate the spark plug wire retainer by drilling a 17/64-inch hole across from an existing
hole in the bracket (Fig 29, arrow), and move the bracket forward. It will now be secured by
only two factory bolts. Fig 30 shows the completed spark plug wire retaining bracket in place.
21. To provide clearance for the washer bottle, modify the driver’s side radiator support
bracket by cutting a notch in it as shown in Fig 31
22. Relocate the coolant reservoir by widening the notches in the plastic cover and installing
the Paxton-supplied aluminum relocation tabs using the stock hardware.(Fig 31, arrows) This
will move the reservoir over one inch towards the driver’s side. Install the thick round spacers
on the recut reservoir bracket. Reinstall the reservoir using the stock nut on the rear notch
and the supplied hardware on the front notches.
23. From under the vehicle, remove the two 8mm head bolts securing the coolant reservoir
support rod. Relocate the support rod by moving it one bolt hole towards the driver’s side
and secure with the original bolt. Using a 1/4” drill bit, drill through the remaining mounting
hole and secure with the supplied nut, bolt and washers. (FIG 32) You can gain access to the
hole through a slot in the body sheet metal directly above the hole you drilled.Slide the 3/8”
thick round aluminum spacer onto the threaded portion of the support rod. Reinstall the
reservoir.
COPYRIGHT 2000 PAXTON AUTOMOTIVE PAGE 9
ASSEMBLY MANUAL for the
1996-98 MUSTANG COBRA
P/N 4809609

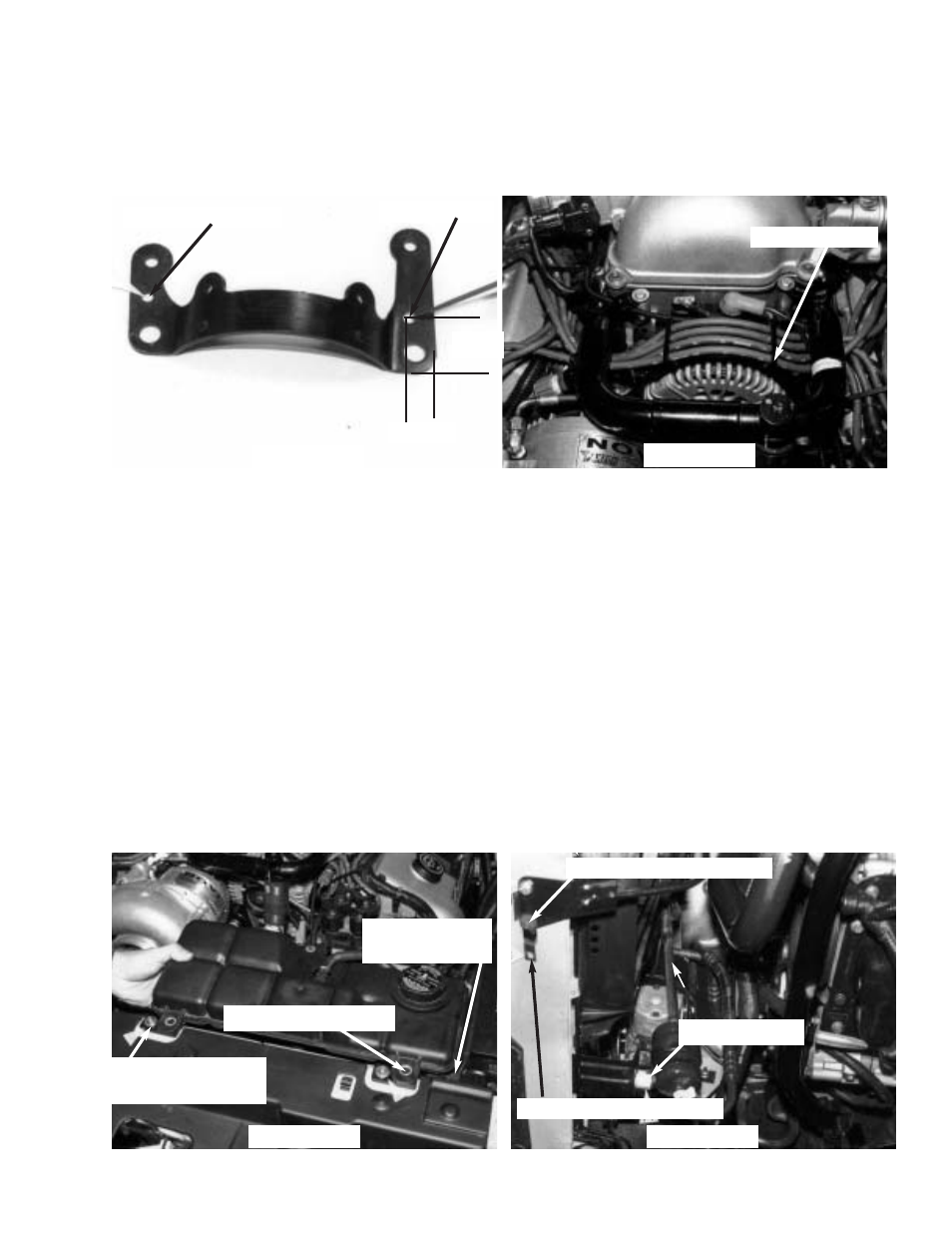

FIG 29 FIG 30
